Headlight Removal and Installation

HEADLIGHT REMOVAL AND INSTALLATION

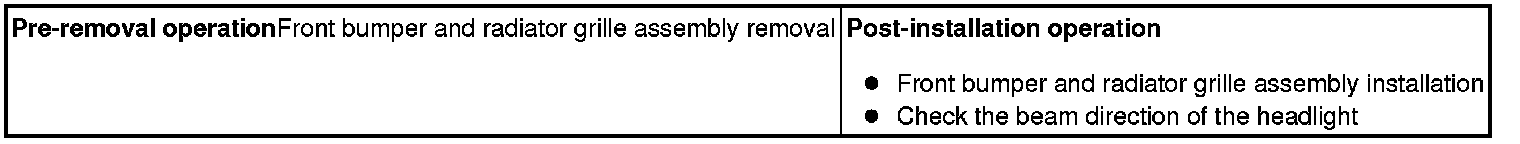

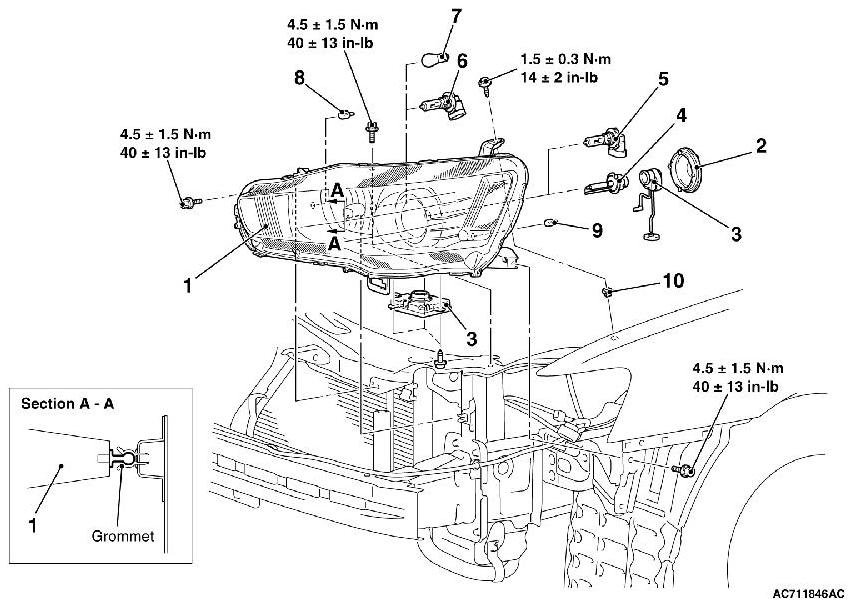

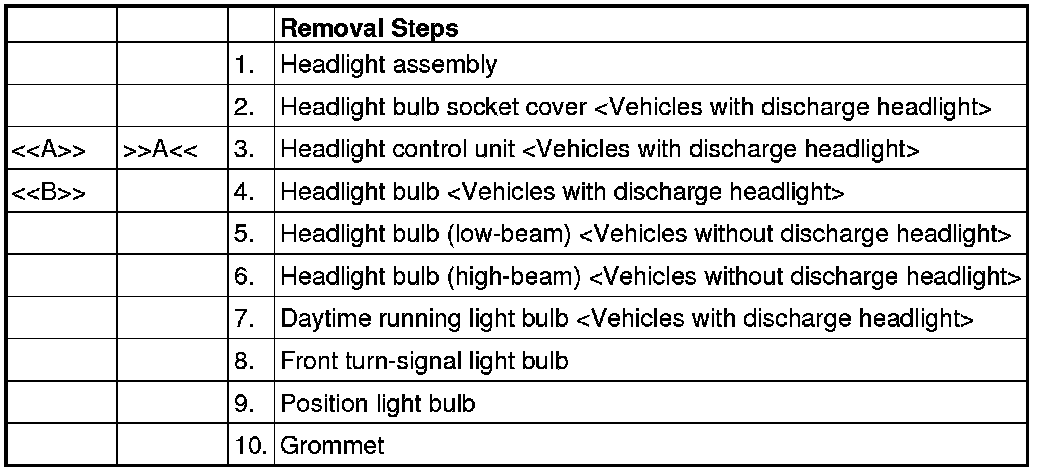

REMOVAL SERVICE POINTS

[[A]] HEADLIGHT CONTROL UNIT (HARNESS) REMOVAL [VEHICLES WITH DISCHARGE HEADLIGHT]

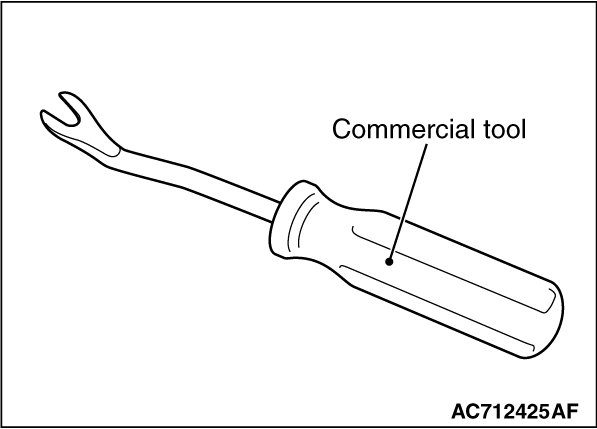

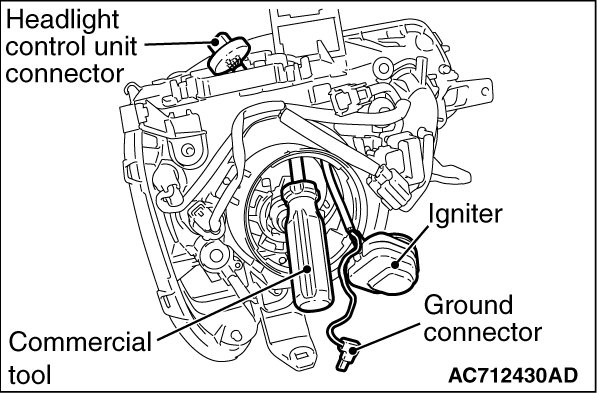

1. As shown in the figure, use the commercial tool to remove it.





2. To insert the tool available in the market into the headlight assembly from the opening at the ignitor side, firstly remove the headlight control unit, the socket cover, the ignitor and the ground connector.

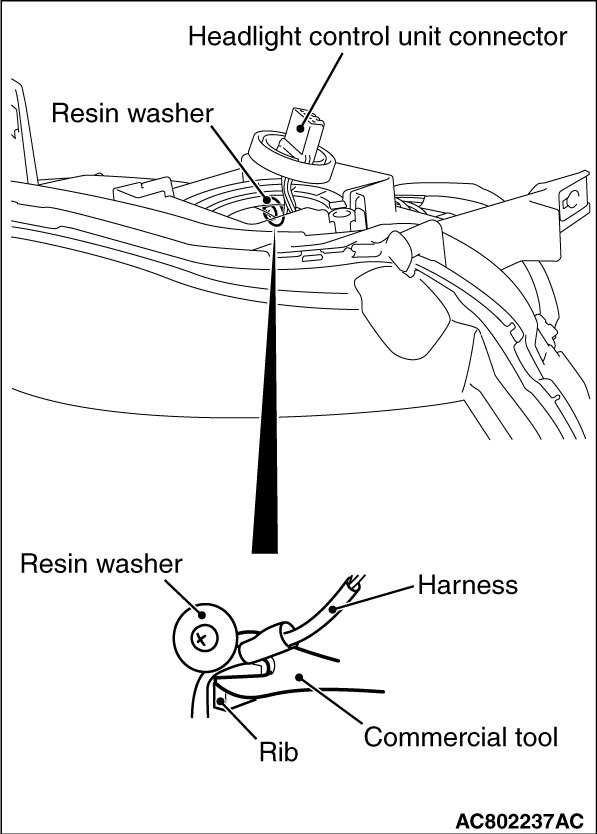

3. Using the commercial tool, make the resin washer sag to push up the harness above the resin washer.

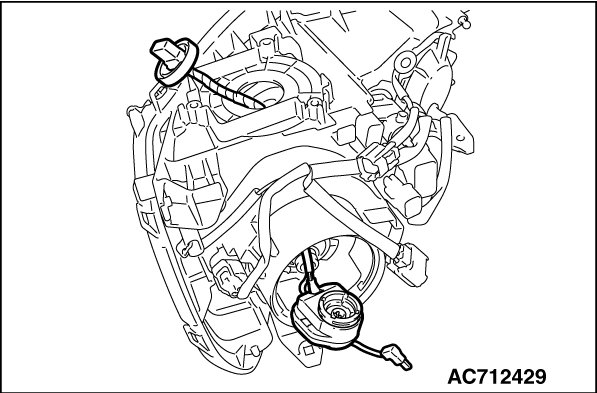

4. Pull out the harness from the headlight assembly.

[[B]] HEADLIGHT BULB REMOVAL [VEHICLES WITH DISCHARGE HEADLIGHT]

CAUTION:
Do not touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, immediately clean it with alcohol or thinner. After drying completely, install the bulb.

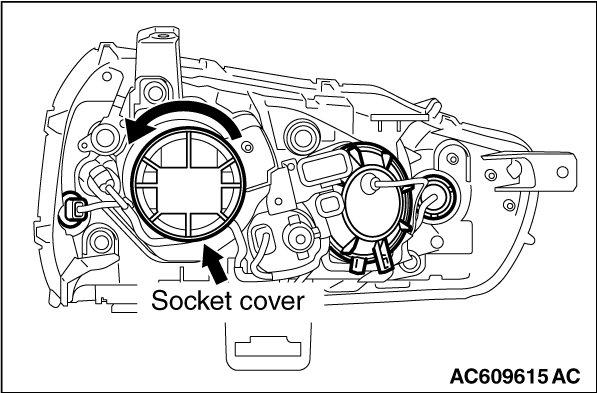

1. Twist the socket cover to remove.

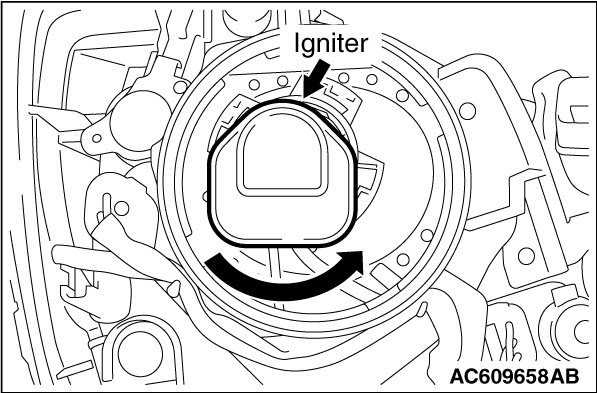

2. Disconnect the igniter.

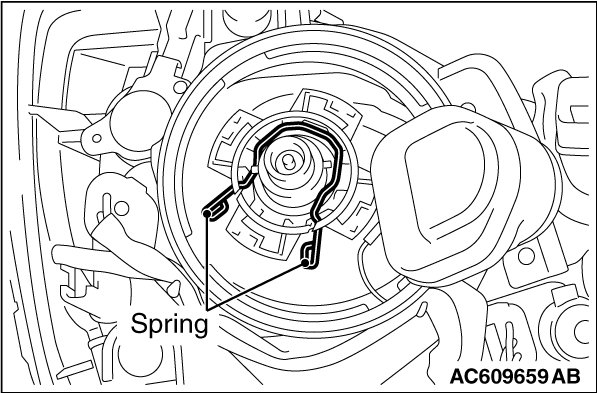

3. Release the bulb securing spring, and remove the bulb.

INSTALLATION SERVICE POINT

]]A[[ HEADLIGHT CONTROL UNIT INSTALLATION [VEHICLES WITH DISCHARGE HEADLIGHT]

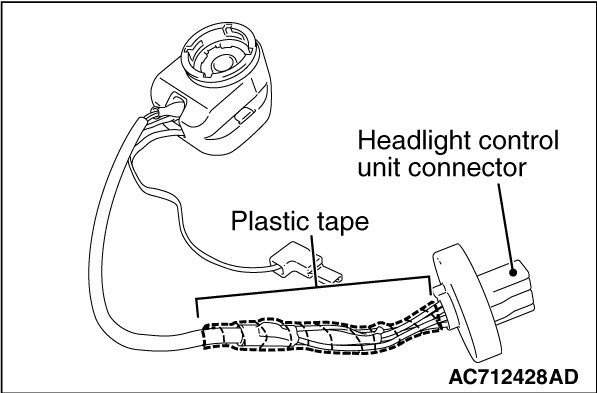

1. As shown in the figure, doubly wrap the portion in the vinyl tape, from the headlight control unit connector root to the point where the harness separation is hidden.





2. Install the harness to the headlight assembly. At that time, fitting the harness into the resin washer is unnecessary.
