Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Switch >> Testing and Inspection

Headlamp Alignment Switch: Testing and Inspection

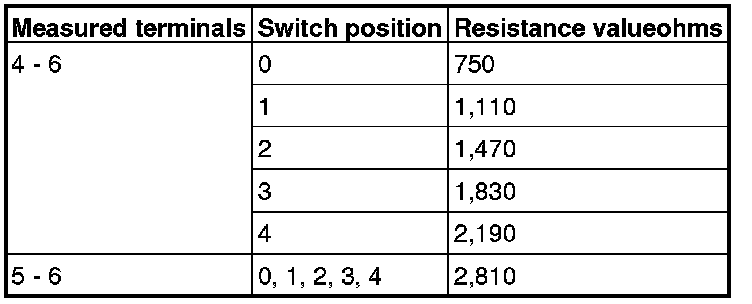

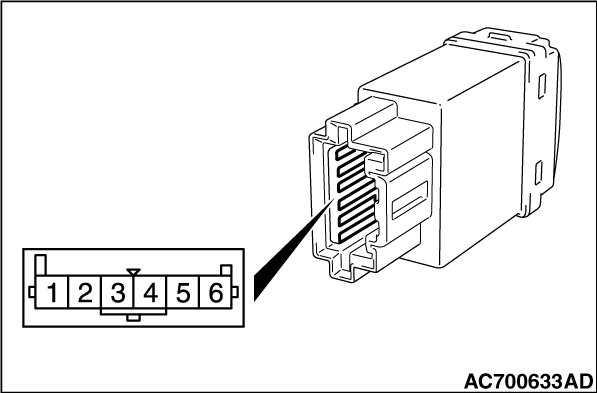

HEADLIGHT LEVELING SWITCH CHECK [VEHICLES WITH HEADLIGHT MANUAL LEVELING SYSTEM]
