Headlamp: Description and Operation

GENERAL INFORMATION

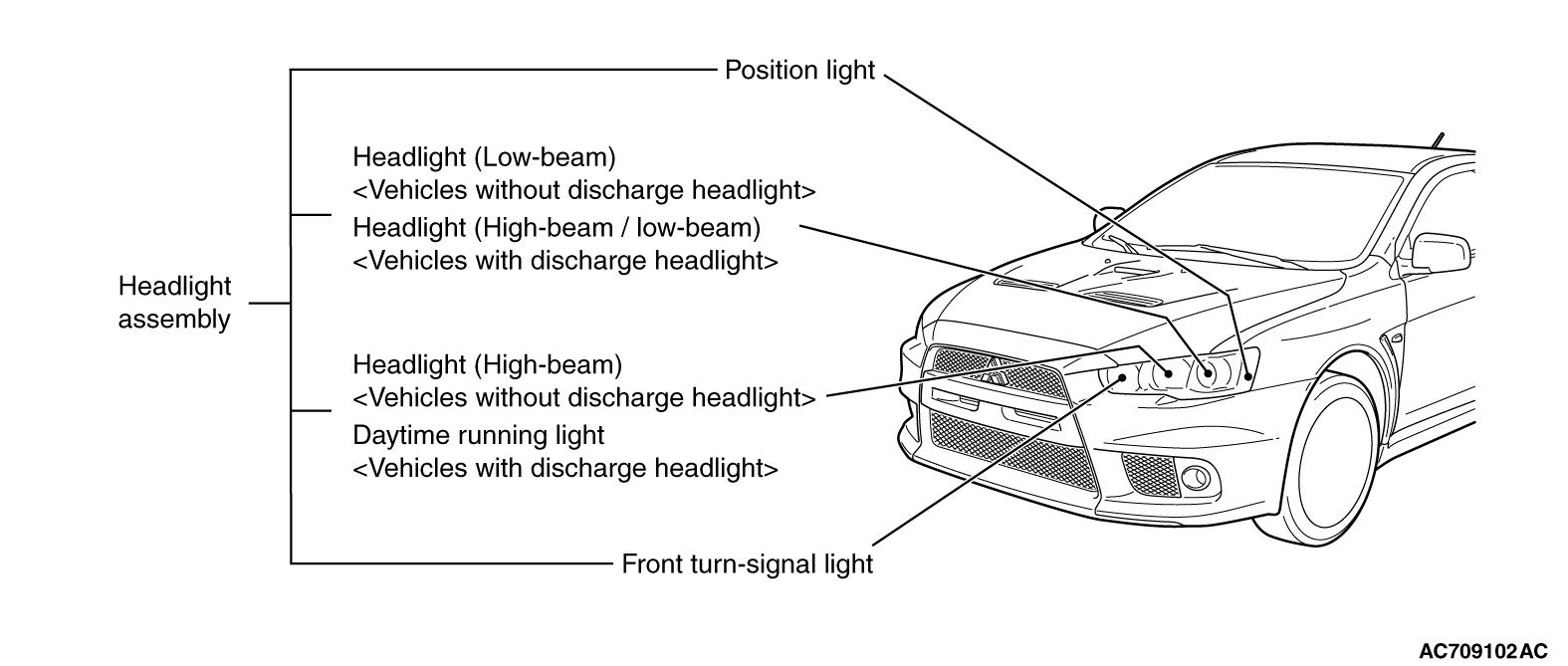

- As for headlight assembly, a type with halogen bulbs for the high-beam and low-beam and a type with a discharge bulb for both high-beam and low-beam are established.
- The halogen bulb type headlight assembly employs the four-light type integrated with the headlight (low-beam), headlight (high-beam), front turn-signal light, and position light. The dimmed headlight (low-beam) is also used as a daytime running light.
- The discharge bulb type headlight assembly employs the two-light type integrated with the projector type headlight (low-beam/high-beam), daytime running light, front turn-signal light, and position light, and the headlight manual leveling system are adopted. The switching of headlight (low-beam/high-beam) is performed by the driving of light-shield in the projector unit using the signal from lighting switch.
