Fog/Driving Lamp Bulb: Service and Repair

FRONT FOG LIGHT BULB REPLACEMENT

CAUTION:
Don't touch the bulb surface with bare hands or dirty gloves. If the bulb surface (glass part) gets dirty, clean it with alcohol or thinner immediately and dry well, and then install it.

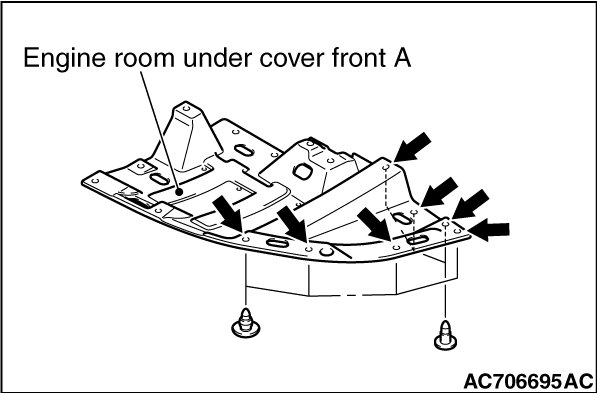

1. Remove the assembling clip of engine room under cover front A shown in the figure, and turn up the engine room under cover front A.

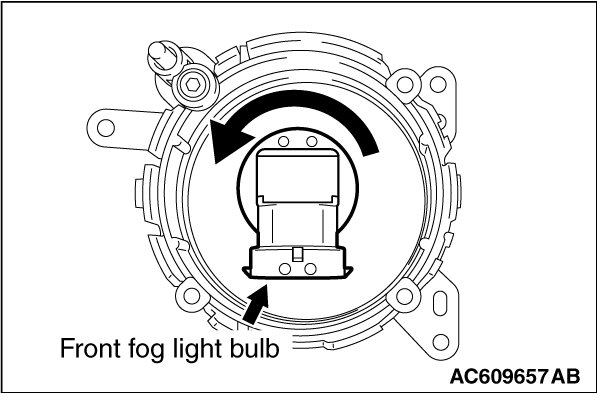

2. Disconnect the connector and withdraw the bulb.
