Inspection Procedure 3
Inspection Procedure 3: The luggage compartment light does not illuminate normally.
CAUTION:
Whenever the ECU is replaced, ensure that the power supply circuit, the ground circuit and the communication circuit are normal.
TROUBLE JUDGMENT
The ETACS-ECU illuminates and extinguishes the luggage compartment light in accordance with the input signals from trunk lid latch switch.
TECHNICAL DESCRIPTION (COMMENT)
If this does not work normally, the trunk lid latch switch input circuit, luggage compartment light, or ETACS-ECU may have a problem.
TROUBLESHOOTING HINTS
- Malfunction of trunk lid latch assembly
- Malfunction of luggage compartment light
- Malfunction of the ETACS-ECU
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool MB991958, read the diagnostic trouble code.
(1)
CAUTION:
To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
Connect scan tool MB991958. Refer to "How to connect scan tool (M.U.T.-III) Reading and Clearing Diagnostic Trouble Codes."
(2)Turn the ignition switch to the "ON" position.
(3)Check whether the ETACS-ECU related DTC is set.
(4)Turn the ignition switch to the "LOCK" (OFF) position.
Q. Is the DTC set?
YES Diagnose the ETACS-ECU. Refer to ETACS, Diagnosis Electronic Time and Alarm Control System (ETACS).
NO Go to Step 2.
STEP 2. Using scan tool MB991958, check data list.
Use the ETACS-ECU service data to check the signal related to the operation of luggage compartment light.
- Open the trunk lid.
Q. Does scan tool MB991958 display the item "Trunk/gate trunk ajar switch" as normal condition?
YES : (Normal condition is displayed.) Go to Step 3.
NO : (Normal condition is not displayed.) Troubleshoot the ETACS-ECU. Refer to ETACS, Diagnosis, Input signal chart Symptom Chart.

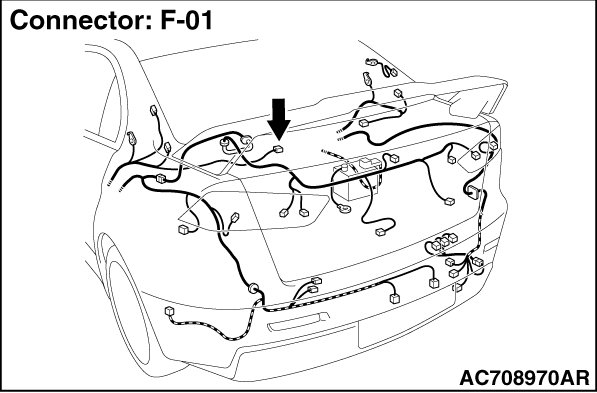

STEP 3. Check luggage compartment light connector F-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q. Is luggage compartment light connector F-01 in good condition?
YES Go to Step 4.
NO Repair or replace the damaged component(s). Harness Connector Inspection.
STEP 4. Luggage compartment light bulb check
Check that the luggage compartment light bulb is normal.
Q. Is luggage compartment light bulb normal?
YES Go to Step 5.
NO Replace the luggage compartment light bulb.
STEP 5. Check ETACS-ECU connector C-311 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q. Is ETACS-ECU connectors C-311 in good condition?
YES Go to Step 6.
NO Repair or replace the damaged component(s). Harness Connector Inspection.

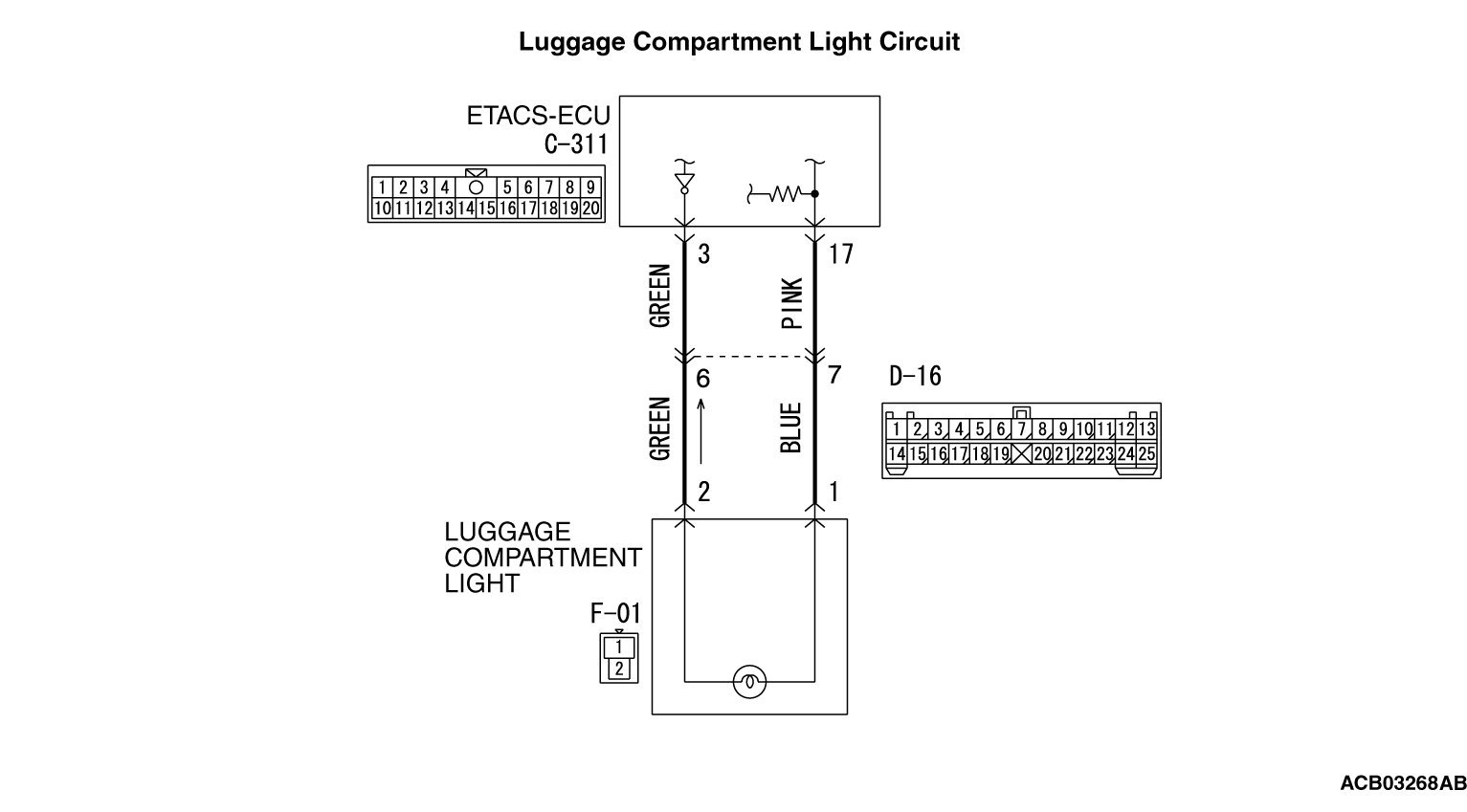

STEP 6. Check the wiring harness between luggage compartment light connector F-01 (terminal 1, 2) and ETACS-ECU connector C-311 (terminal 17, 3).
- Check the line for open circuit.
NOTE:
Also check intermediate connector D-16 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector D-16 is damaged, repair or replace the connector as described in Harness Connector Inspection Harness Connector Inspection.
Q. Is wiring harness between luggage compartment light connector F-01 (terminal 1, 2) and ETACS-ECU connector C-311 (terminal 17, 3) in good condition?
YES Go to Step 7.
NO The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary.
STEP 7. Retest the system
Check that the luggage compartment light illuminates and extinguishes normally.
Q. Do the trunk room work normal?
YES The trouble can be an intermittent malfunction How to Cope With Intermittent Malfunctions).
NO Replace the ETACS-ECU.
