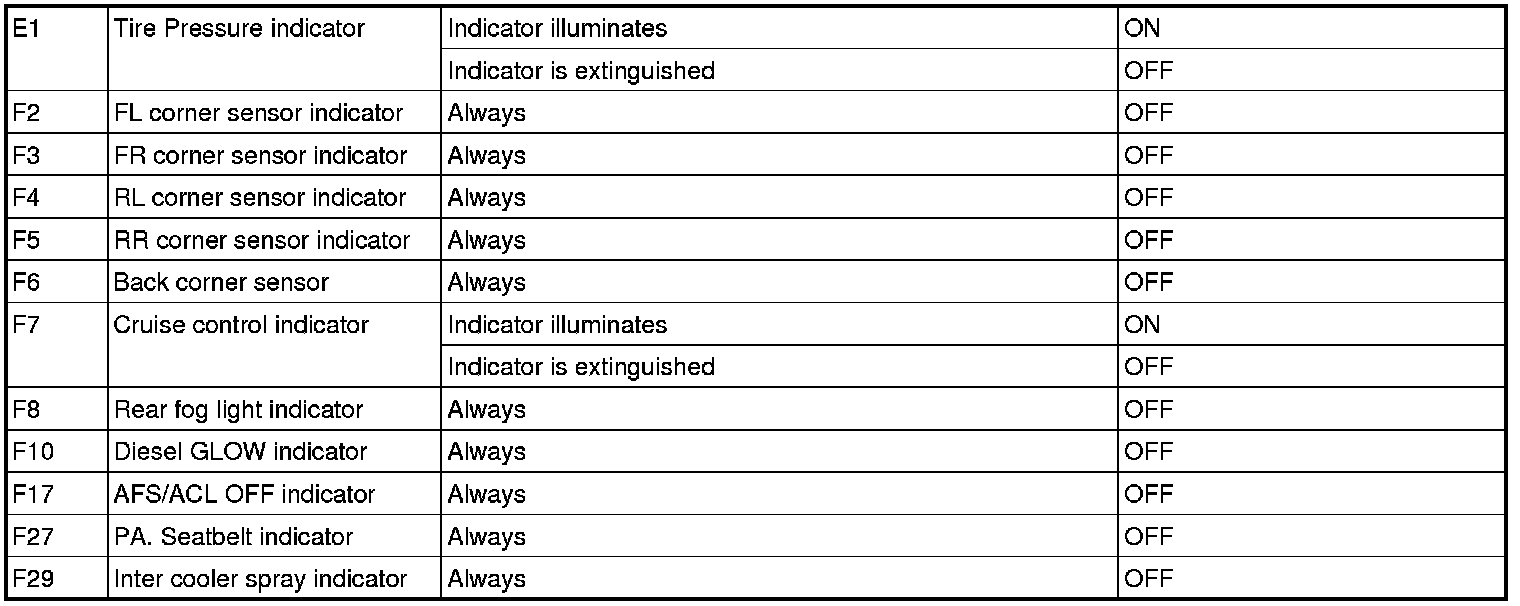

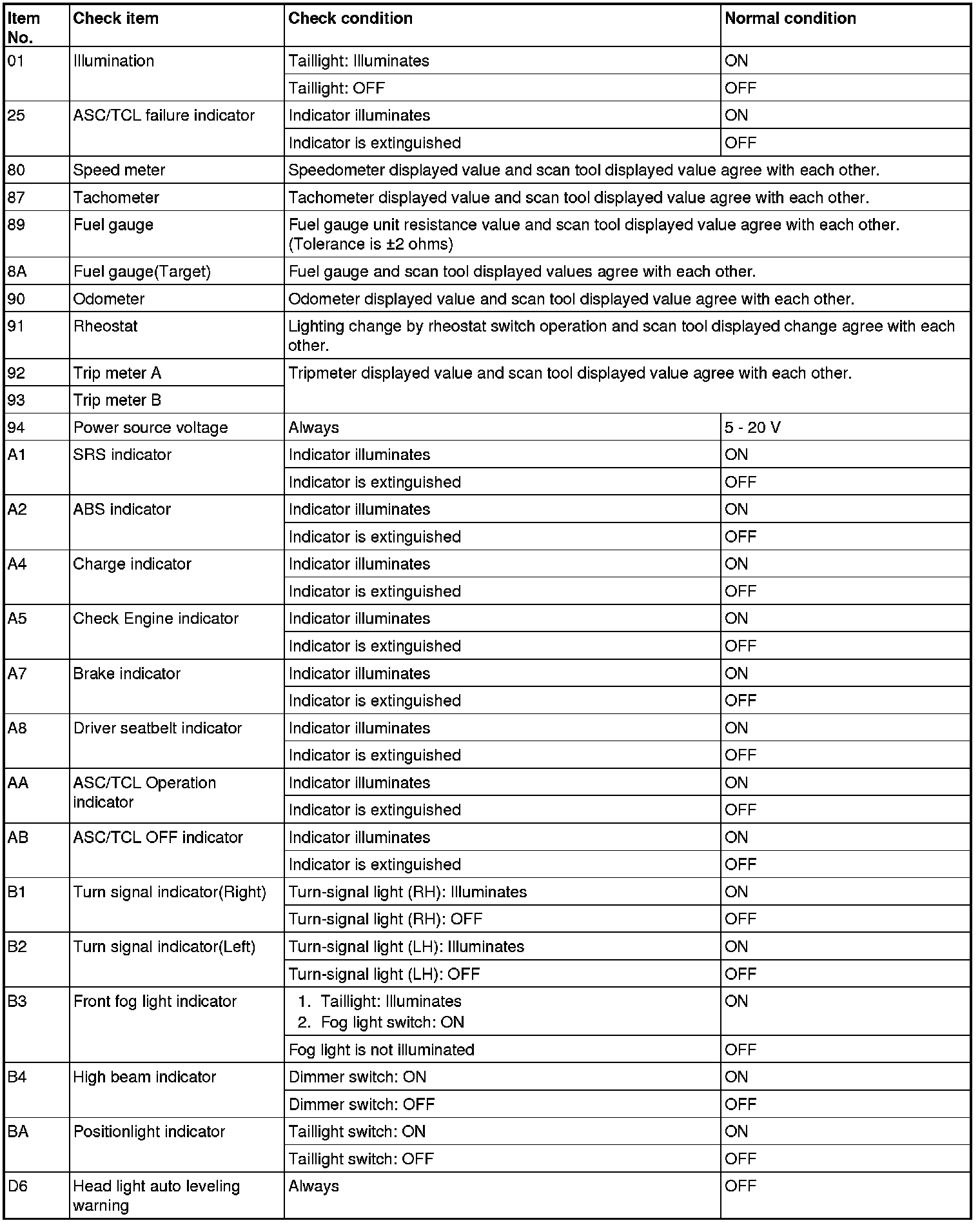

Data List Reference Table
Data List Reference Table
SERVICE DATA
NOTE:
For some information result read out by the ECU, the specific items may not be displayed.
