Check of Freeze Frame Data

DIAGNOSTIC FUNCTION

CHECK OF FREEZE FRAME DATA

The freeze frame data can be checked by using the scan tool (How to Cope with Intermittent Malfunction How to Cope With Intermittent Malfunctions).

When detecting fault and storing the DTC, the ECU connected to CAN bus line obtains the data before the determination of the DTC and the data when the DTC is determined, and then stores the ECU status of that time. By analyzing the data from scan tool, the troubleshooting can be performed more efficiently. The displayed items are as shown in the table below.

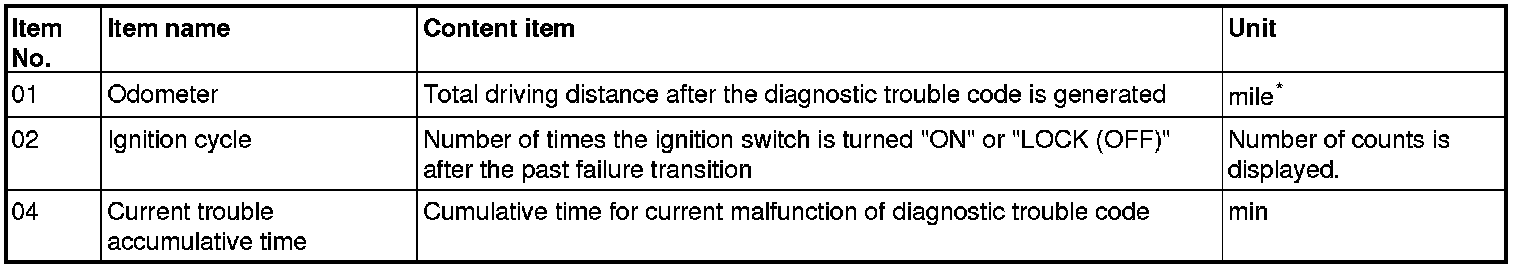

Display item list





NOTE:

- *: If a failure occurs to both the ABS-ECU and ETACS-ECU, 0000 mile or FFFF km is displayed to the scan tool MB991958.
