Evaporator Temperature Sensor / Switch: Testing and Inspection

INSPECTION

FIN THERMO SENSOR CHECK

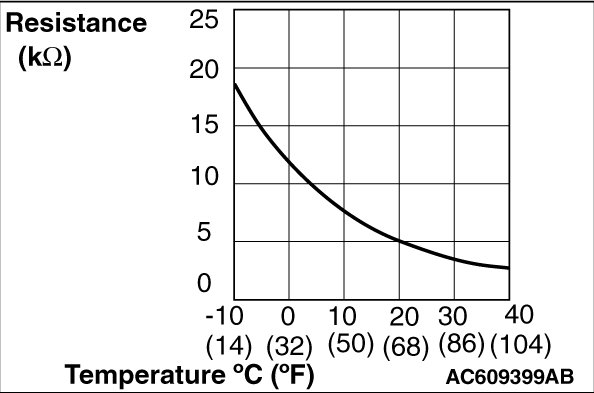

Measure the resistance between the sensor terminals under at least two temperatures. The resistance values should meet the values shown.
NOTE:
The temperature should be within the shown range.
