Cabin Temperature Sensor / Switch: Testing and Inspection

INSPECTION

INTERIOR TEMPERATURE SENSOR CHECK

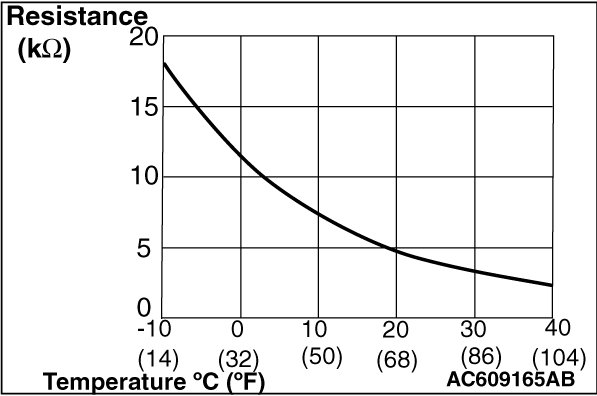

When the resistance between the sensor terminals is measured under two or more temperature conditions, the resistance should approximately satisfy the illustrated values.





NOTE:
The temperature conditions when checking should not exceed the range shown in the diagram.
