Removal and Replacement

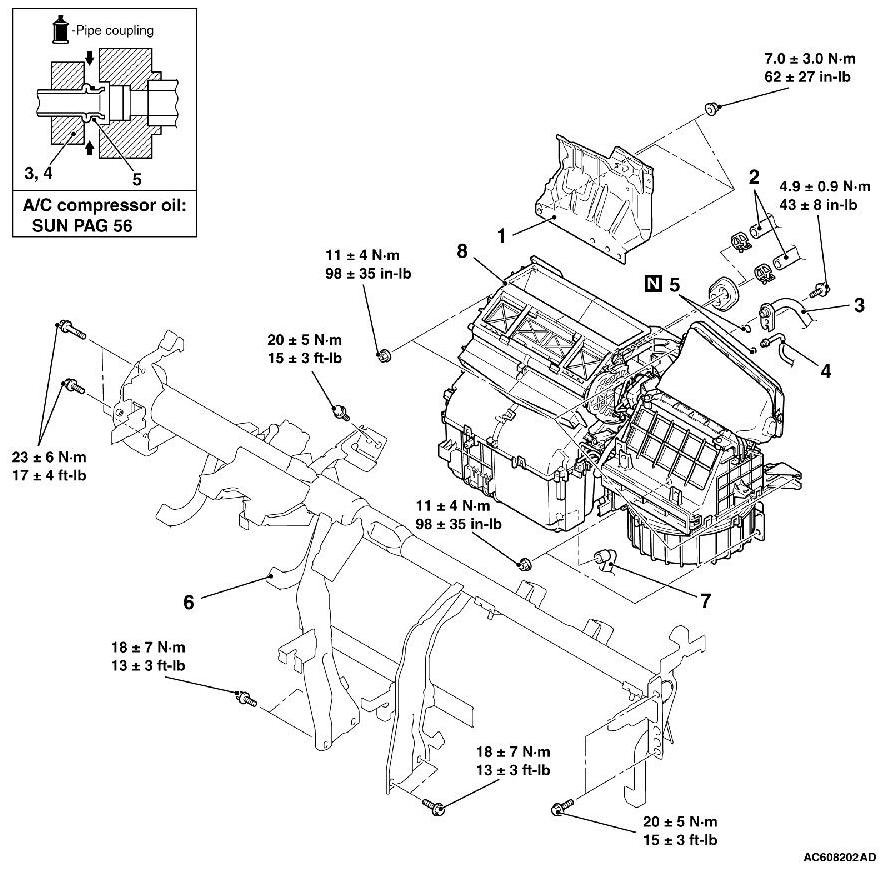

REMOVAL AND INSTALLATION

WARNING:

- Before removing the steering wheel assembly and driver's air bag module/knee air bag module, always refer to Service Precautions Service Precautions and Air bag Module and Clock Spring Removal and Installation or Knee Air bag Module Removal and Installation .)

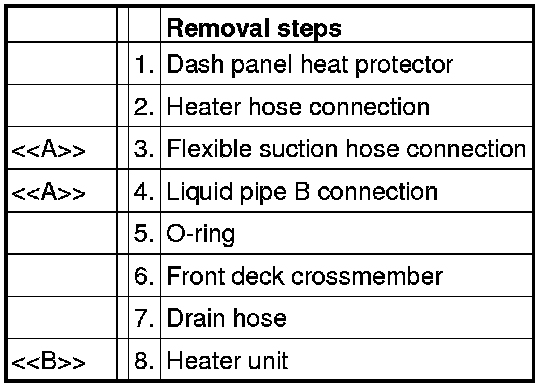

REMOVAL SERVICE POINTS

[[A]] SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

[[B]] HEATER UNIT AND DECK CROSSMEMBER ASSEMBLY REMOVAL

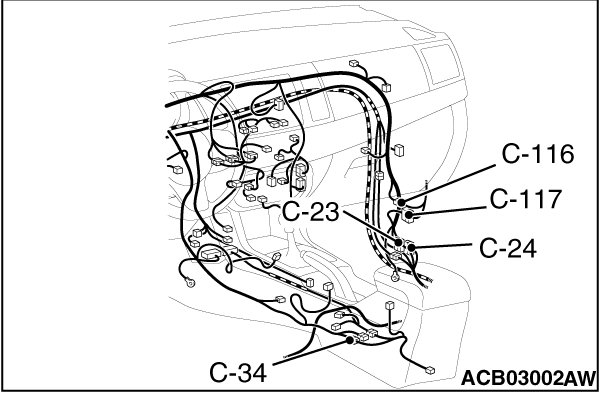

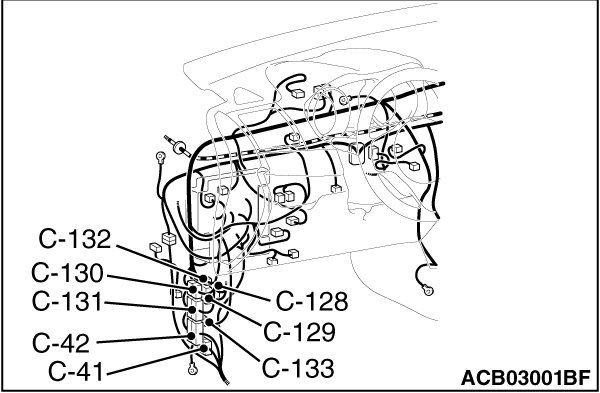

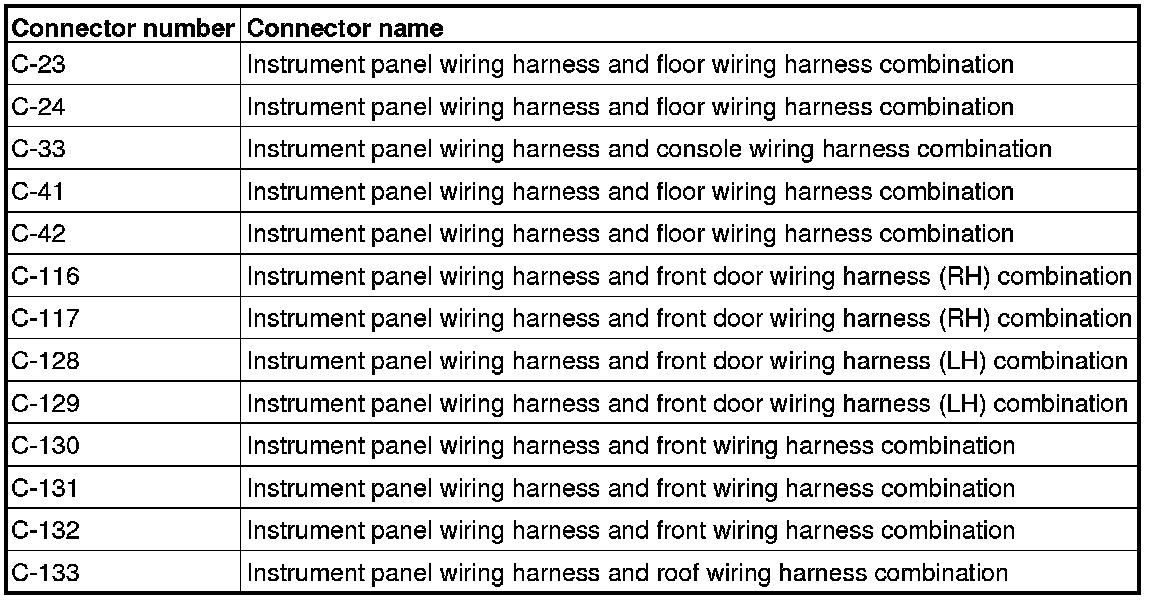

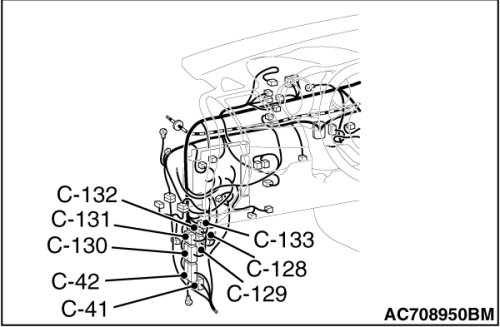

Disconnect the following connectors to gain access to the front deck crossmember.
