Hose/Line HVAC: Service and Repair

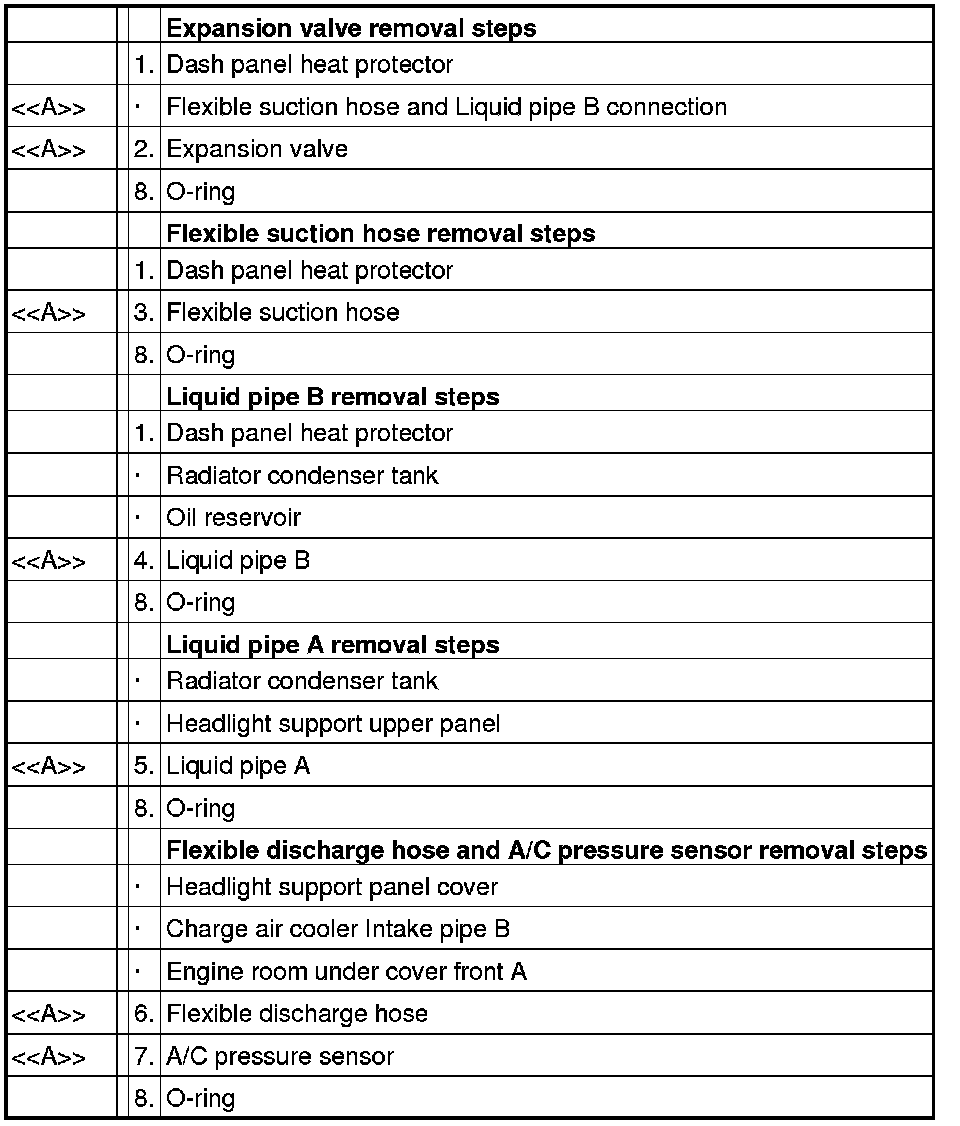

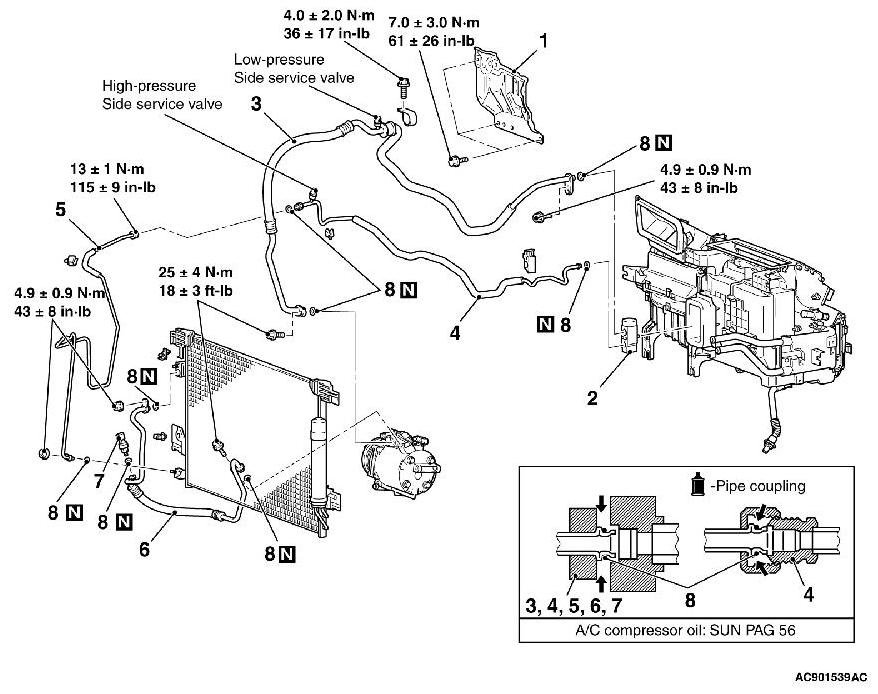

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] HOSE/PIPE DISCONNECTION

CAUTION:
As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of other foreign bodies, plug the condenser, compressor, and expansion valve nipples.
