Air Duct: Service and Repair

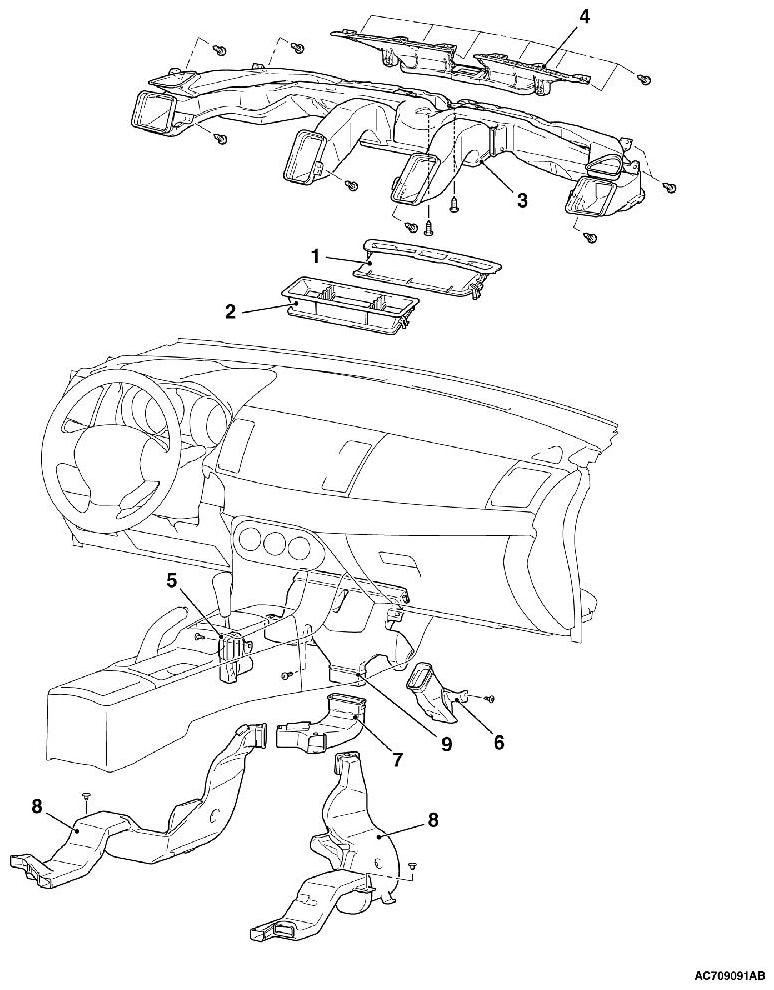

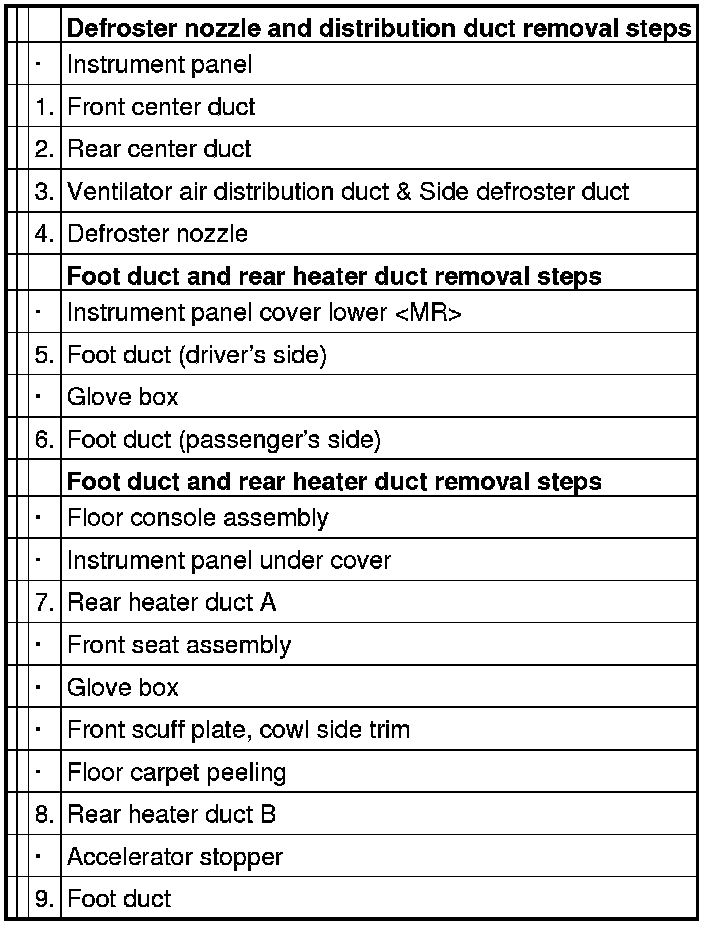

REMOVAL AND INSTALLATION
WARNING:
For removal and installation of the passenger's side air bag module, always observe the service procedures described in Air Bag Module and Clock Spring
Removal and Installation
.
