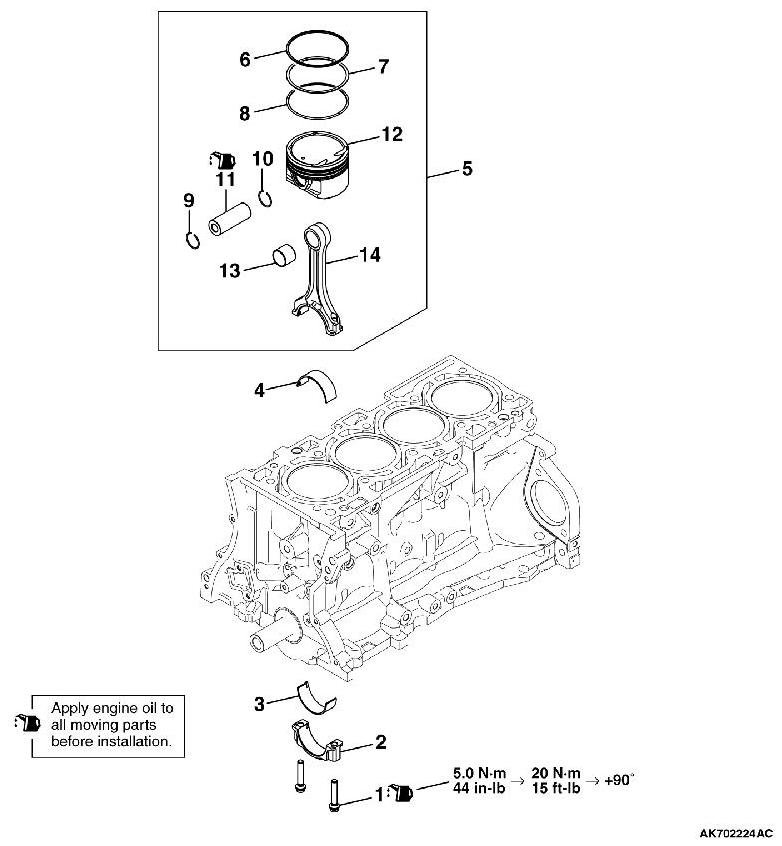

Removal and Installation

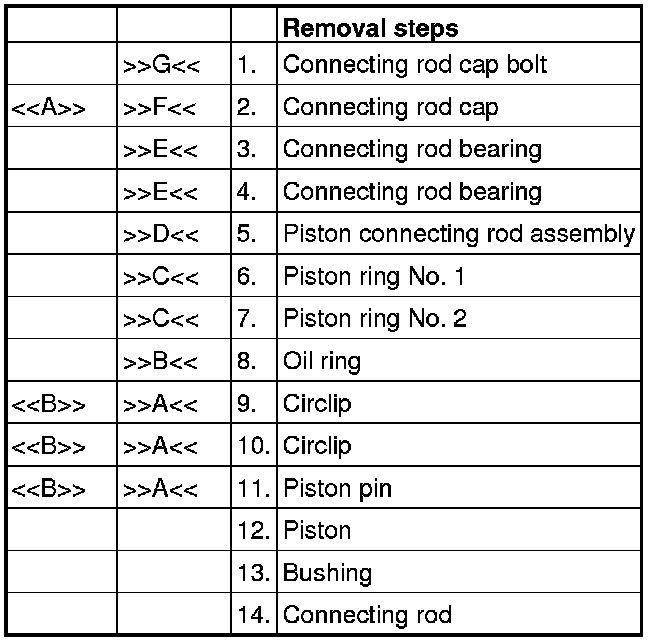

REMOVAL AND INSTALLATION
- MB992236: Circlip Installer
- MD998780: Piston Setting Tool
REMOVAL SERVICE POINTS
[[A]] CONNECTING ROD REMOVAL

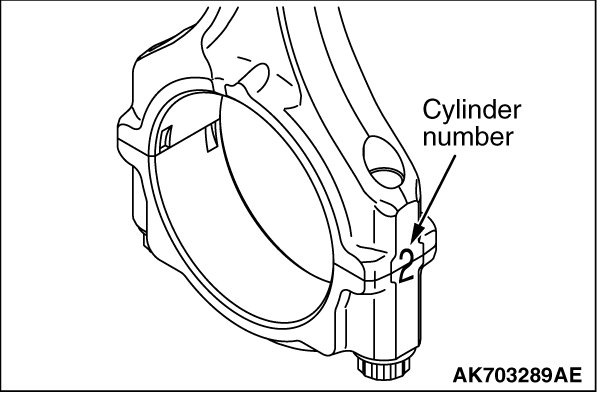

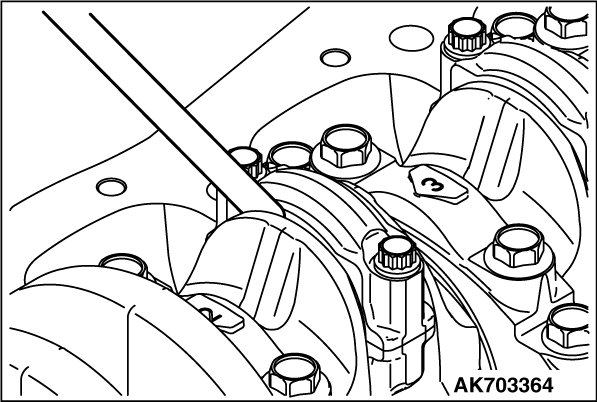

Mark the connecting rod on the big end with the cylinder number it is being removed from.
[[B]] SNAP RING REMOVAL

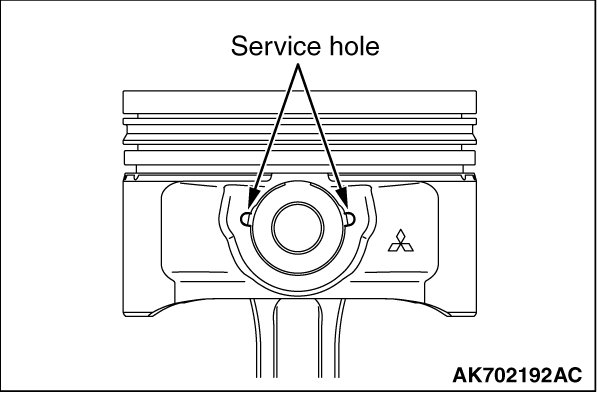

Insert the precise screwdriver into the service hole to remove the snap ring.
[[C]] PISTON PIN REMOVAL
CAUTION:
The clearance between the piston and the piston pin is a tight fit at room temperature. Therefore, be sure the heat the piston before pulling out the piston pin. Use care sine the piston is hot after heating.

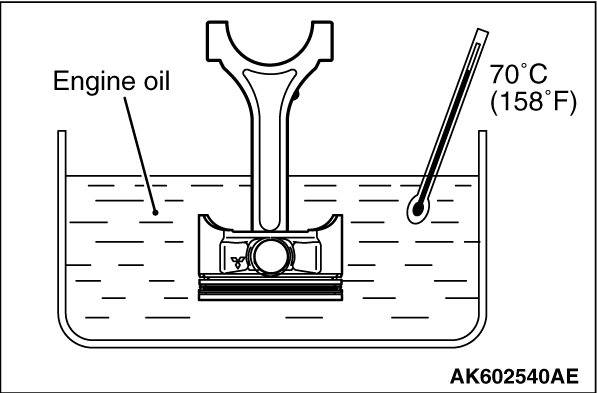

1. Into each container, pour enough engine oil to completely cover a piston.
2. Heat the engine oil to warm the piston to approximately 70°C (158°F), and then remove the piston pin.
INSTALLATION SERVICE POINTS
]]A[[ PISTON PIN INSTALLATION

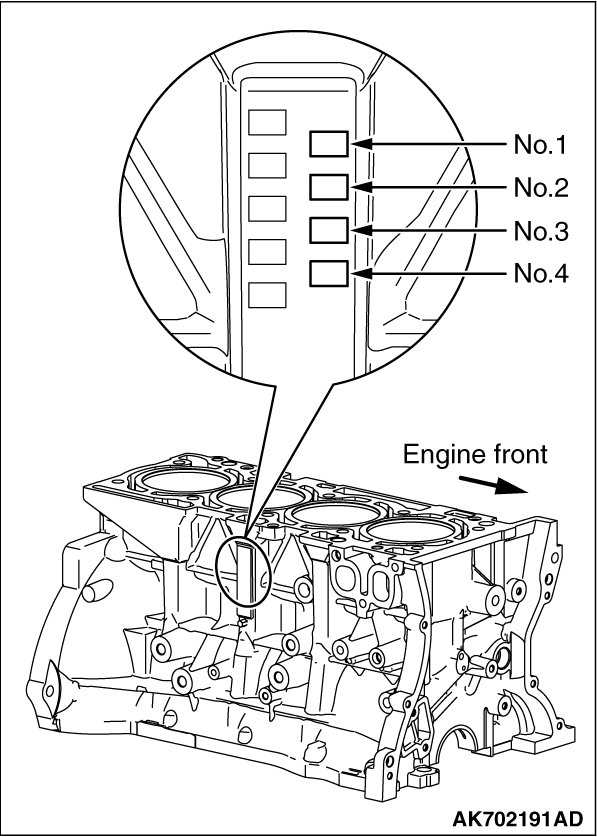

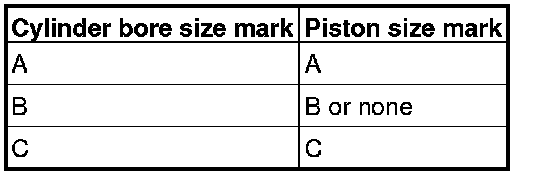

1. When replacing a piston, check the cylinder bore size mark stamped on the illustrated position of the cylinder block and select a corresponding piston from the table below.
NOTE:
The piston size mark is indicated on the piston top face.
CAUTION:
The clearance between the piston and the piston pin is a tight fit at room temperature. Therefore, be sure the heat the piston before pulling out the piston pin. Use care sine the piston is hot after heating.
2. Into each container, pour enough engine oil to completely cover a piston.
3. Heat the engine oil to warm the piston to approximately 70°C (158°F), and then remove the piston pin.
4. Sufficiently apply the engine oil to the outer circumference of piston pin and the small end hole of connecting rod.

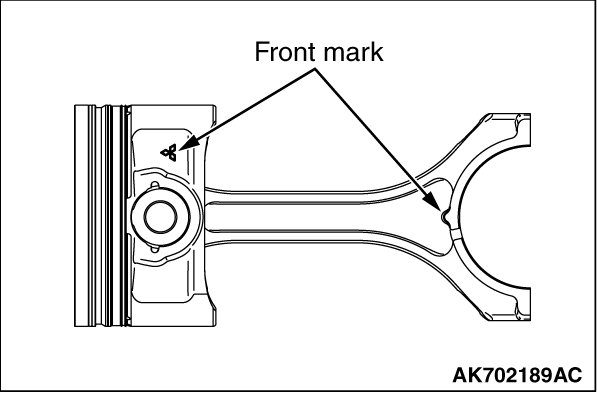

5. Put the front mark of connecting rod and the front mark of piston toward the same side, and then insert the piston pin.
6. Install the circlip to the piston according to the following procedure:

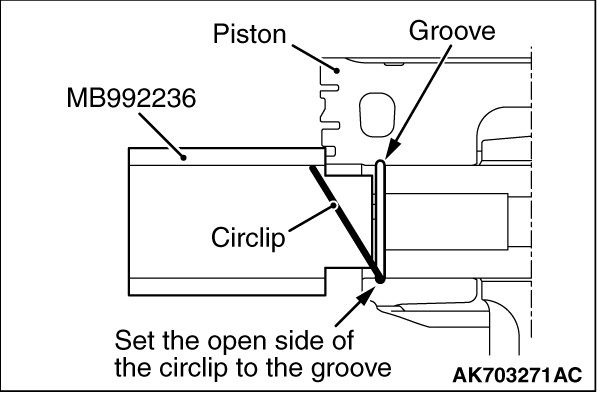

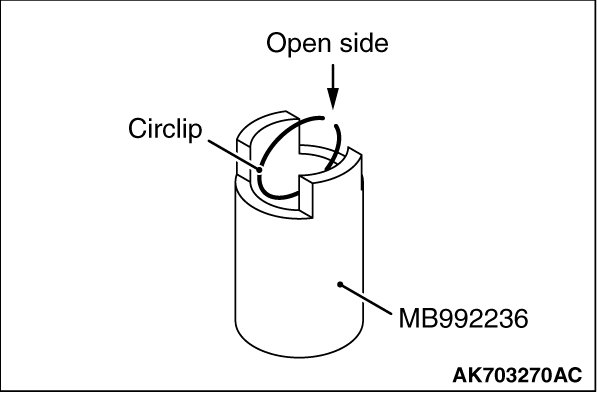

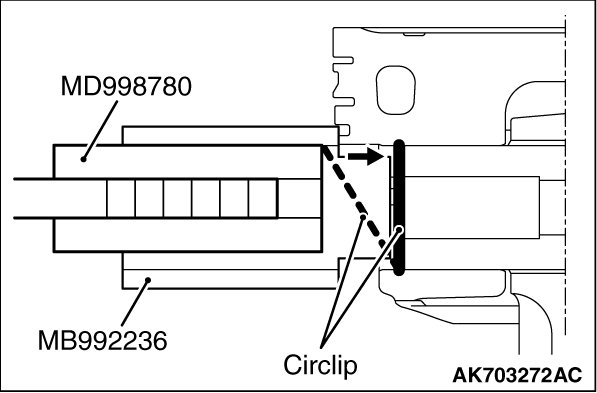

(1) With the open side facing upward, install the new circlip to the special tool MB992236.
(2) Align the open side of circlip with the piston groove, and then set the circlip together with the special tool MB992236.

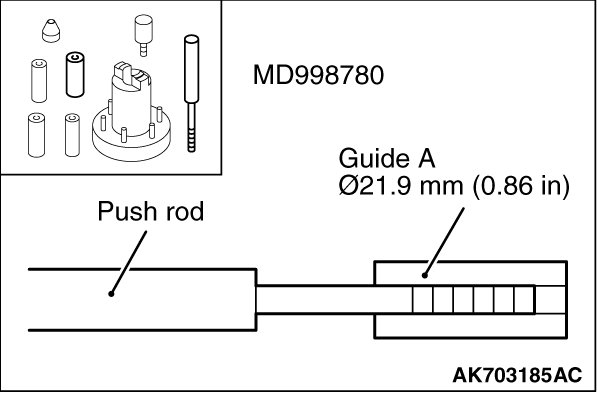

(3) Install the guide A (dia.21.9 mm [0.88 inch]), to the push rod of special tool MD998780.
(4) Push the opposite side of open side with the special tool MD998780, and install the circlip to the piston groove.
(5) Make sure the circlip is seated into the groove.
(6) Unless seated into the groove, the circlip must be pushed with the special tool MD998780 again to be seated into the groove.

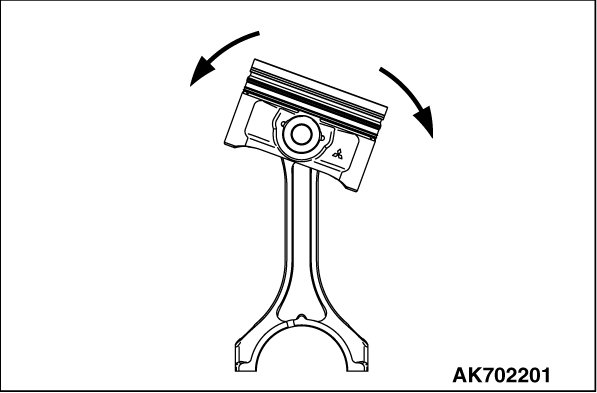

7. Check that the piston moves smoothly.
]]B[[ OIL RING INSTALLATION
1. Assemble the spacer of the oil ring into the piston ring groove. Then, assemble the upper side rail, and after this assemble the lower side rail.
NOTE:

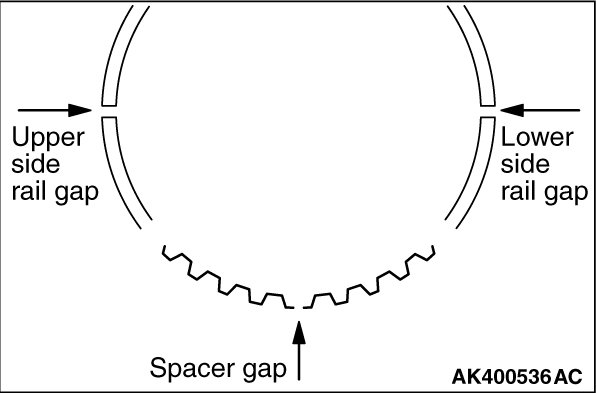

Install the side rail and end gap of the spacer so that they are at the position as shown in the illustration.
CAUTION:
The side rail may be broken if its end gap is widened by a ring expander as in other piston rings.

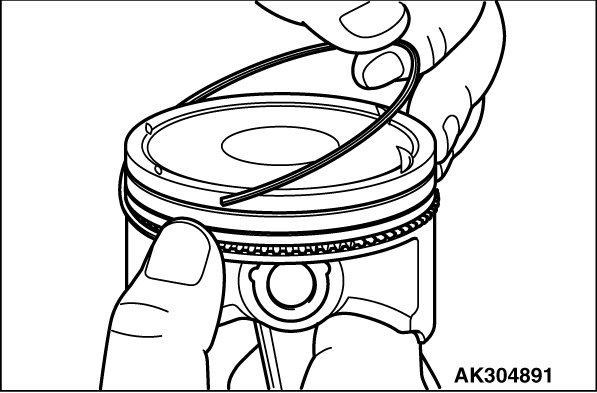

2. When assembling the side rail, push it by fingers, after fitting one end of the side rail into the piston groove, for easy assembly.
3. After assembling the oil ring into the piston, make sure that the side rail turns smoothly to either direction.
]]C[[ PISTON RING NO. 2 / PISTON RING NO. 1 INSTALLATION

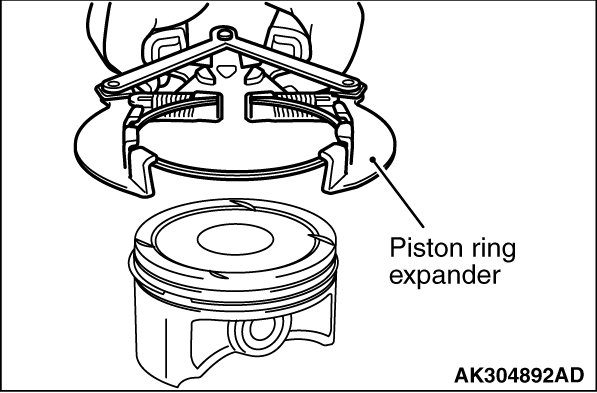

Use a piston ring expander to assemble piston rings with their identification marks facing upward. Piston rings can be assembled by hand without using the piston ring expander.

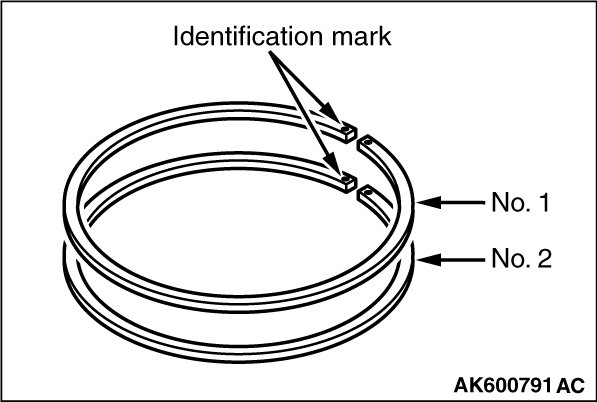

Identification mark
No. 1 ring: 1R
No. 2 ring: 2R
]]D[[ PISTON CONNECTING ROD ASSEMBLY INSTALLATION
1. Apply a sufficient amount of engine oil to the circumference of the piston, piston rings and oil ring.

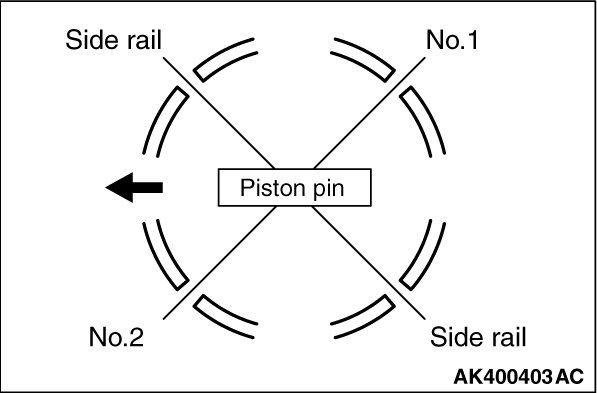

2. Arrange end gap positions of piston rings and oil ring (side rail and spacer) as shown in the illustration.
3. Insert the piston and connecting rod assembly from the top surface of the cylinder block with the front mark of the piston top face facing toward the timing chain side.
CAUTION:
Driving it in hard causes breakage of piston rings and damage to the crank pin.

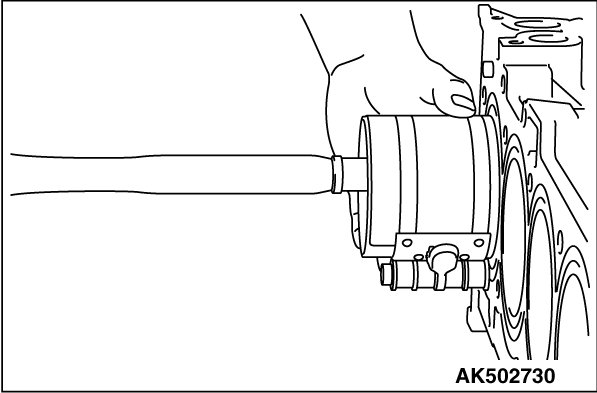

4. Firmly tighten the piston ring with a ring band and insert the piston and connecting rod assembly.
]]E[[ CONNECTING ROD BEARING INSTALLATION

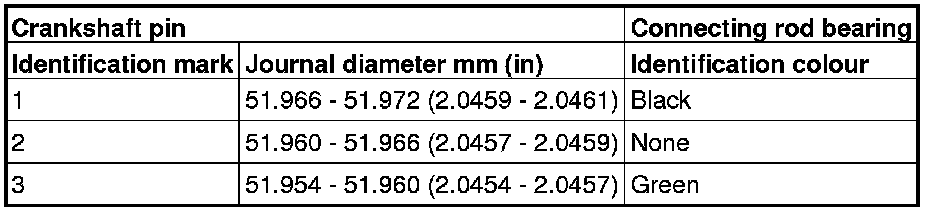

1. When replacing a connecting rod bearing, select the bearing corresponding to the crankshaft pin outside diameter according to the crankshaft pin identification in the table below.

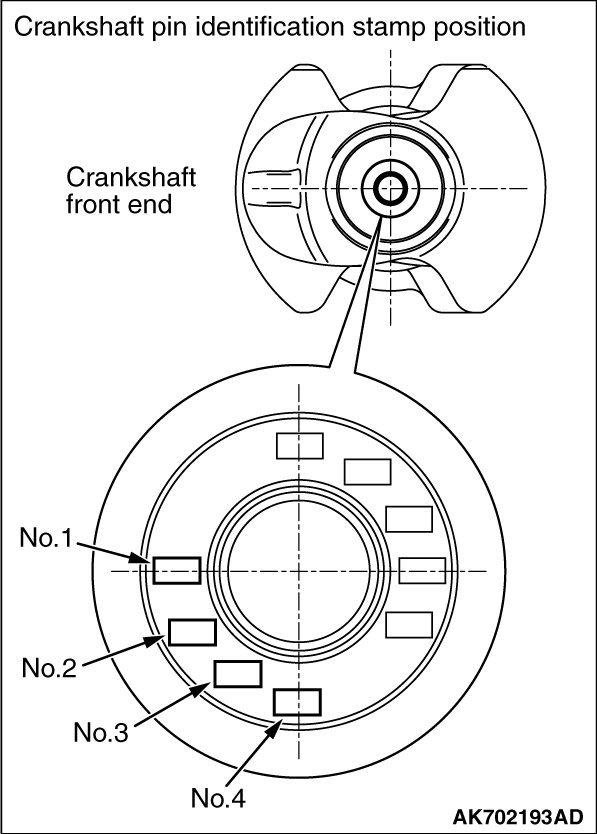

2. An identification mark of a crankshaft is stamped at the illustrated position by No.

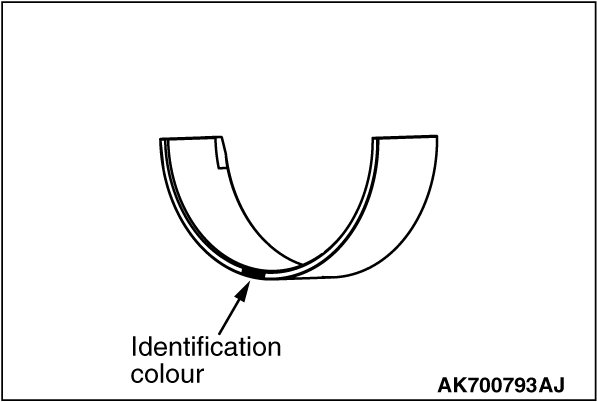

3. A connecting rod bearings an identification colour at the illustrated position.
]]F[[ CONNECTING ROD CAP INSTALLATION

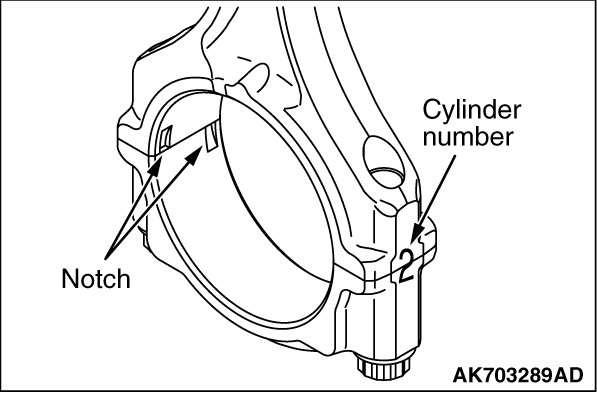

1. Assemble the bearing cap on the connecting rod by aligning it with the mark put during removal. If a new connecting rod without a mating mark is used, assemble so that the detent notch of the bearing is on the same side as illustrated.
2. Make sure that clearance of the thrust of the connecting rod big end is appropriate.
Standard value: 0.10 - 0.25 mm (0.004 - 0.010 inch)
Limit: 0.4 mm (0.02 inch)
]]G[[ CONNECTING ROD CAP BOLT INSTALLATION
1. Check in the following procedure before reusing the connecting rod bolt.
(1) Measure the outside diameter "A."
(2) Measure the smallest outside diameter "B" within the range "X" shown in the illustration.
(3) If the difference of outside diameter of thread exceeds the limit, replace the connecting rod bolt.
Limit: 0.10 mm (0.004 inch)
2. Apply engine oil to the threaded portion and seat surface of the bolt before installing it.
3. After installing each bolt and tightening it by fingers, tighten bolts alternately to properly assemble the cap.
4. Tighten the bolt in several steps until the torque reaches 5.0 Nm (44 in-lb).
5. Tighten the bolt in several steps until the torque reaches 20 Nm (15 ft-lb).

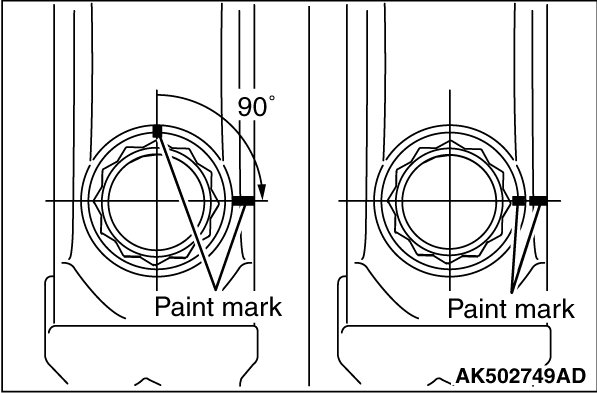

6. Put a paint mark on the bolt head as illustrated.
7. Put a paint mark on the connecting rod at 90° position in the tightening direction of the bolt with reference to the paint mark position of the bolt.
8.
CAUTION:
- When the tightening angle is smaller than the specified tightening angle, the appropriate tightening capacity cannot be secured.
- When the tightening angle is larger than the specified tightening angle, remove the bolt to start from the beginning again according to the procedure.
Tighten the bolt 90°, and make sure that the paint mark of the connecting rod is aligned with that of the bolt.
