Intake Manifold: Service and Repair

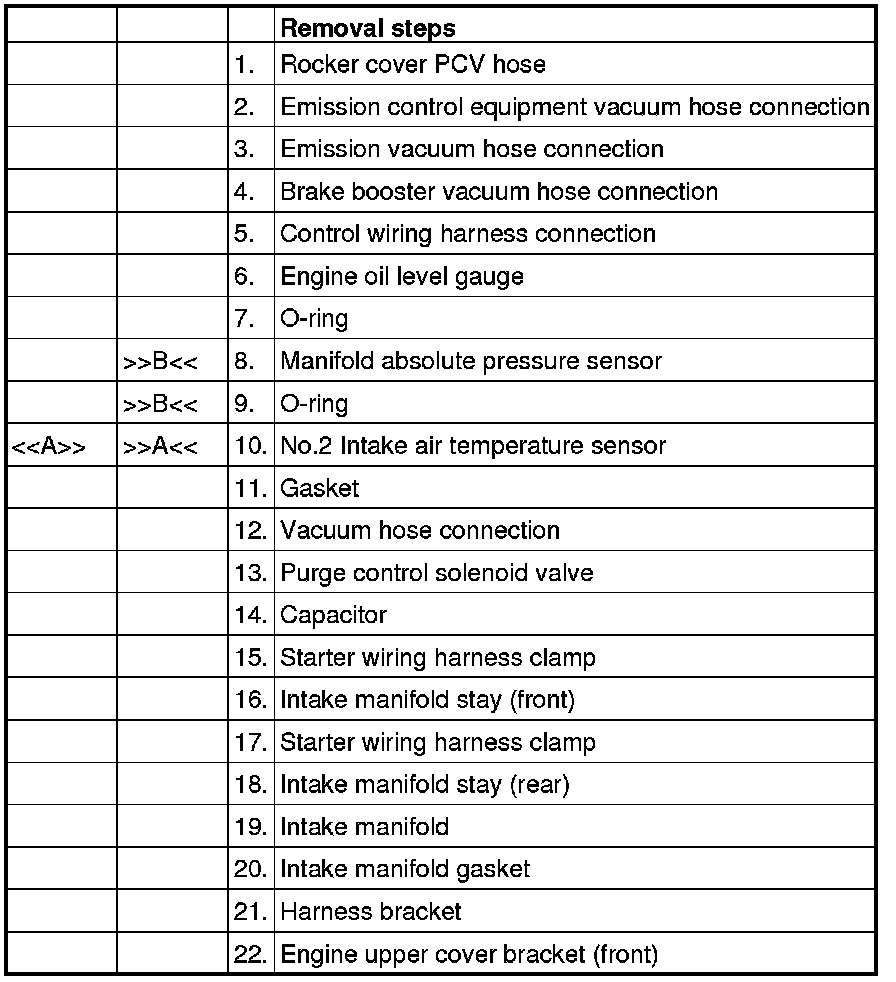

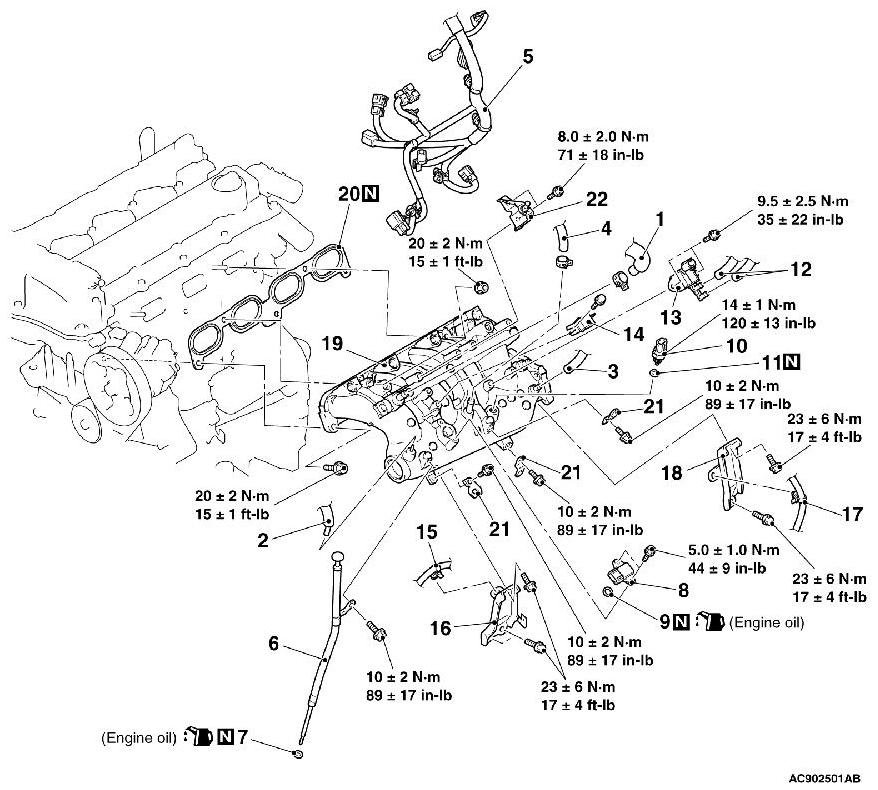

REMOVAL AND INSTALLATION













Required Special Tool:

- MB992188: Fuel Injection Pipe Wrench

REMOVAL SERVICE POINT

[[A]] NO.2 INTAKE AIR TEMPERATURE SENSOR REMOVAL





Use special tool MB992188 to remove the No.2 intake air temperature sensor.

INSTALLATION SERVICE POINTS

]]A[[ NO.2 INTAKE AIR TEMPERATURE SENSOR INSTALLATION





Tighten the No.2 intake air temperature sensor to the specified torque by using special tool MB992188.
Tightening torque: 14± 1Nm (120± 13 in-lb)


]]B[[ O-RING/MANIFOLD ABSOLUTE PRESSURE SENSOR INSTALLATION

CAUTION:

- Install the manifold absolute pressure sensor, taking care that no shock is applied to it.
- Do not use a manifold absolute pressure sensor that has been dropped.

1. Apply a small amount of new engine oil to the O-ring.

2. Install the manifold absolute pressure sensor to the intake manifold with care not to damage the O-ring.
