Engine Mount: Description and Operation

GENERAL INFORMATION

For the power plant support, the inertial axis four-point mounting system is adopted, and the system has the following features.

- Environmental-load substances are totally abolished for hexavalent chromium-free and lead-free components.
- For the engine and transaxle mounting insulator, the cylindrical liquid seal mountings are adopted. This reduces idling vibration and acceleration noise, and improves riding comfort.
- A front axle crossmember is adopted to improve steering ability.
- The mass damper is added into the center member to reduce muffled sound during acceleration.
- The front axle crossmember bar and the front axle crossmember stay are added to enhance rigidity.

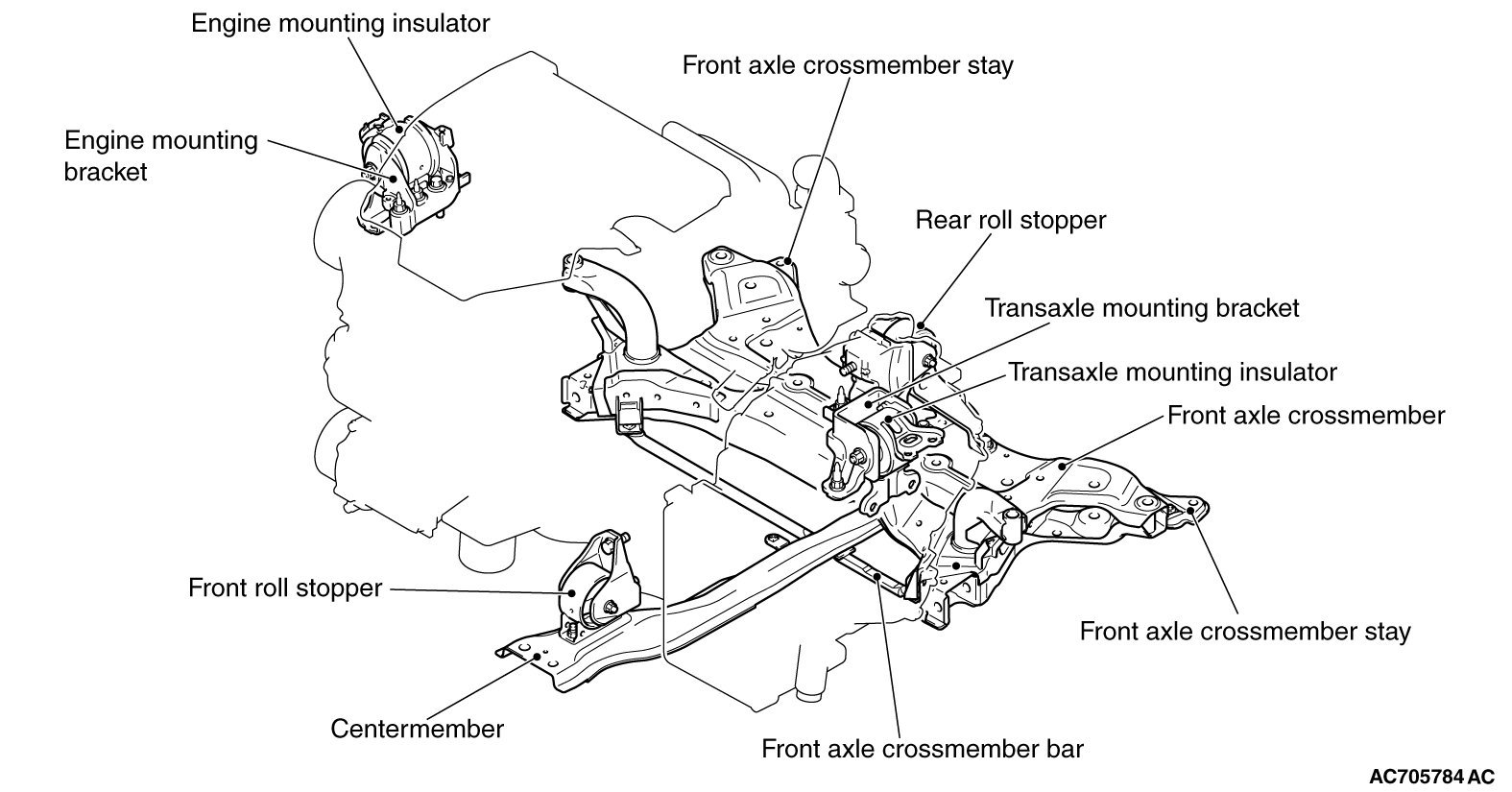

CONSTRUCTION DIAGRAM

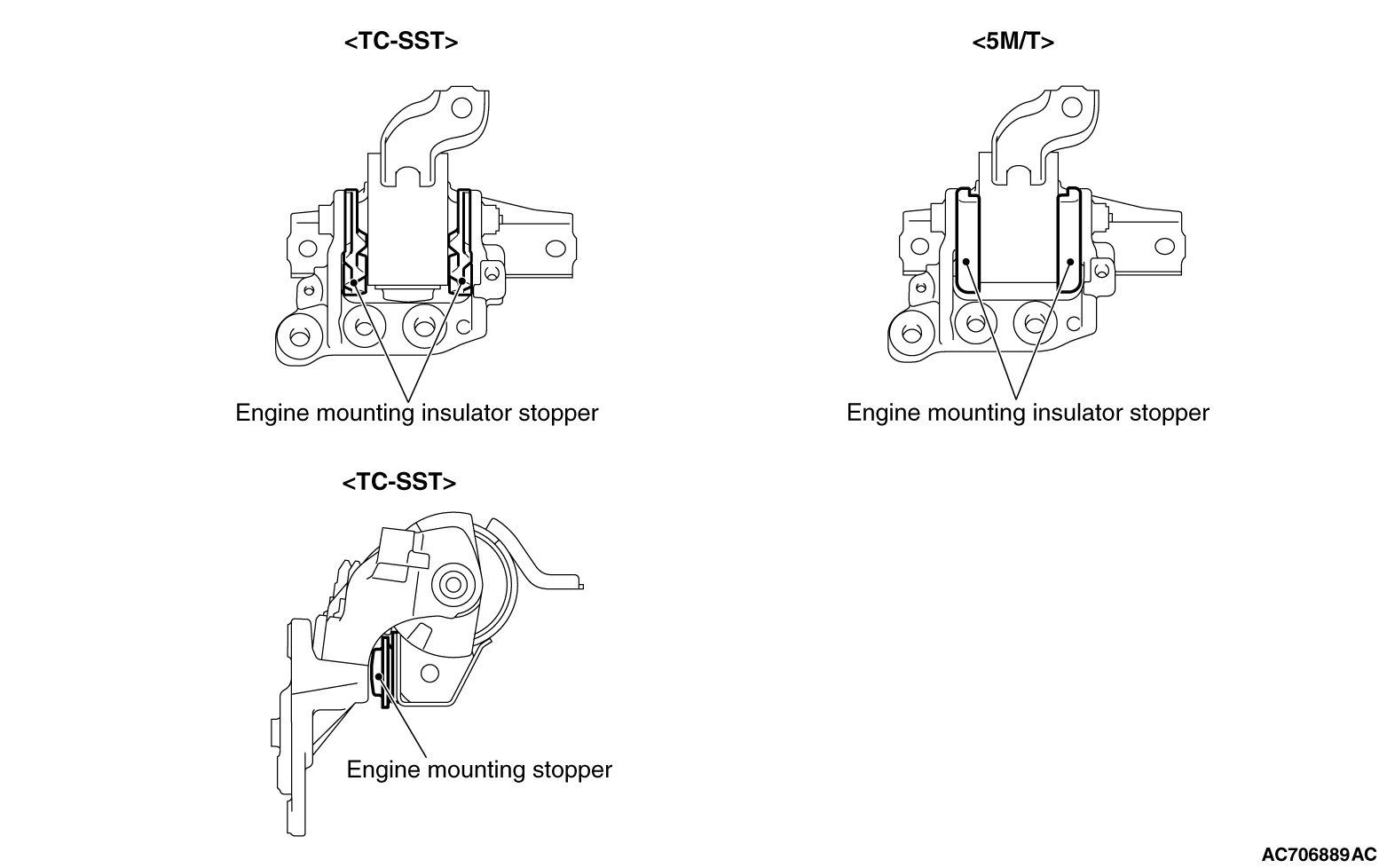

- The shape of engine mounting insulator stopper is optimized to reduce vibration transfer.
- The engine mounting stopper is added to the engine mounting insulator to reduce movement of engine.[ TC-SST]

CONSTRUCTION DIAGRAM
