Radiator Cooling Fan Motor Relay: Testing and Inspection




COOLING FAN RELAY CONTINUITY CHECK

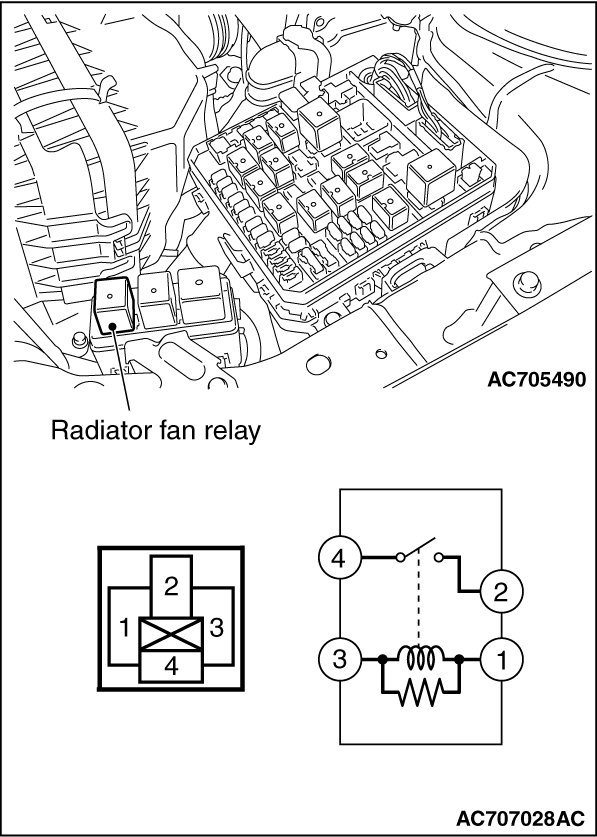

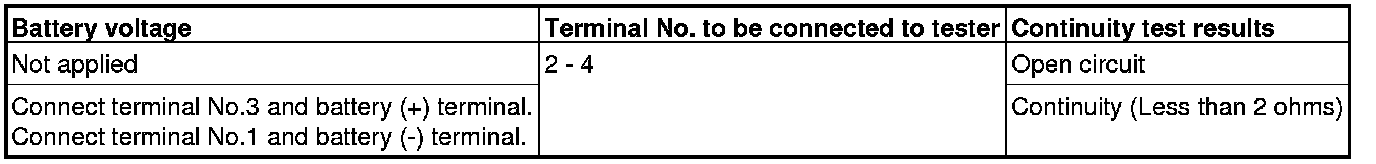

RADIATOR FAN RELAY CHECK

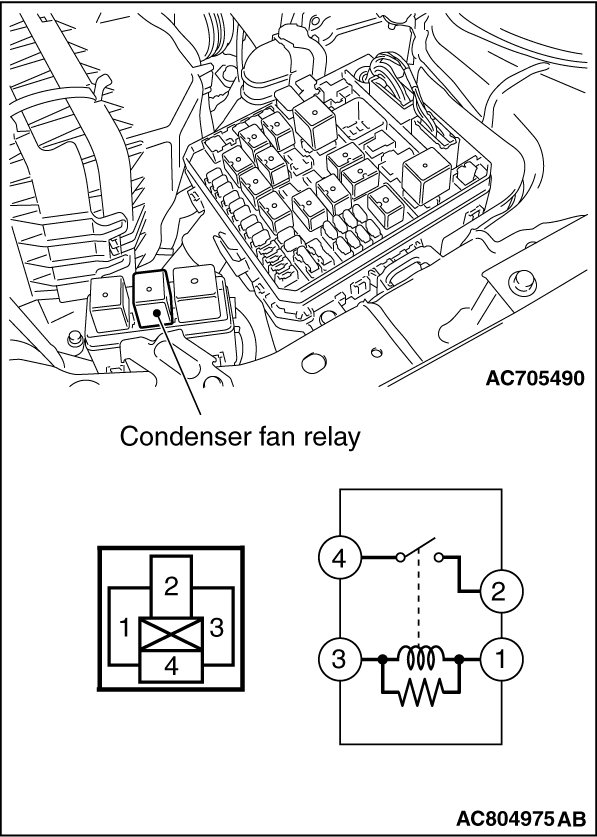

CONDENSER FAN RELAY CHECK

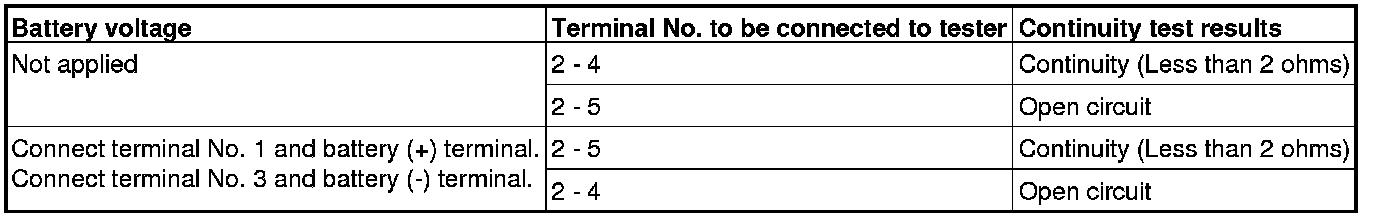

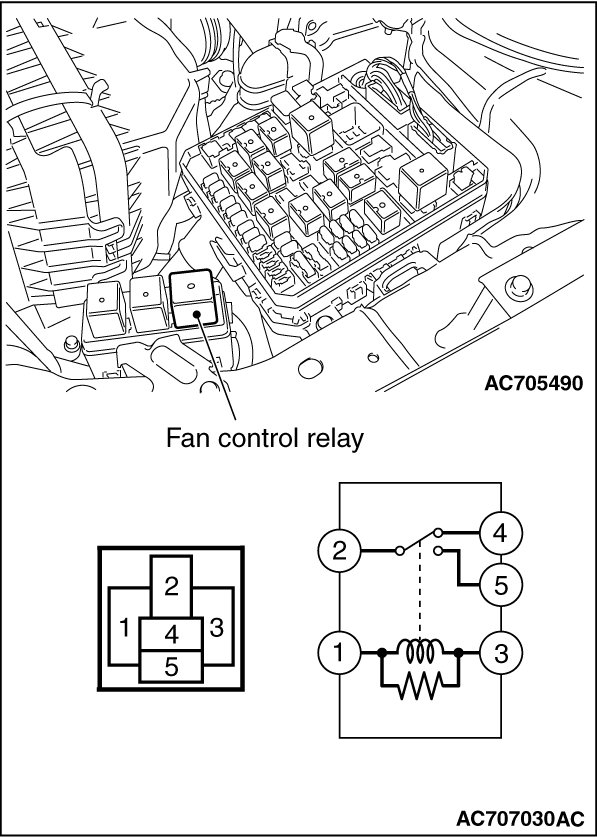

FAN CONTROL RELAY CHECK
