Grounding




GROUNDING





NOTE:

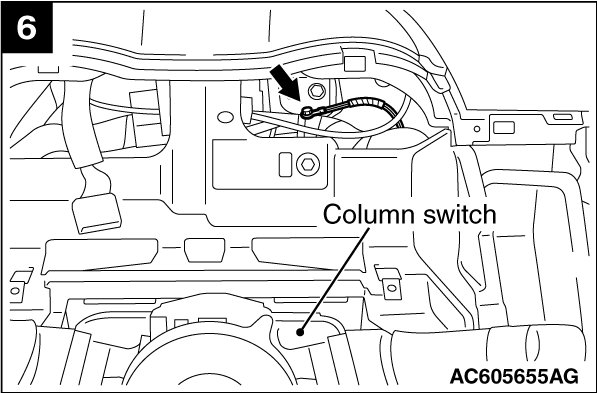

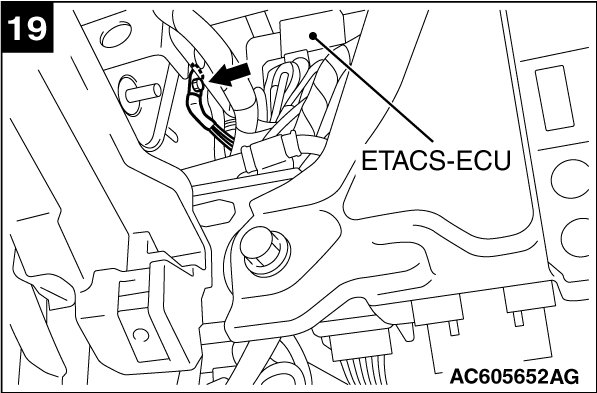

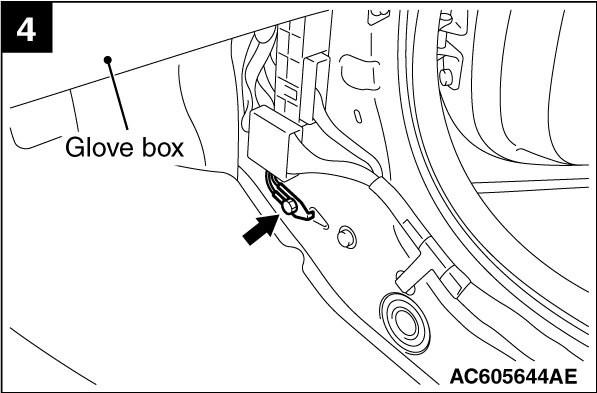

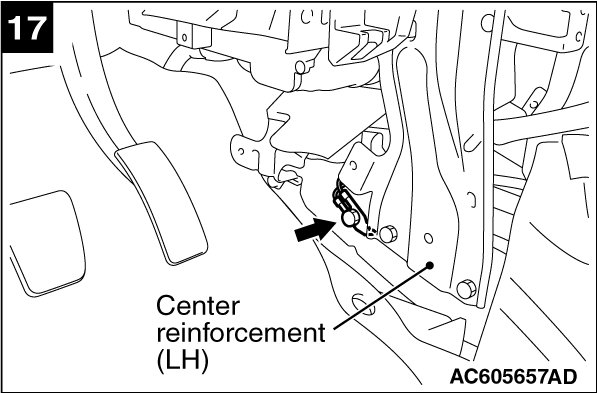

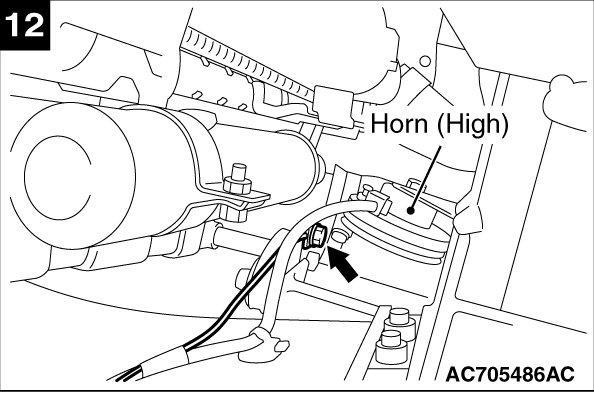

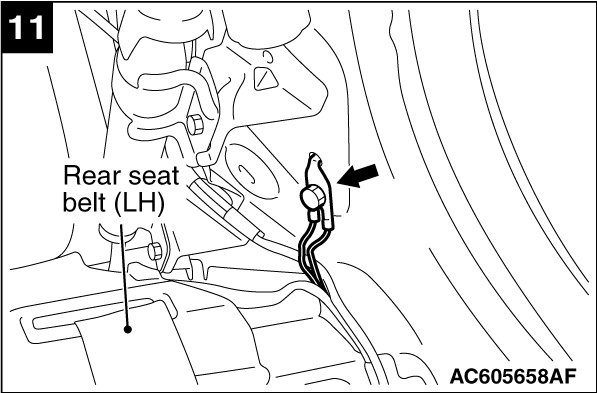

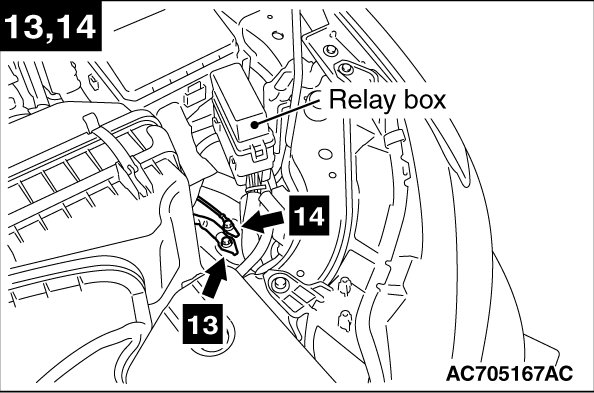

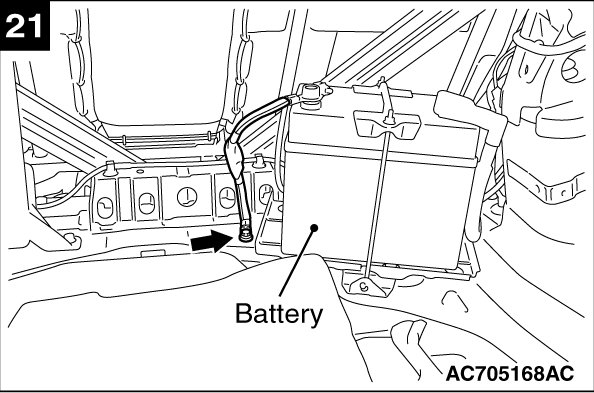

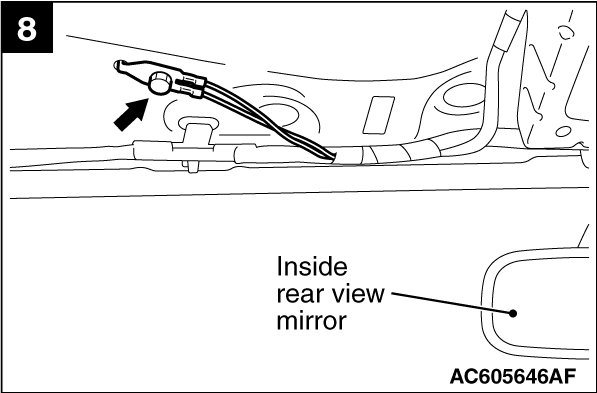

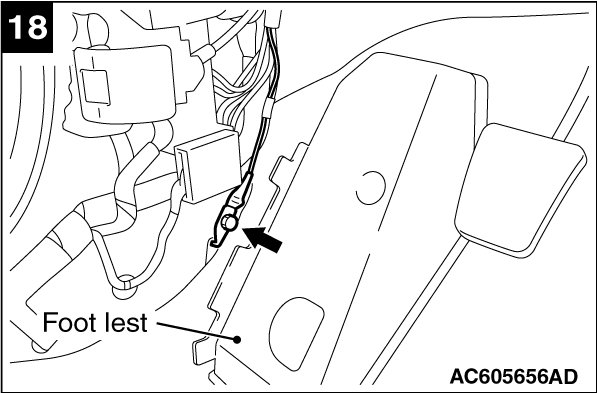

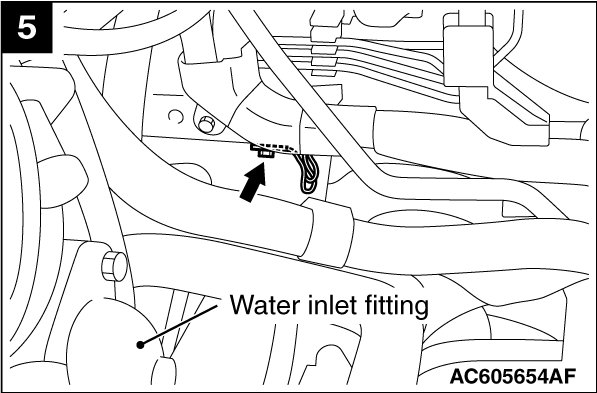

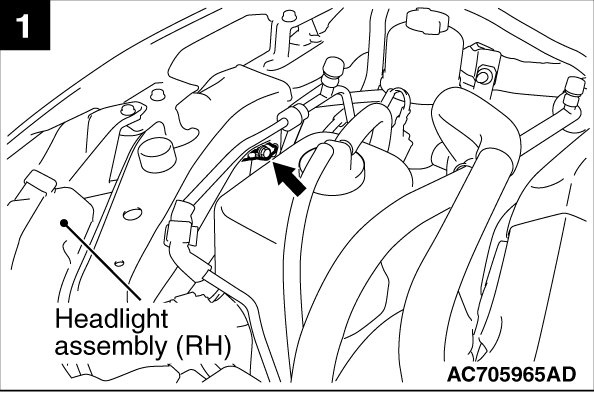

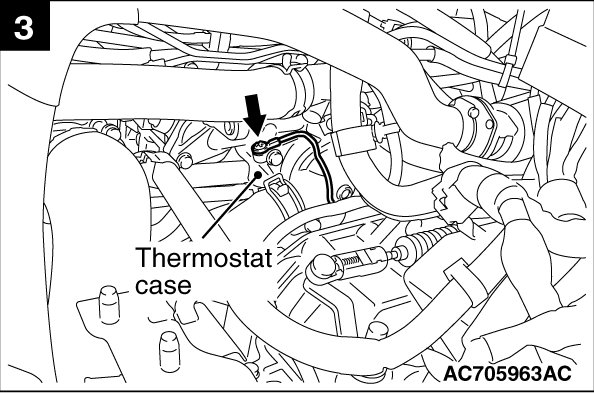

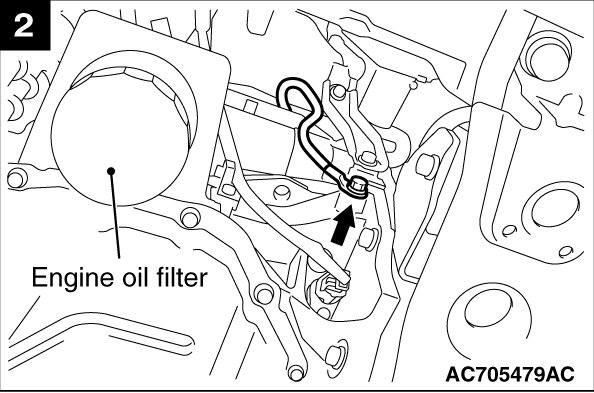

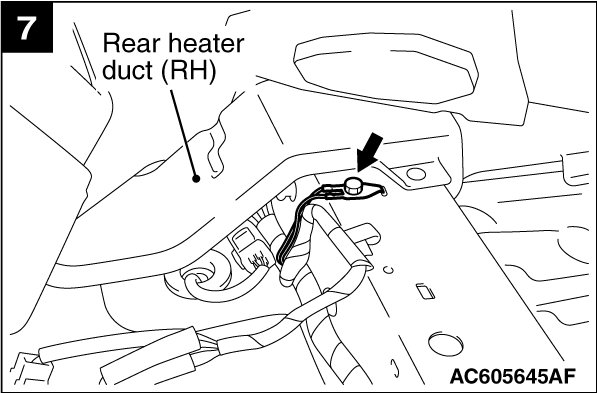

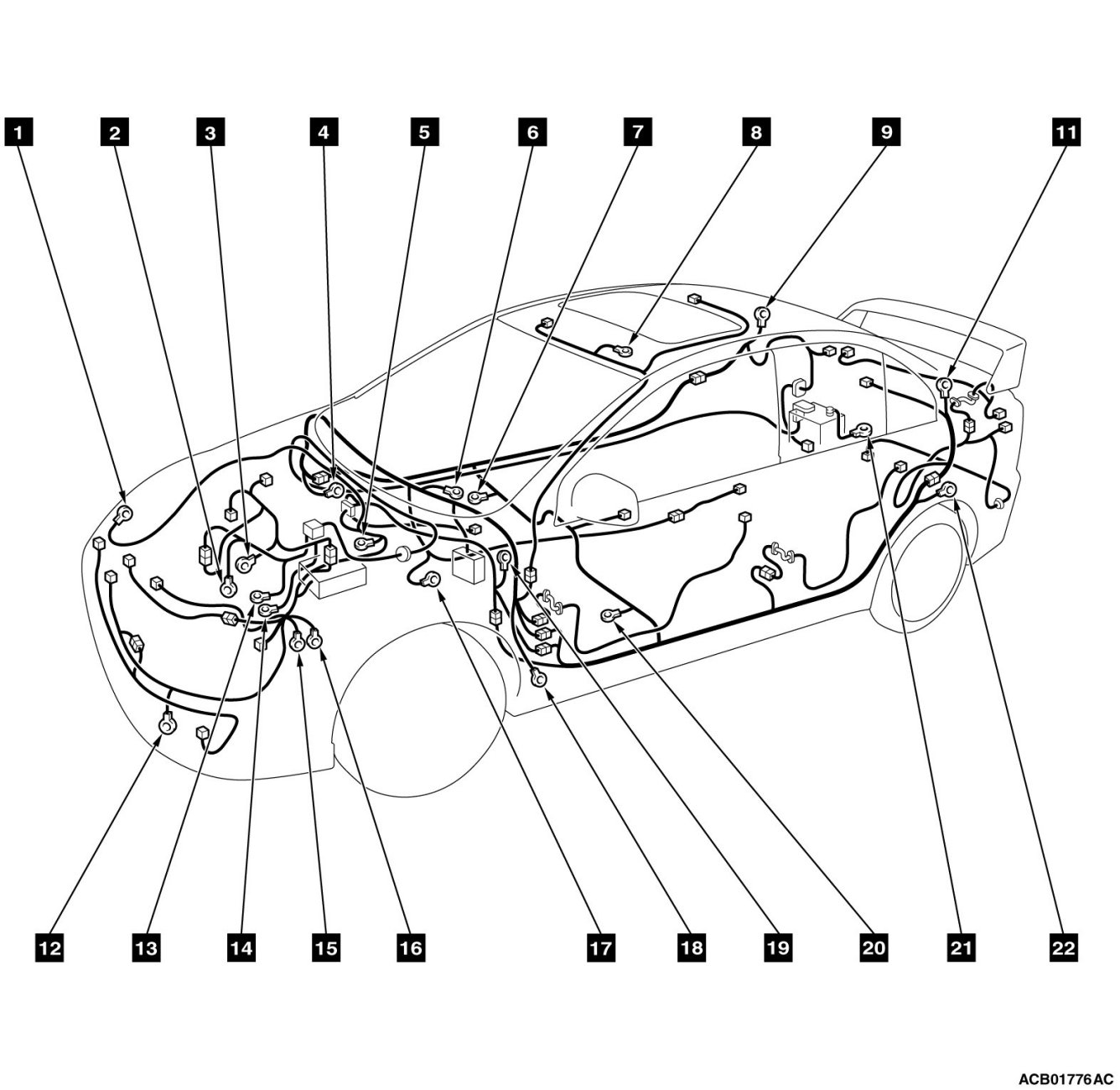

1 to 22 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.
