Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> Twin Clutch-Sportronic Shift Transmission (TC-SST)

Twin Clutch-Sportronic Shift Transmission (TC-SST)

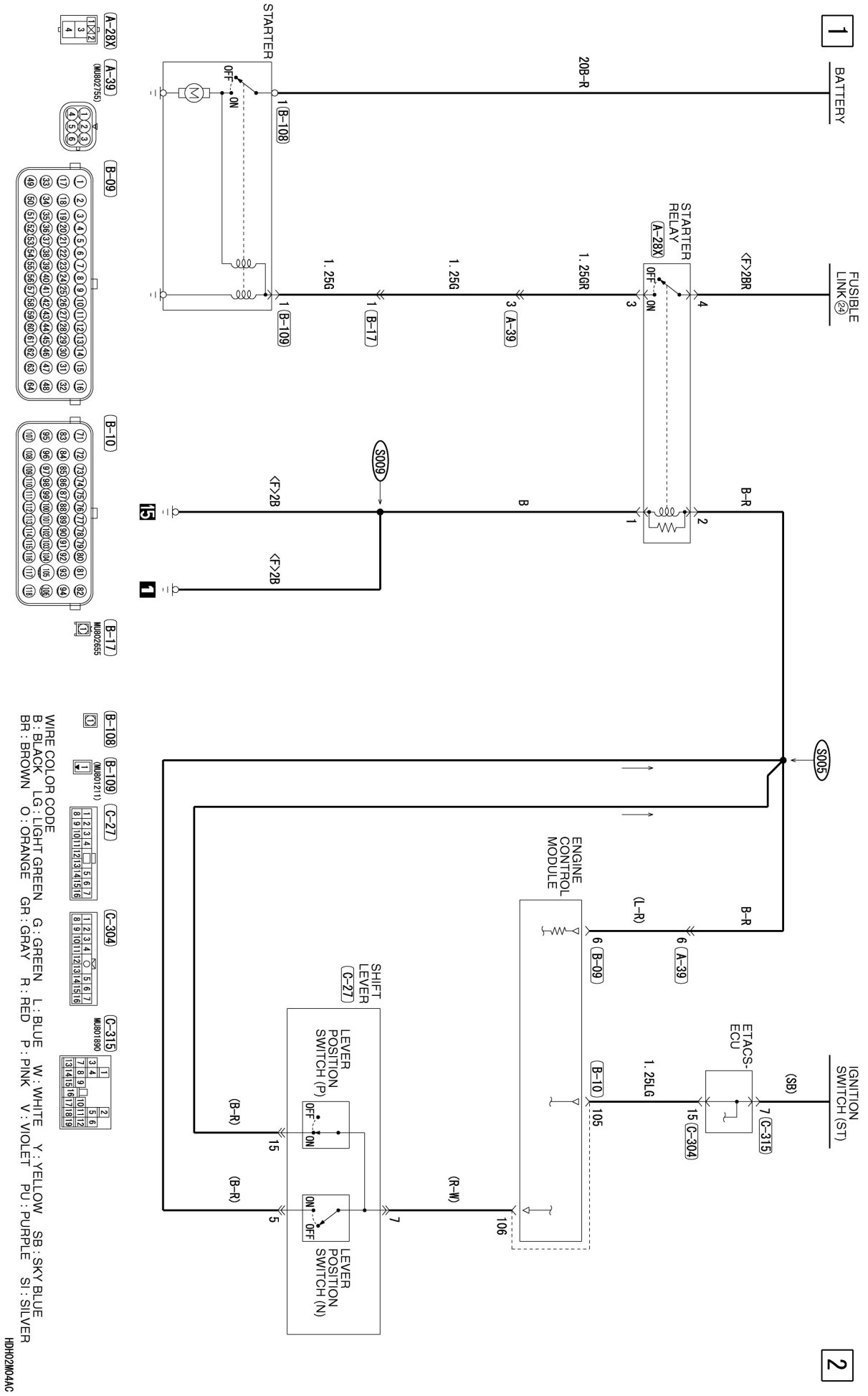

STARTING SYSTEM [TC-SST]
