Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Information Bus
>>
Controller Area Network (CAN) [TC-SST]
Controller Area Network (CAN) [TC-SST]

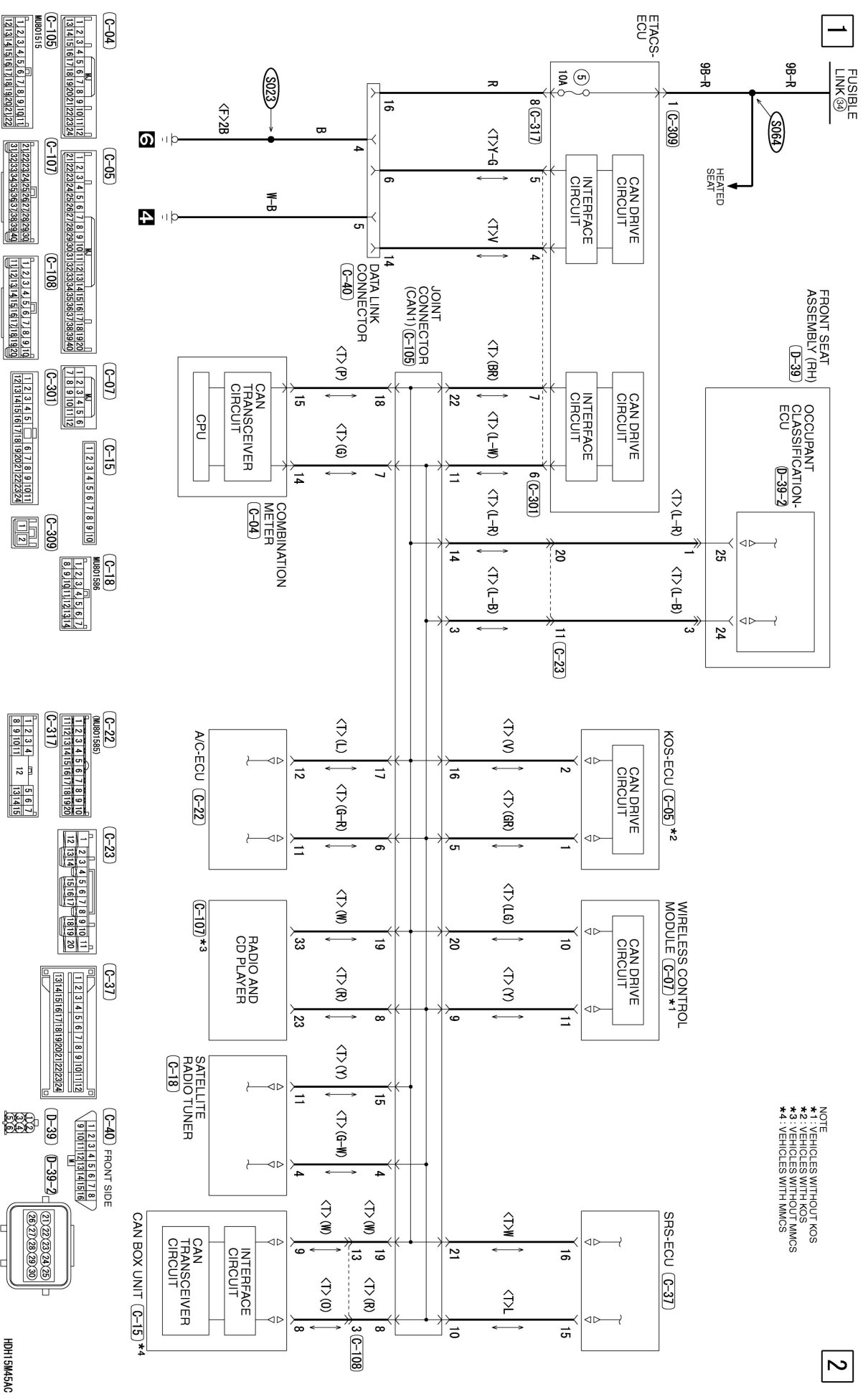

CONTROLLER AREA NETWORK (CAN) [TC-SST]
