Lamp Out Indicator
Lamp Out Indicator

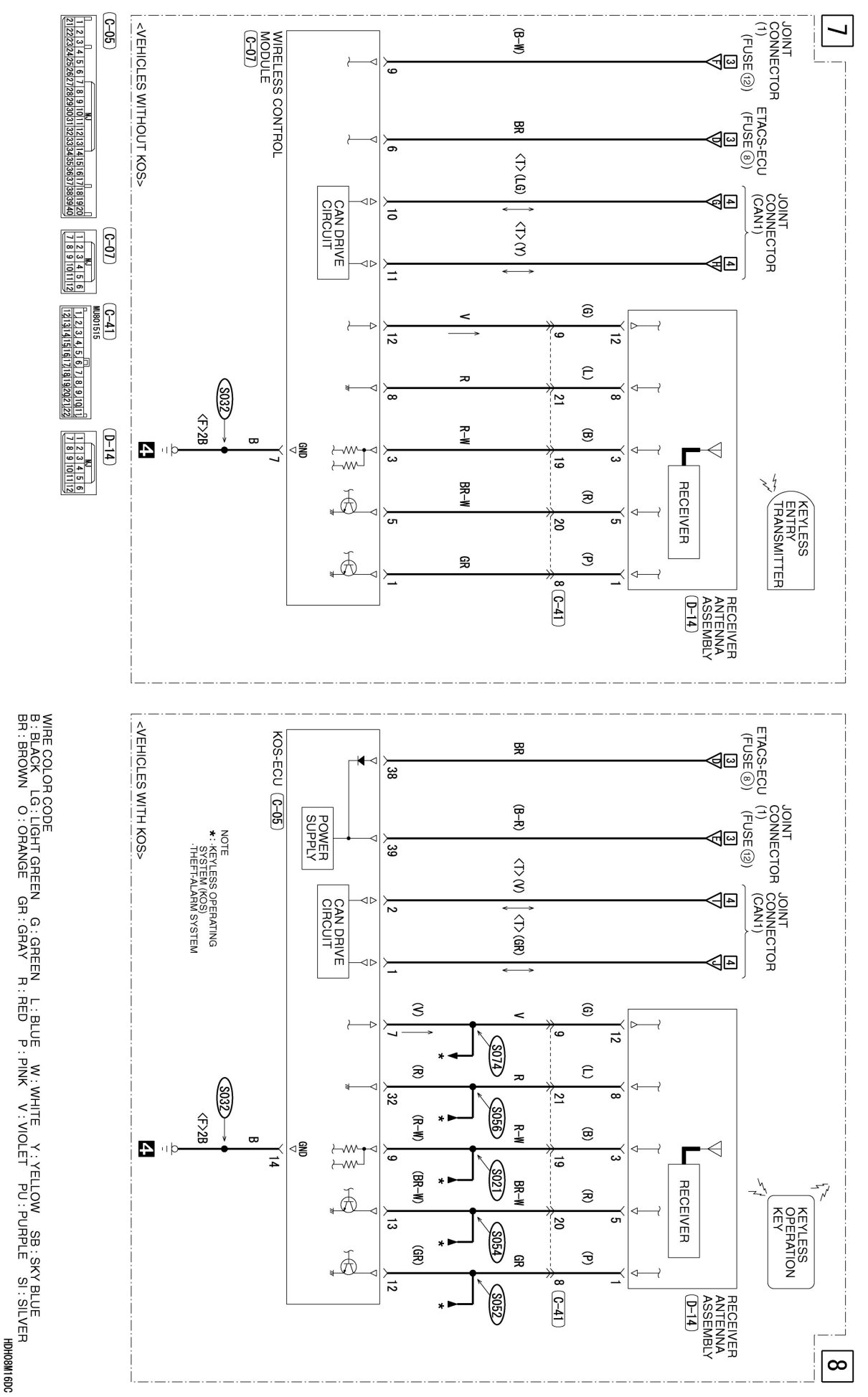

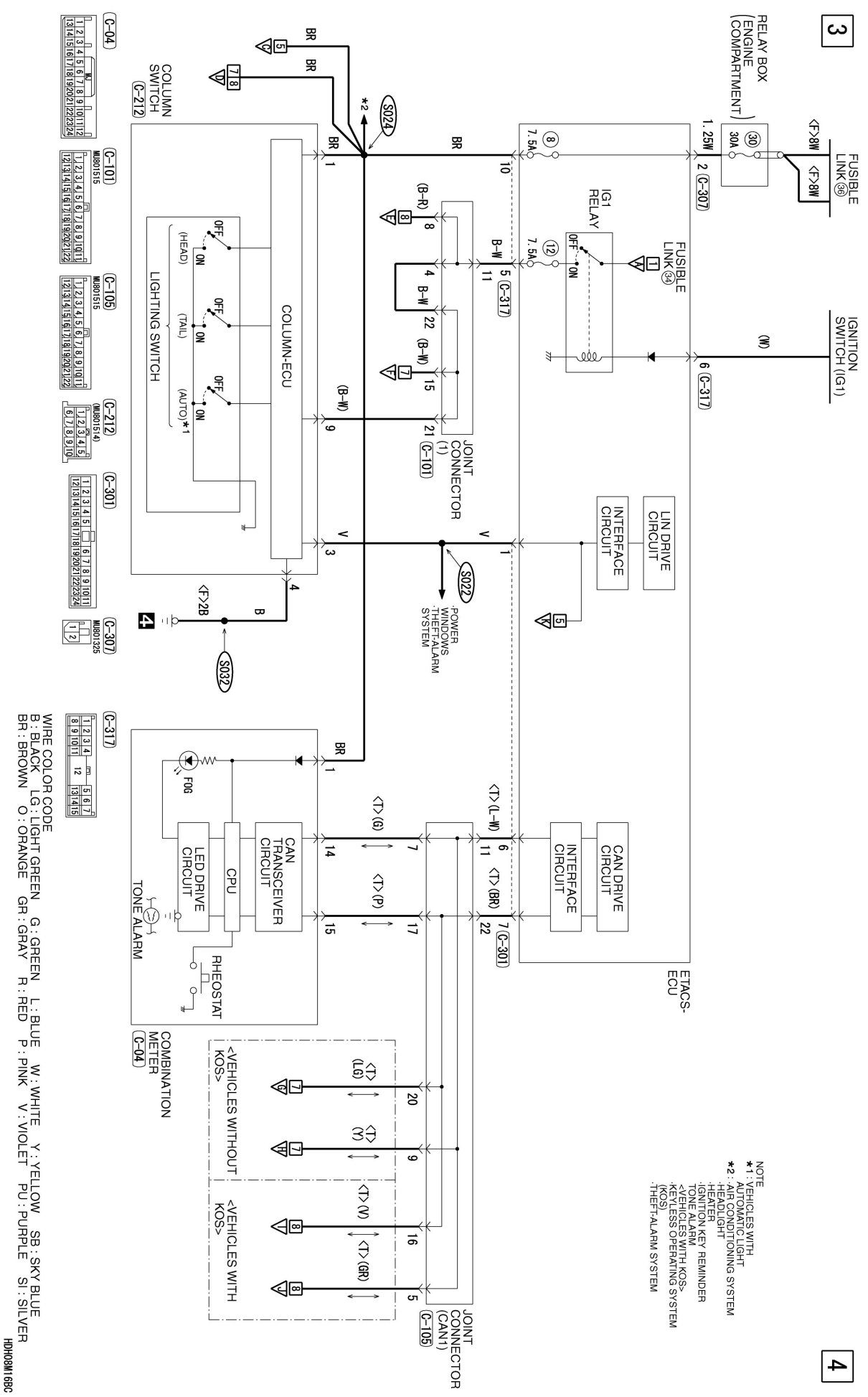

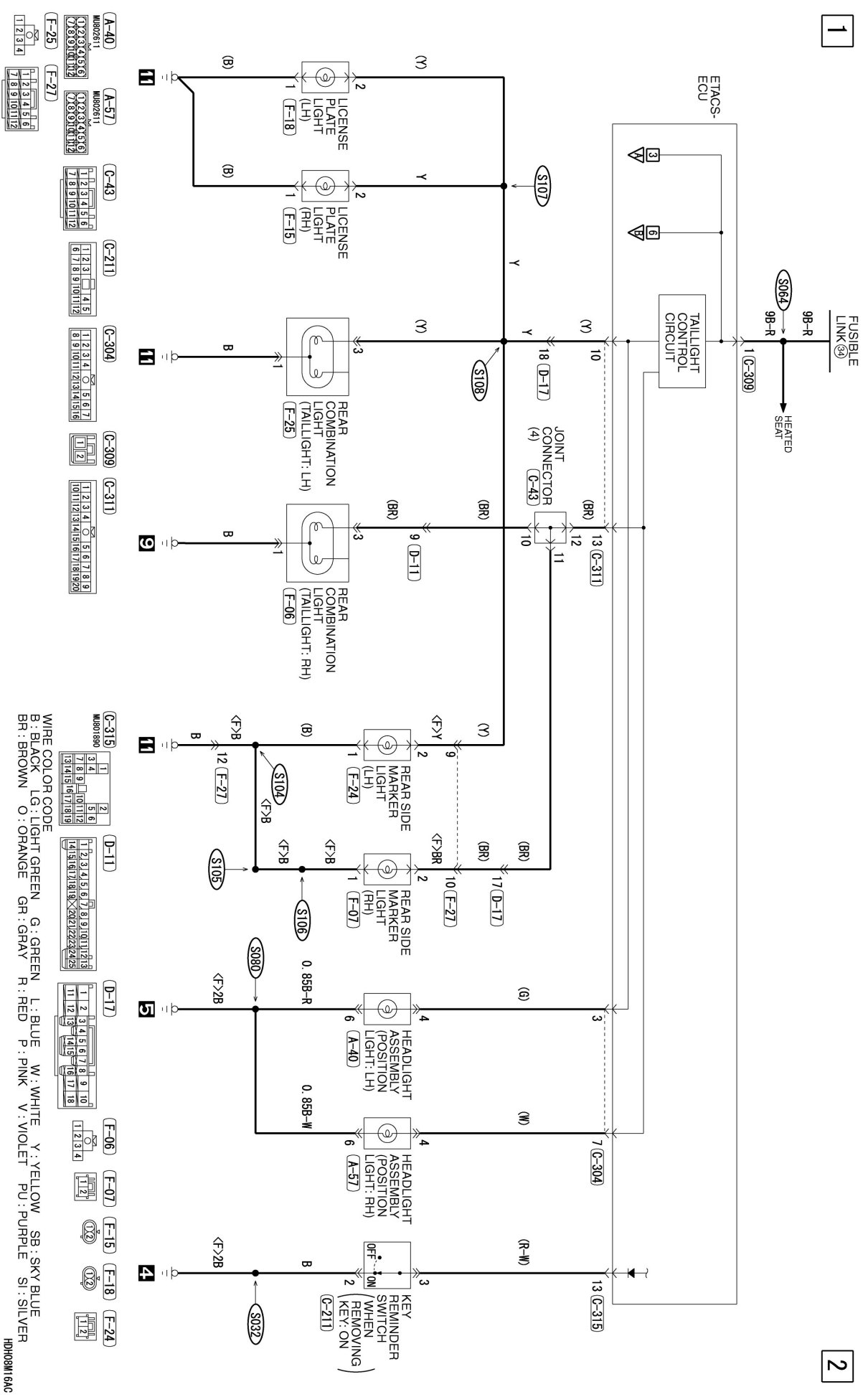

TAILLIGHT, POSITION LIGHT, LICENSE PLATE LIGHT AND LIGHTING MONITOR TONE ALARM
