Key Cylinder Lamp
Key Cylinder Lamp

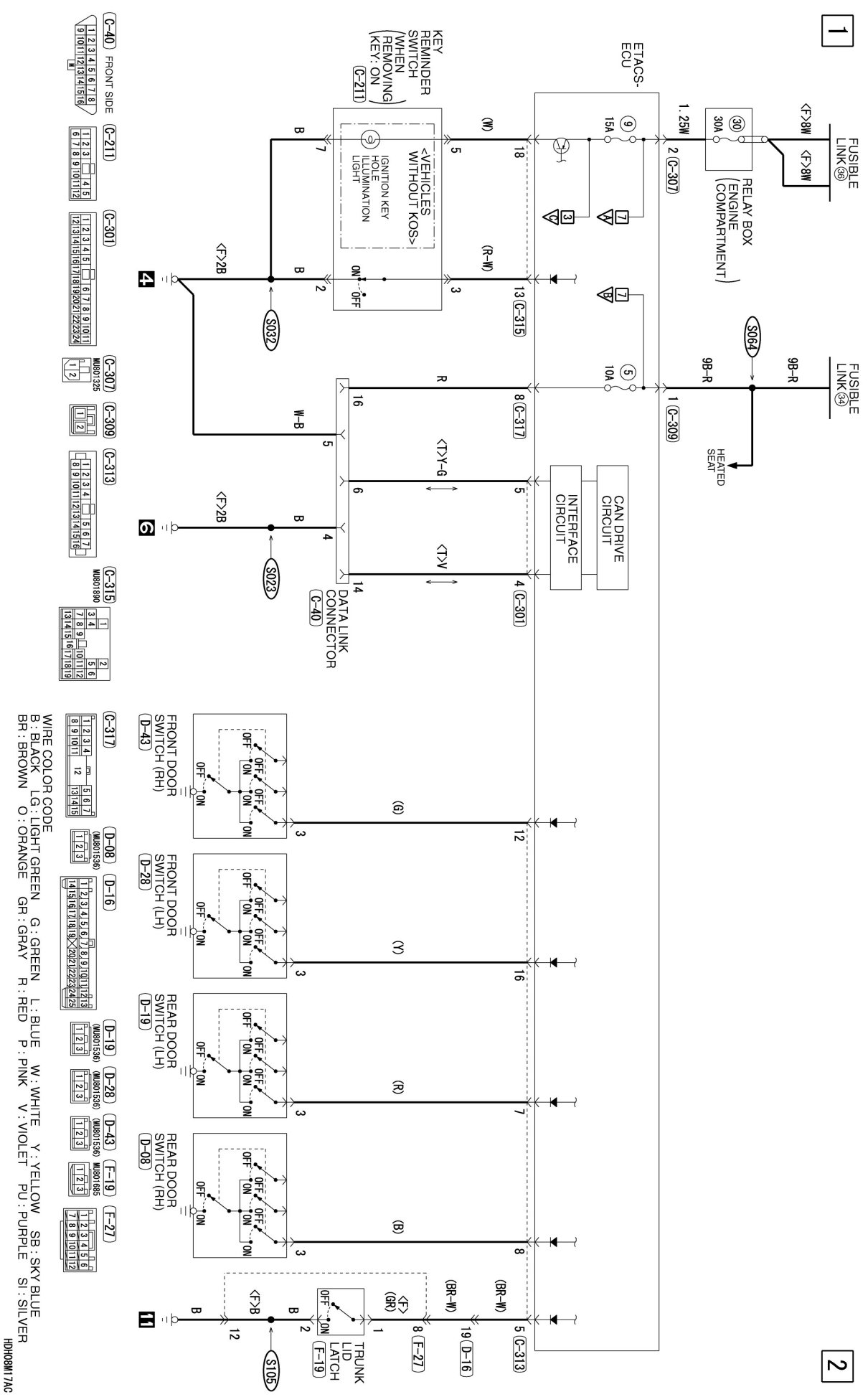

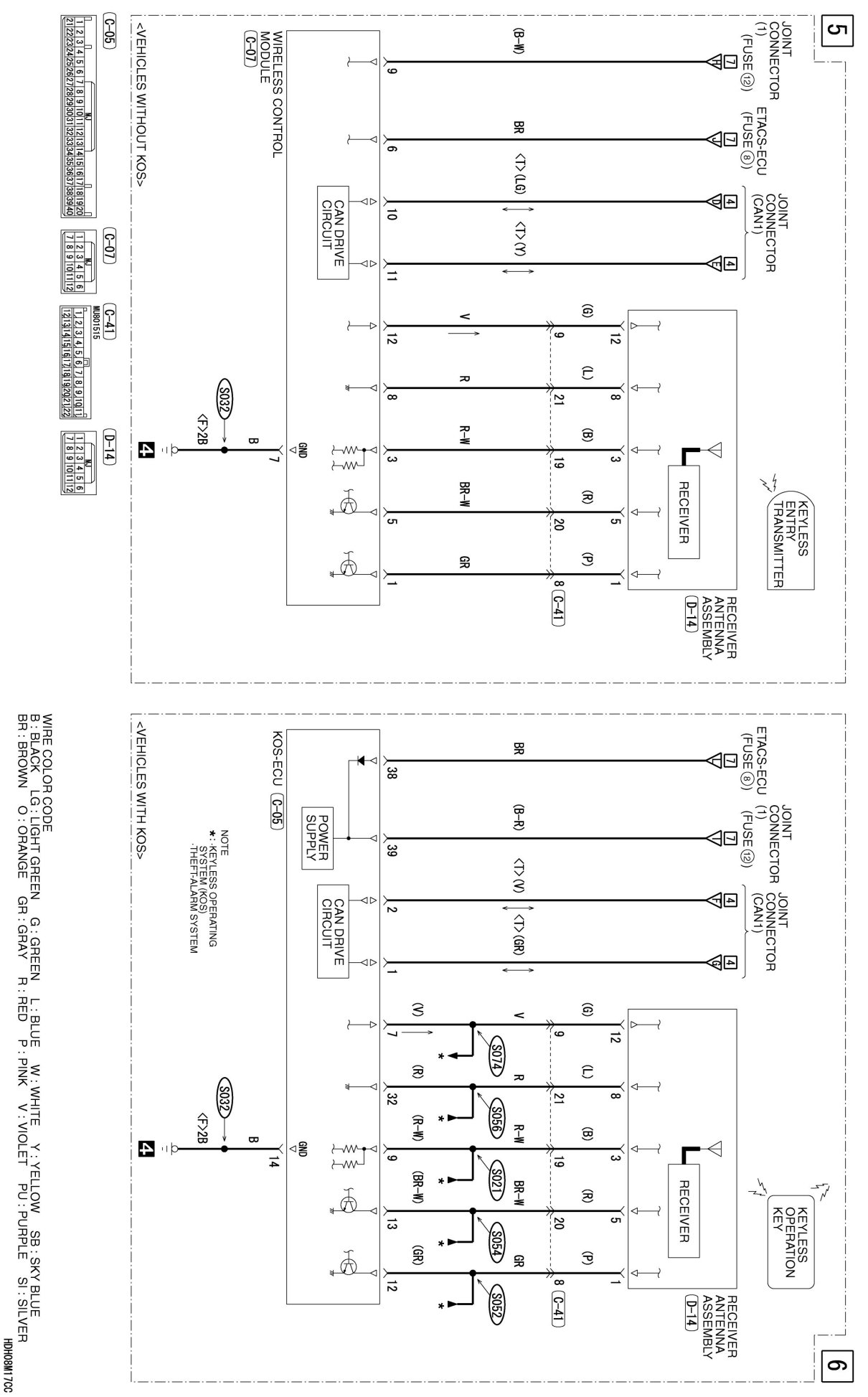

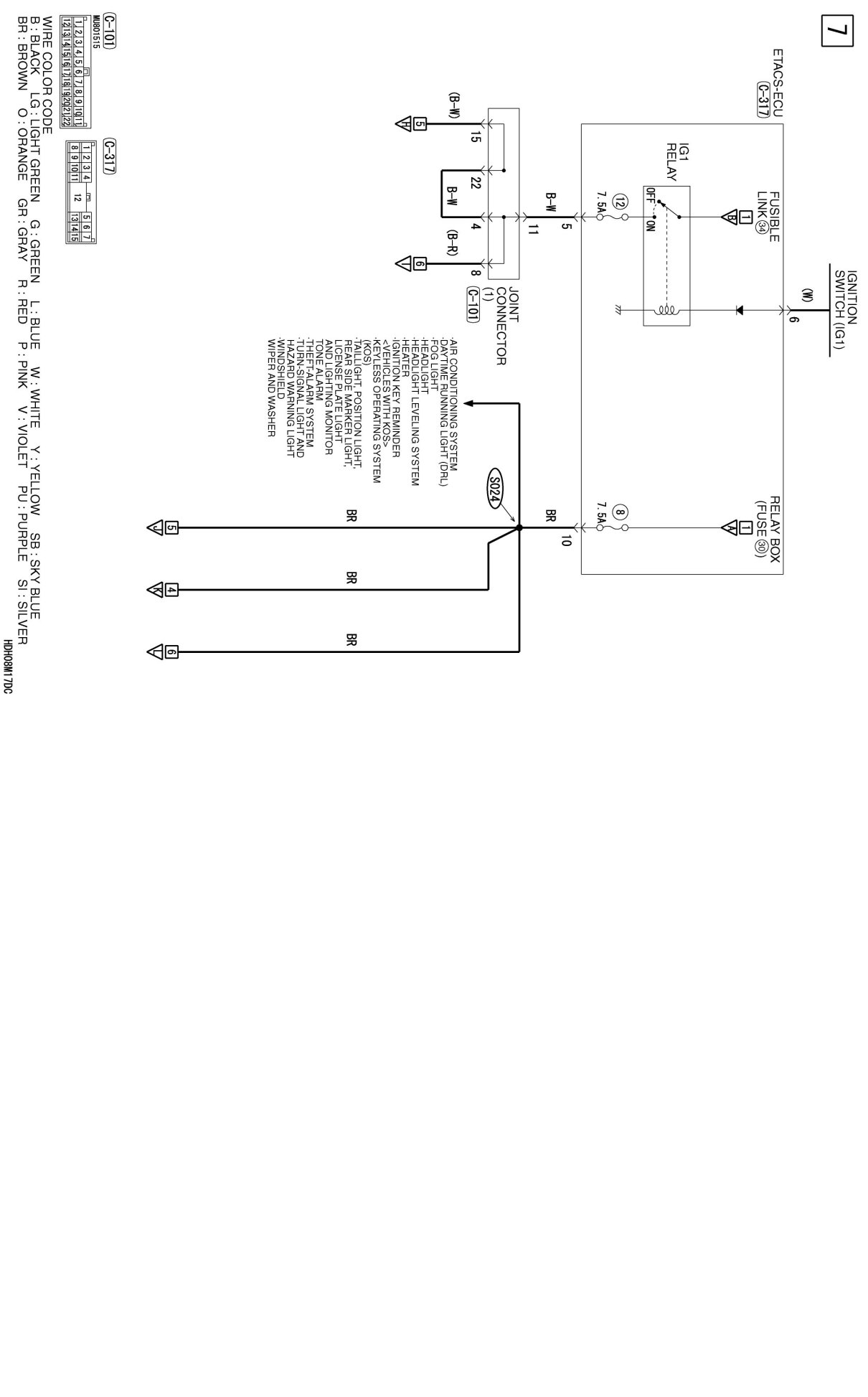

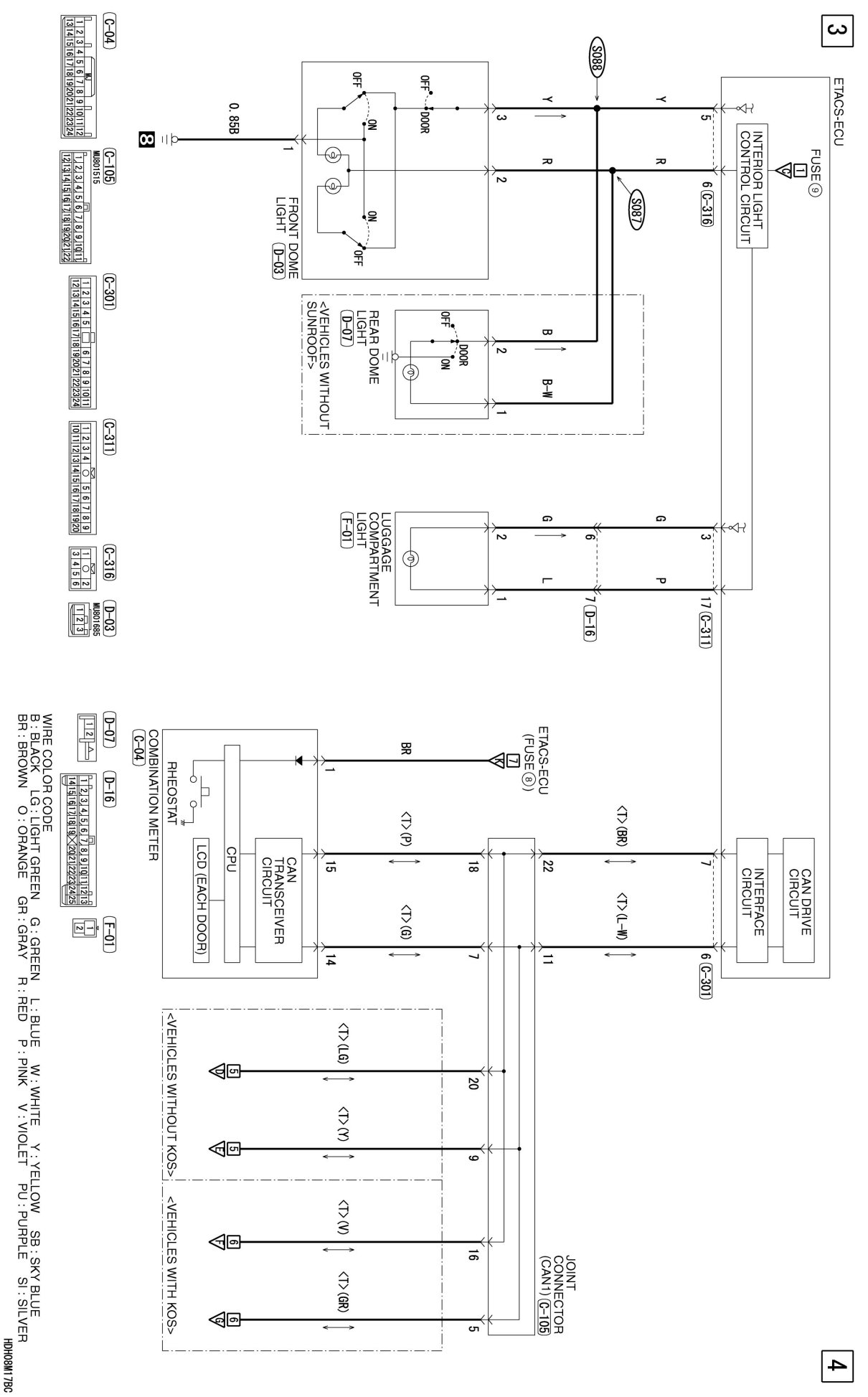

DOME LIGHT, LUGGAGE COMPARTMENT LIGHT AND IGNITION KEY HOLE ILLUMINATION LIGHT
