Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Ignition Key Reminder Tone Alarm [Vehicles Without KOS]

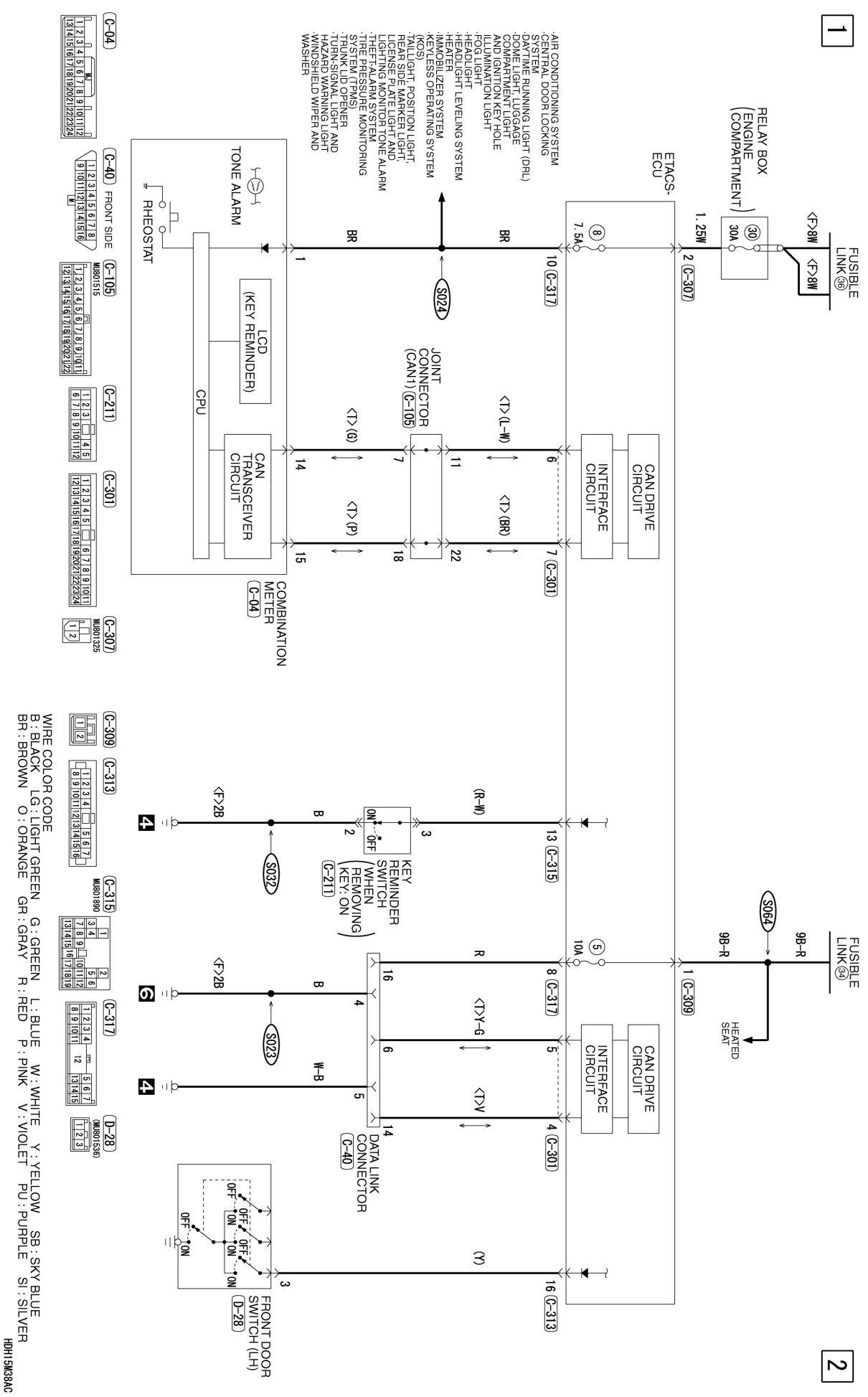

Ignition Key Reminder Tone Alarm [Vehicles Without KOS]




IGNITION KEY REMINDER TONE ALARM [VEHICLES WITHOUT KOS]
