Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Heater [Vehicles Without A/C]
Heater [Vehicles Without A/C]

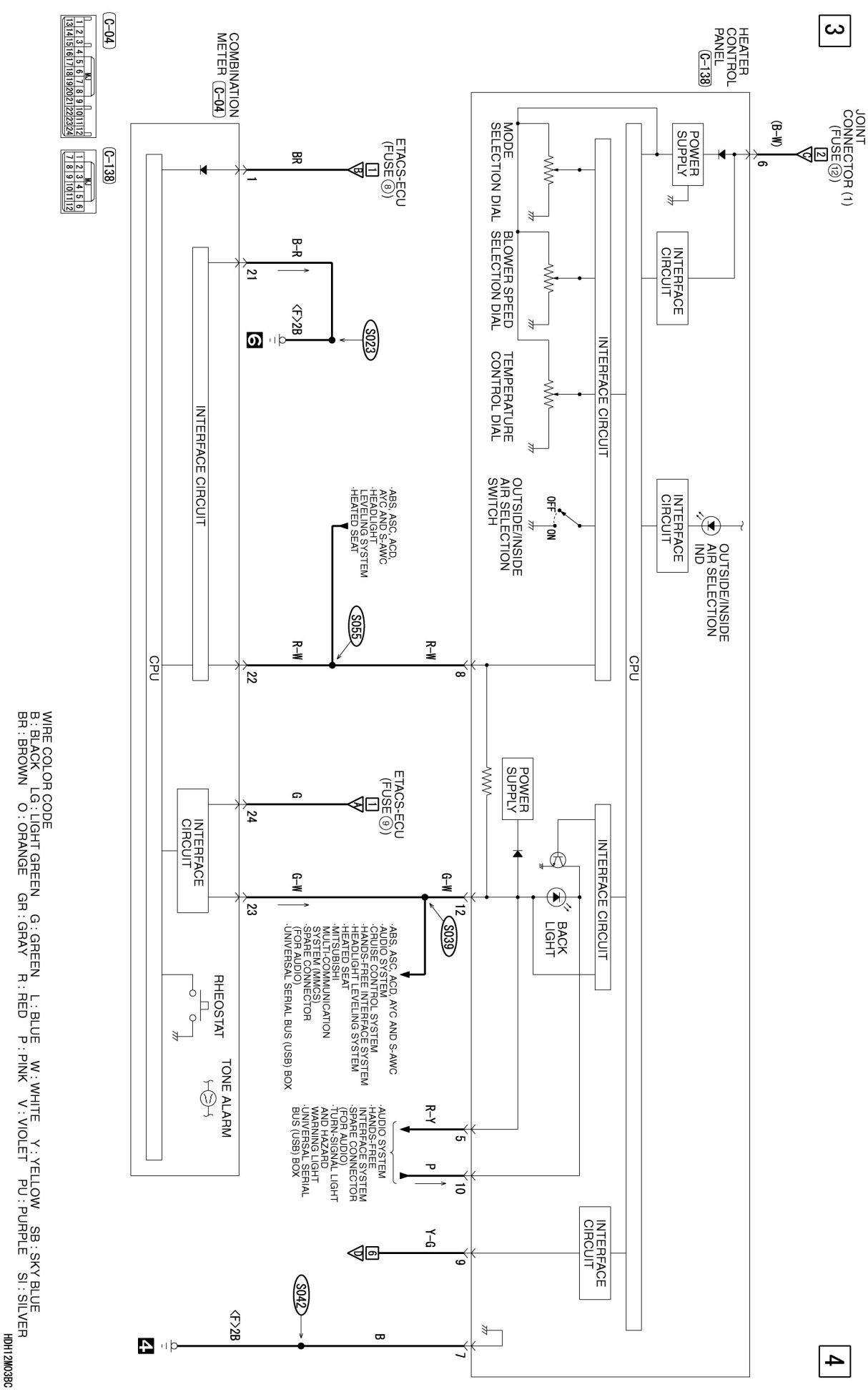

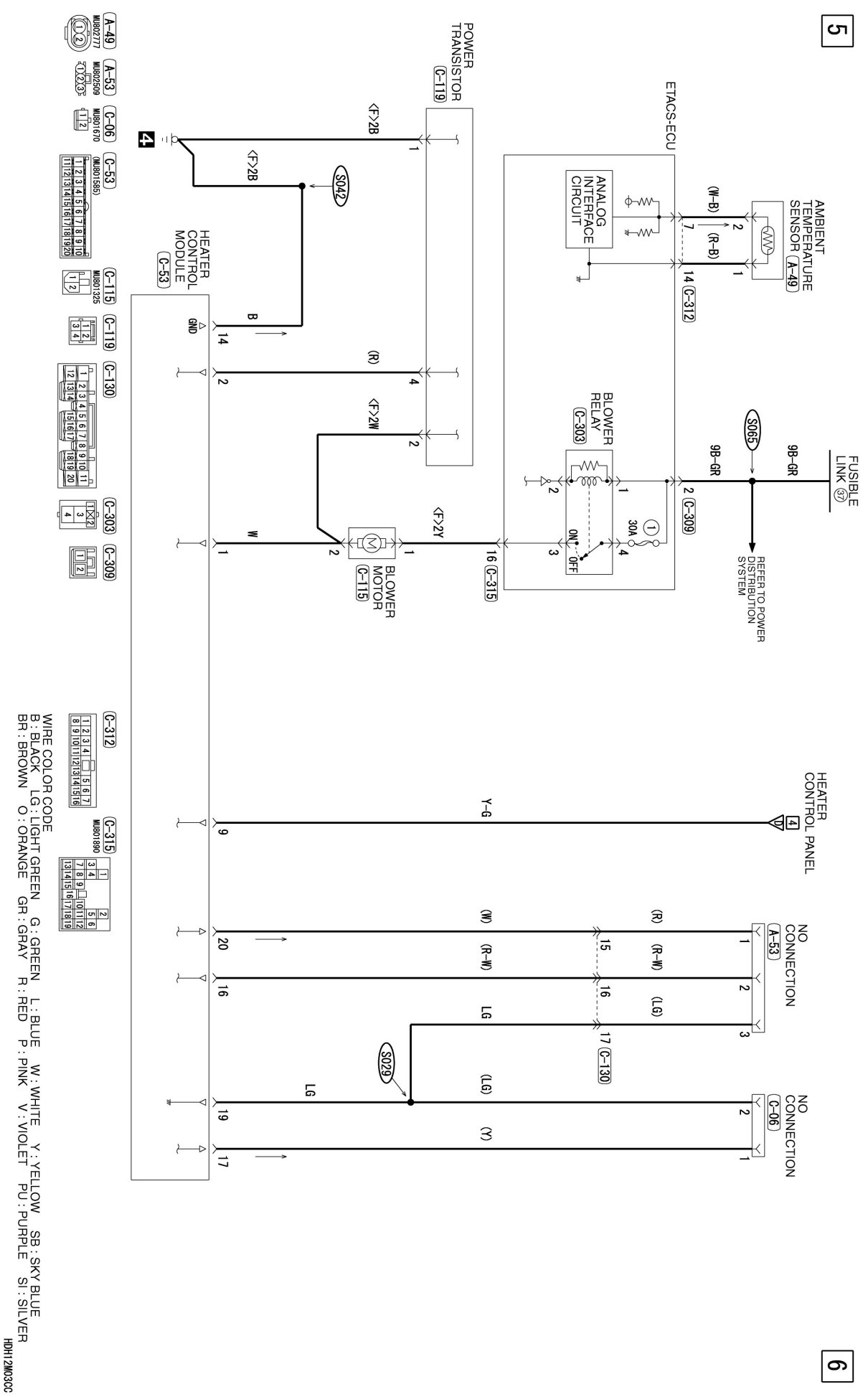

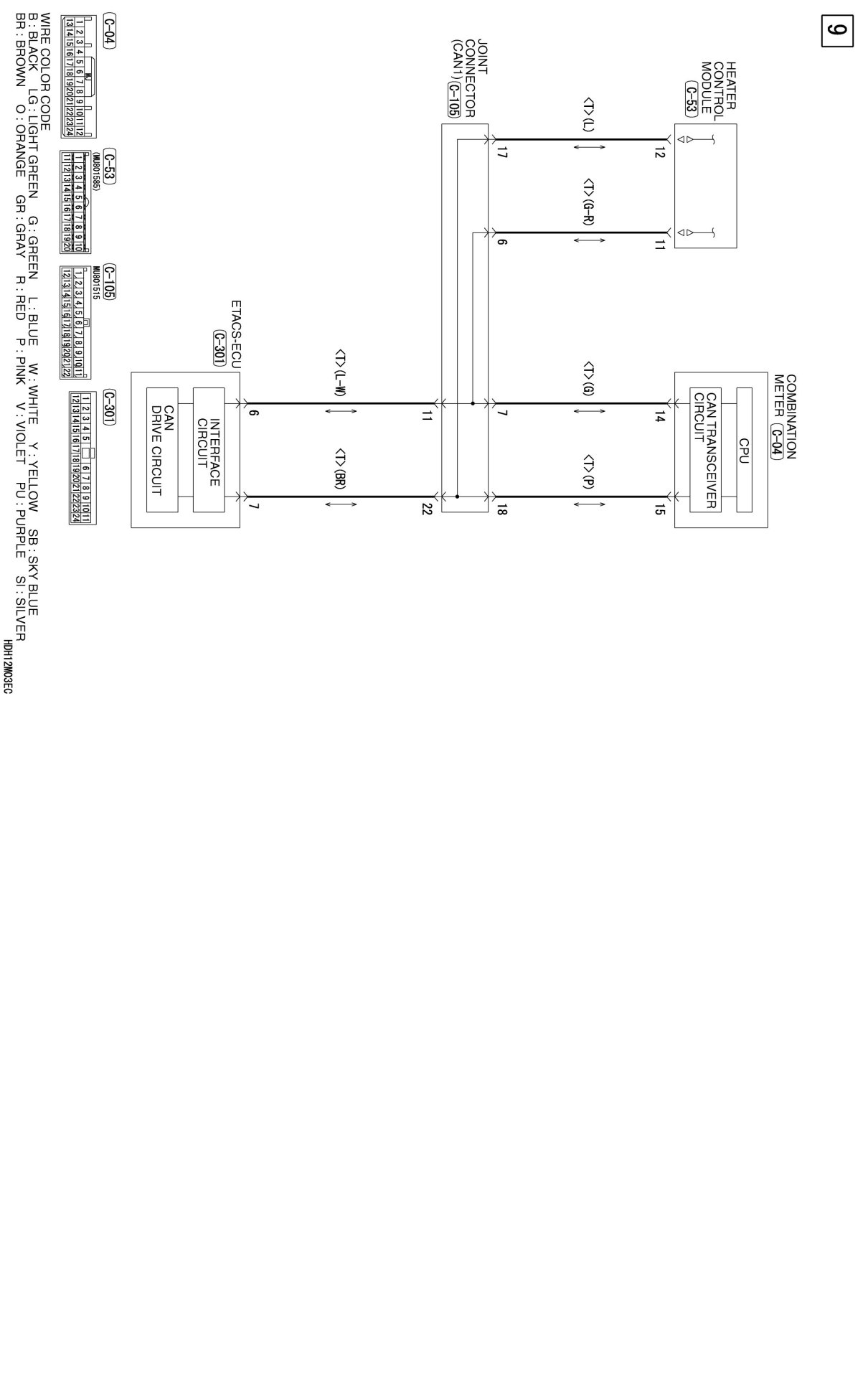

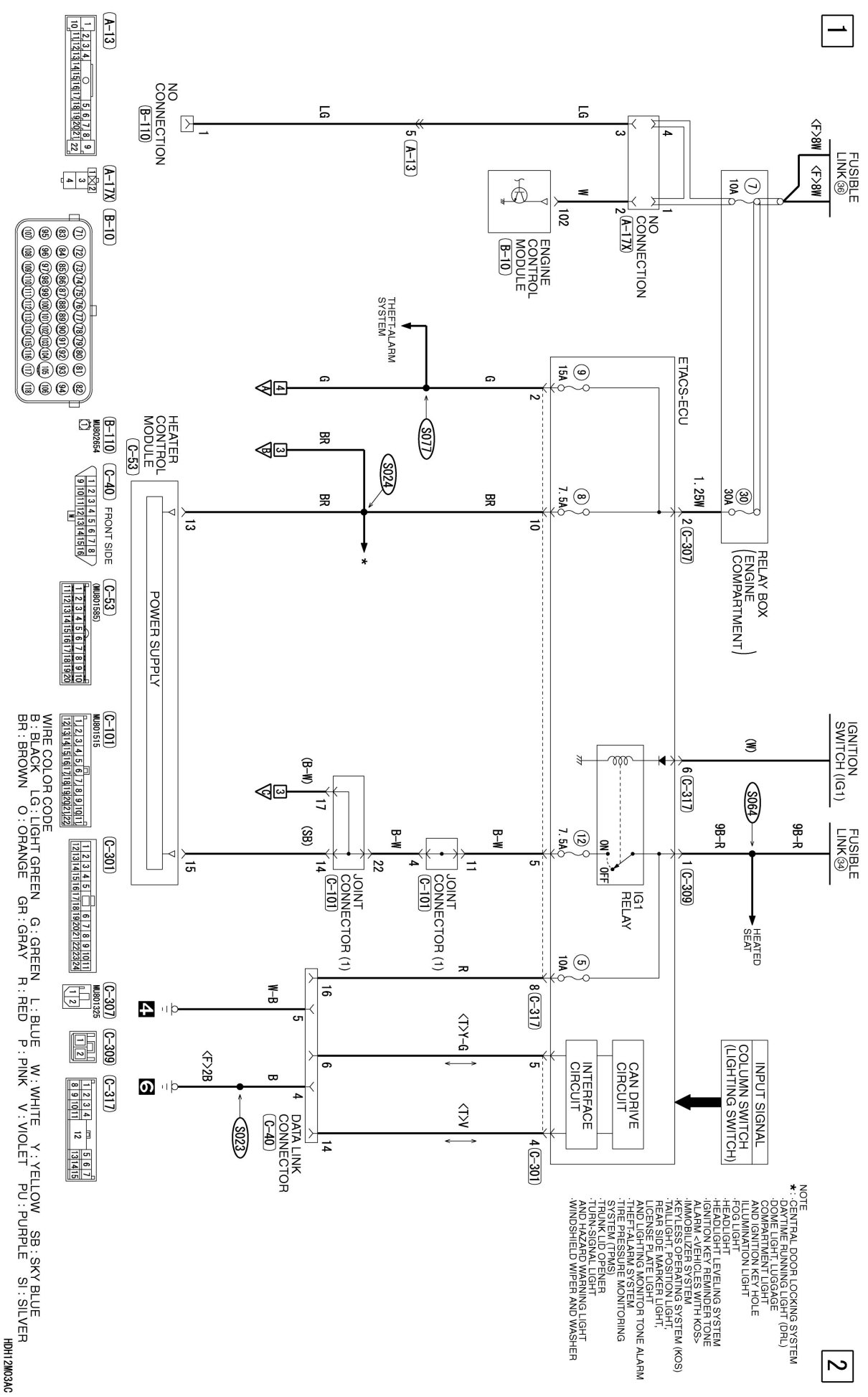

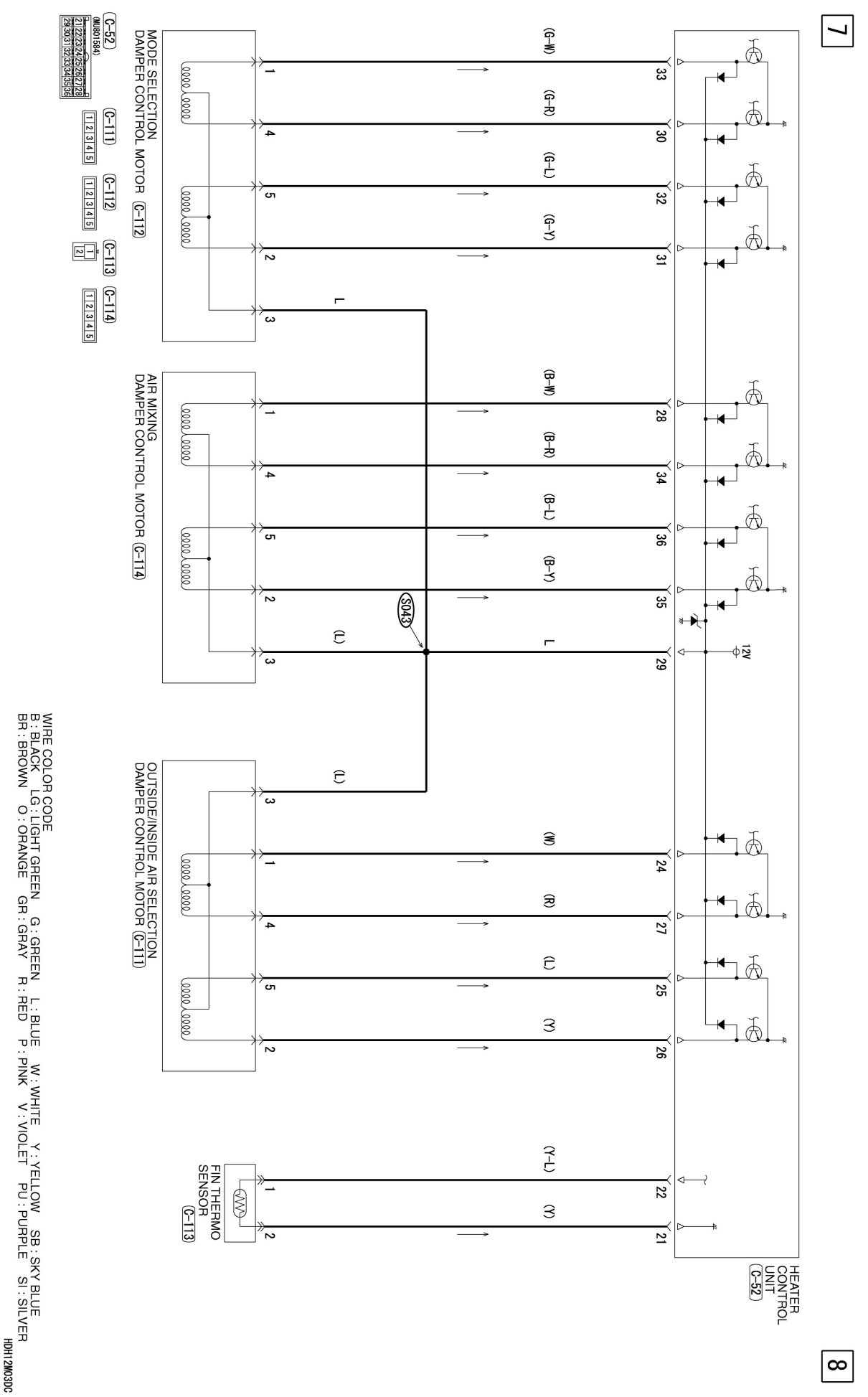

HEATER [VEHICLES WITHOUT AIR CONDITIONING SYSTEM]
