FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2012
>>
Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Daytime Running Lamp
>>
Daytime Running Light [Discharge Type Headlight]
Daytime Running Light [Discharge Type Headlight]

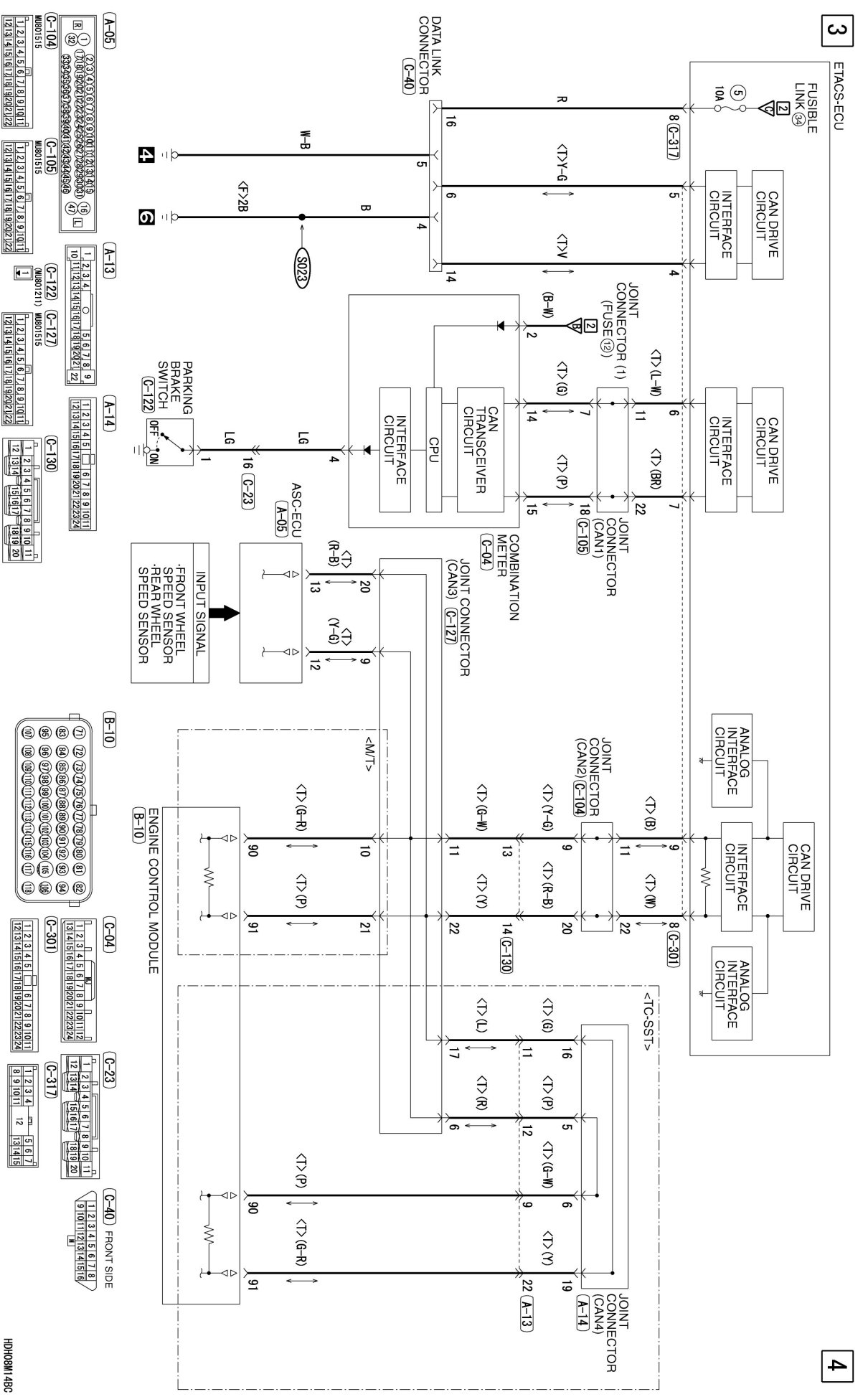

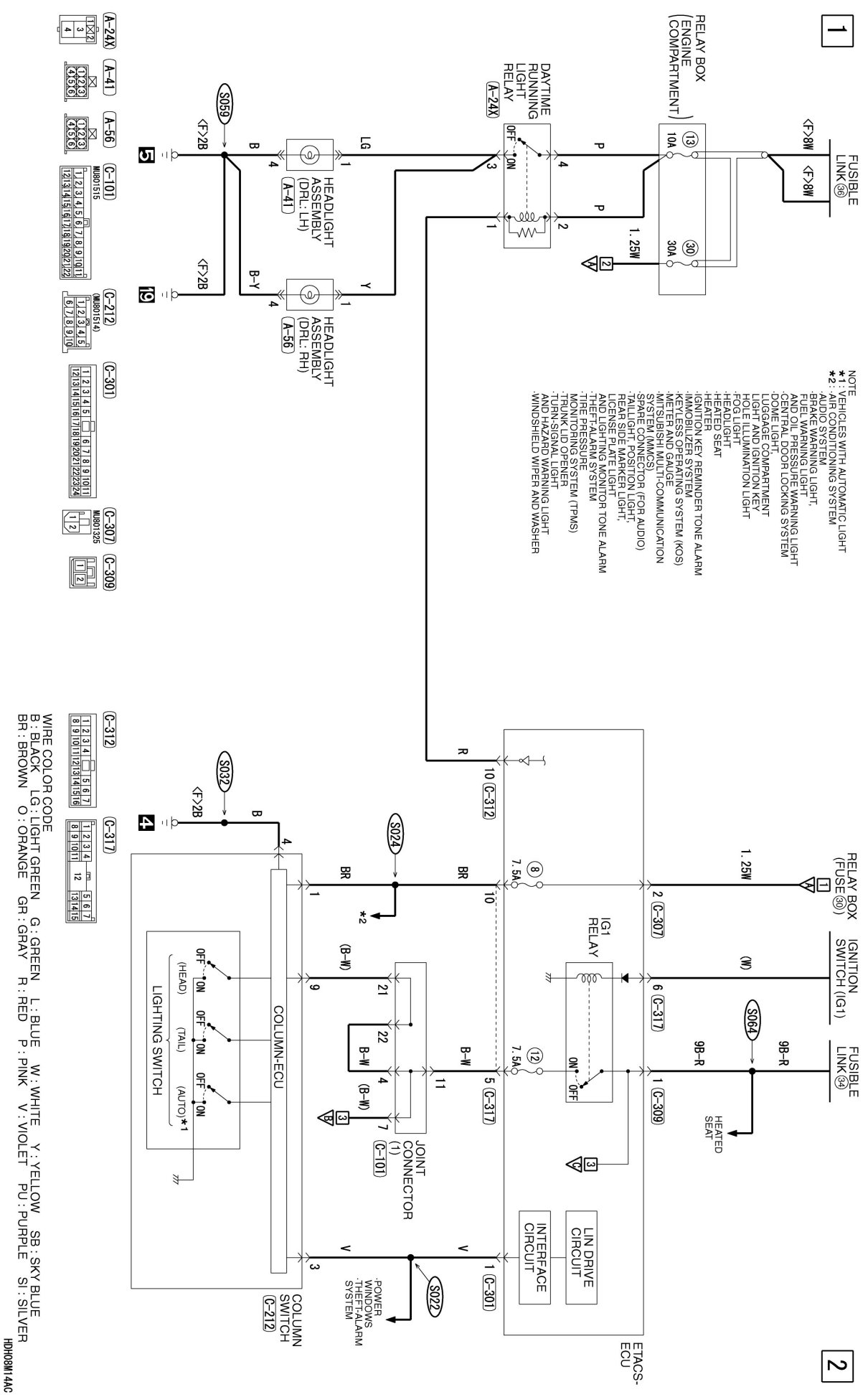

DAYTIME RUNNING LIGHT (DRL) [DISCHARGE TYPE]
