Lancer Evolution L4-2.0L Turbo (4B11T/C)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cellular Phone
>>
Spare Connector (For Hands-Free Interface System)
Spare Connector (For Hands-Free Interface System)

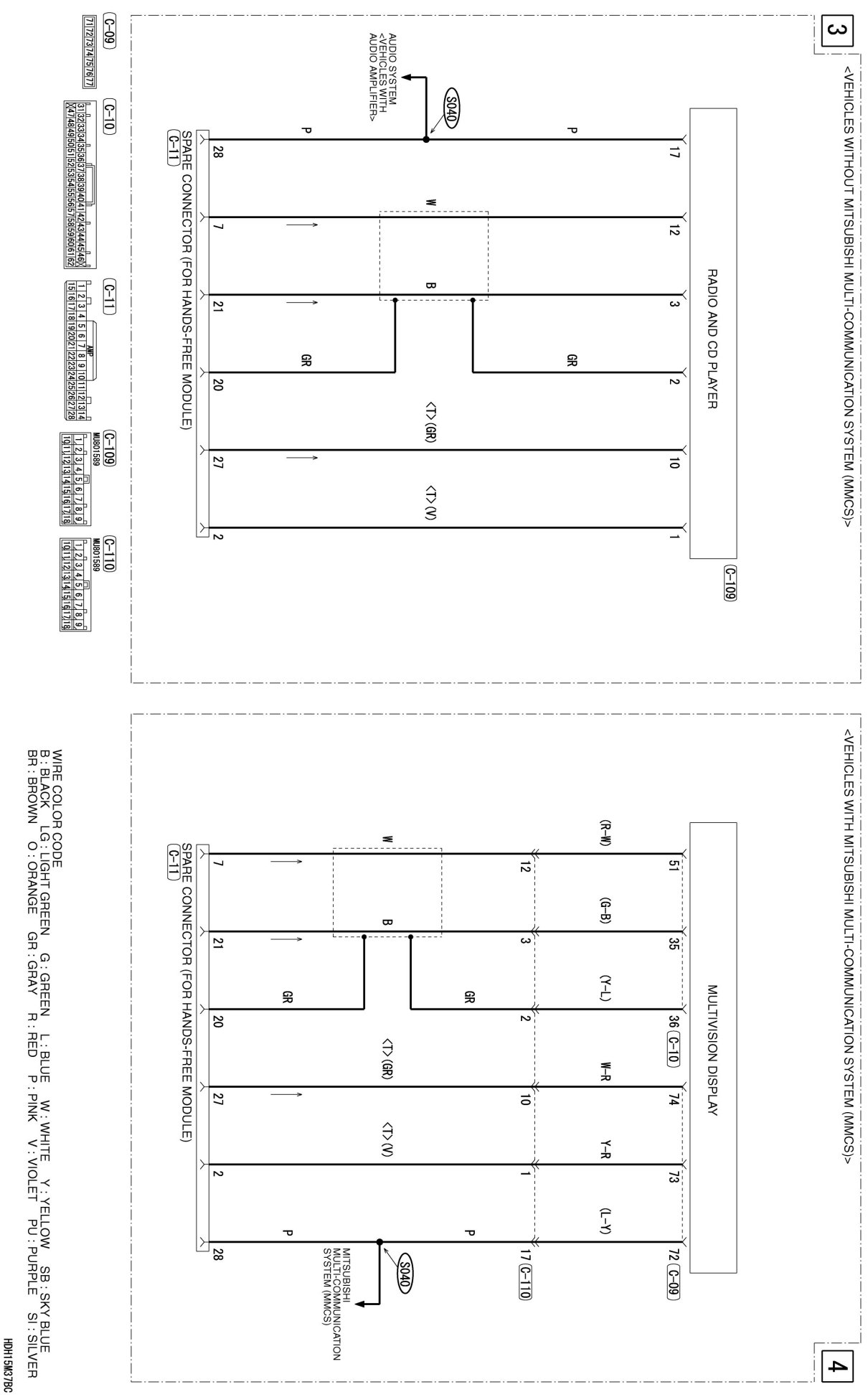

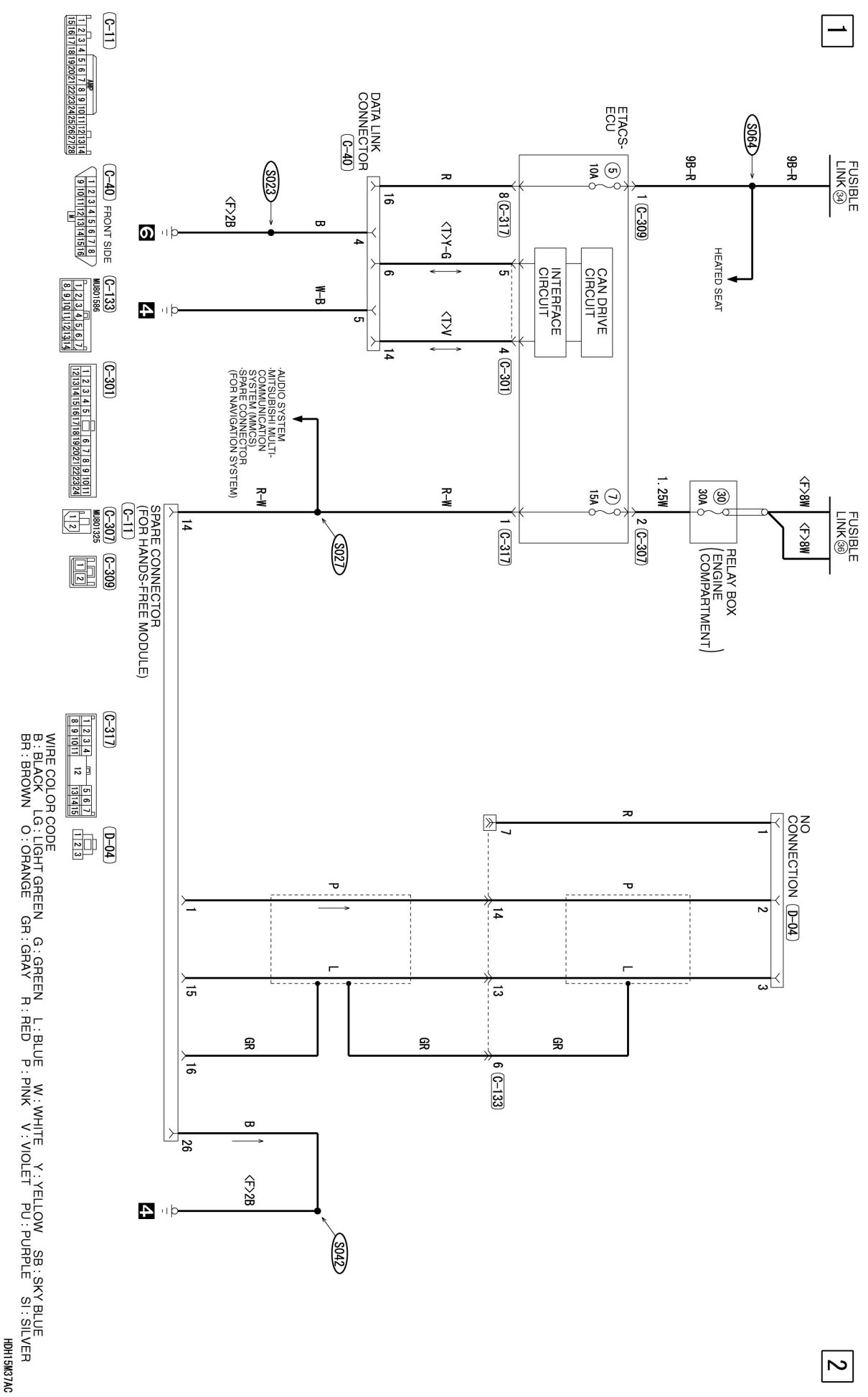

SPARE CONNECTOR (FOR HANDS-FREE INTERFACE SYSTEM)
