Diagnostic result display method when using the "CRUISE" indicator light

DIAGNOSTIC FUNCTION

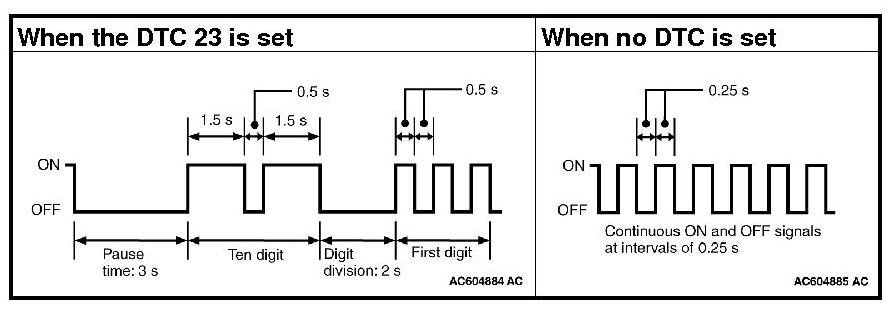

Diagnostic result display method when using the "CRUISE" indicator light





NOTE:
Other on-board diagnostic items are also output as voltage waveforms corresponding to DTC numbers.
