Steering Angle Sensor: Service and Repair

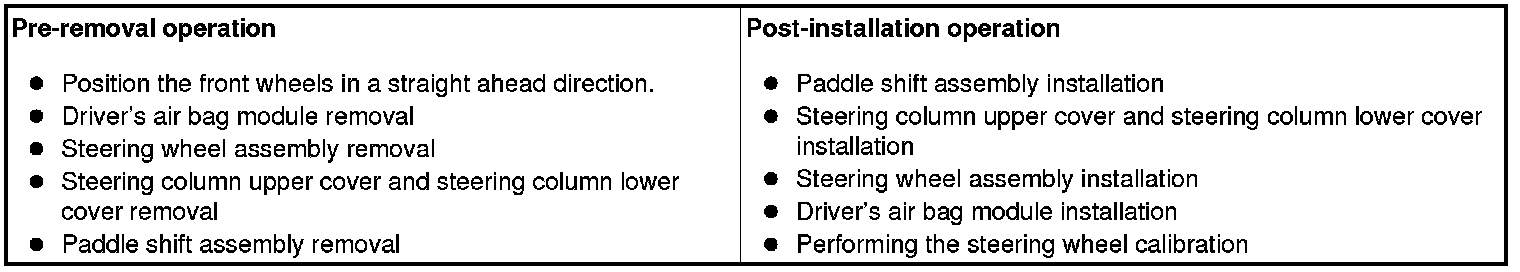

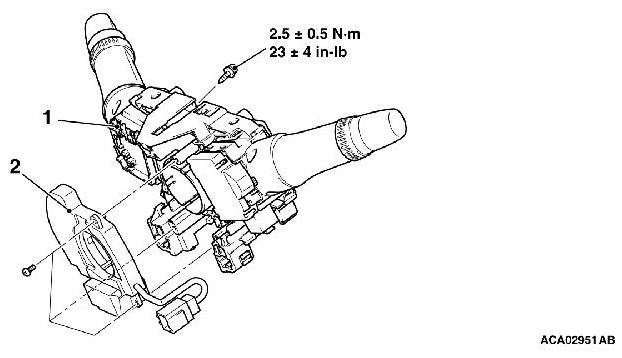

REMOVAL AND INSTALLATION

CAUTION:

- Always align the center of the clock spring before installing the steering wheel sensor. Otherwise, the sensor can be damaged.
- If the center of the clock spring is not correctly aligned, the steering wheel may not be turned fully or the cable inside the clock spring may be broken, causing the SRS air bag to be inoperative or operated incorrectly.
- Before removing the steering wheel assembly and driver's air bag module, always refer to Service Precautions Service Precautions and Driver's Air bag Module and Clock Spring Removal and Installation .
- When the steering wheel sensor is replaced, always carry out calibration to make ASC-ECU learn the neutral point (Refer to Testing and Inspection ).

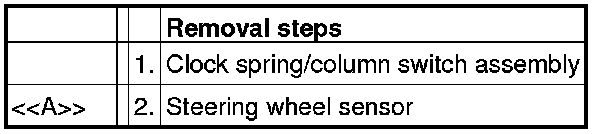

REMOVAL SERVICE POINT

[[A]] STEERING WHEEL SENSOR REMOVAL

CAUTION:
After removing the steering wheel sensor, do not rotate the sensor rotating part.
