Brake Fluid Level Sensor/Switch: Testing and Inspection

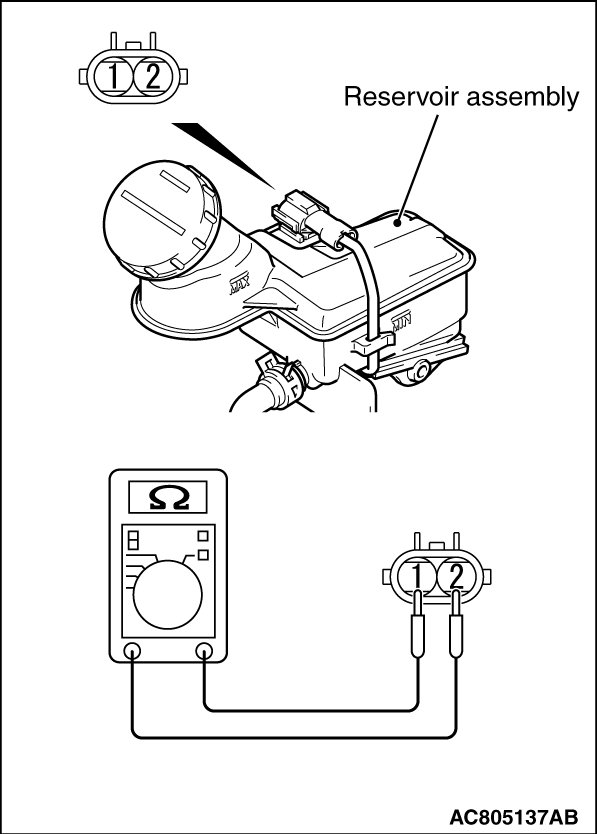

BRAKE FLUID LEVEL SWITCH CHECK





The brake fluid level switch is normal when the following conditions are met: When the brake fluid level is above "MIN," continuity is detected; and when the level is below "MIN," no continuity is detected.
