Parking Brake Cable: Service and Repair

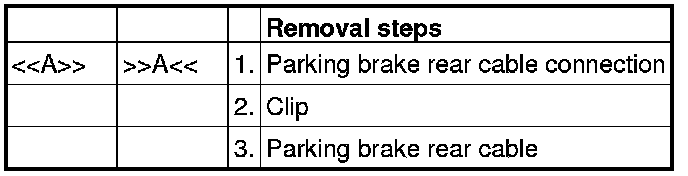

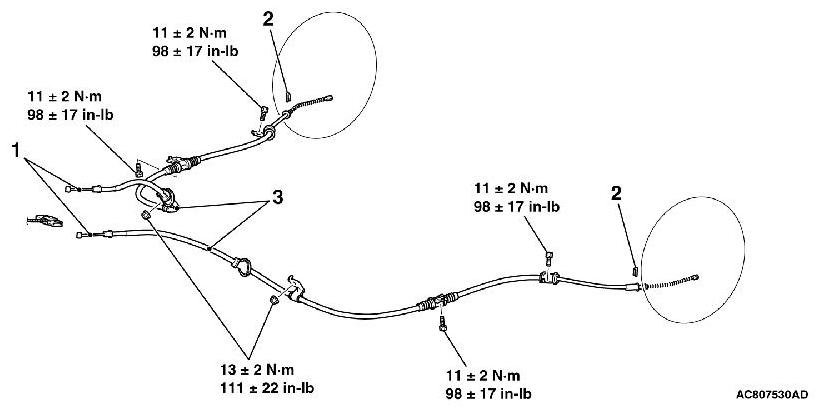

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] PARKING BRAKE REAR CABLE CONNECTION REMOVAL

Disconnect the parking brake rear cable according to the procedure below.

1. Release the parking brake, and loosen the adjusting nut.





2. Remove the floor console bracket rear mounting bolt.





3. Slide the floor console bracket rear, and disconnect the parking brake rear cable through the hole indicated with an arrow in the figure.

INSTALLATION SERVICE POINT

]]A[[ PARKING BRAKE REAR CABLE CONNECTION INSTALLATION





1.
CAUTION:
Check that the equalizer and the parking brake rear cable are connected correctly. If the parking brake is applied with the equalizer and the parking brake rear cable connected improperly, the equalizer may be damaged.

Connect the parking brake rear cable to the equalizer as shown in the figure.





2. Connect the parking brake rear cable, and tighten the floor console bracket rear mounting bolt to the specified torque.
Tightening torque: 9.5± 3.5Nm (84± 30 in-lb)
