Rear

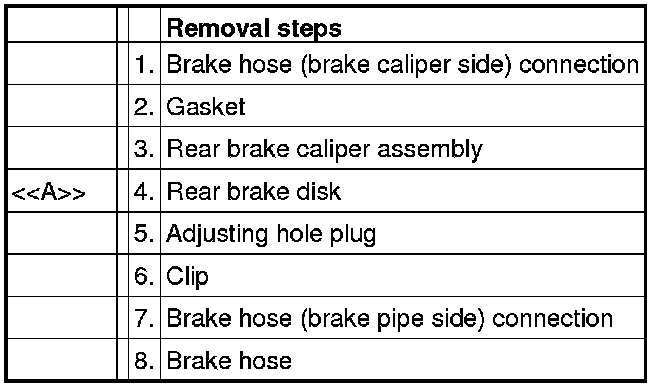

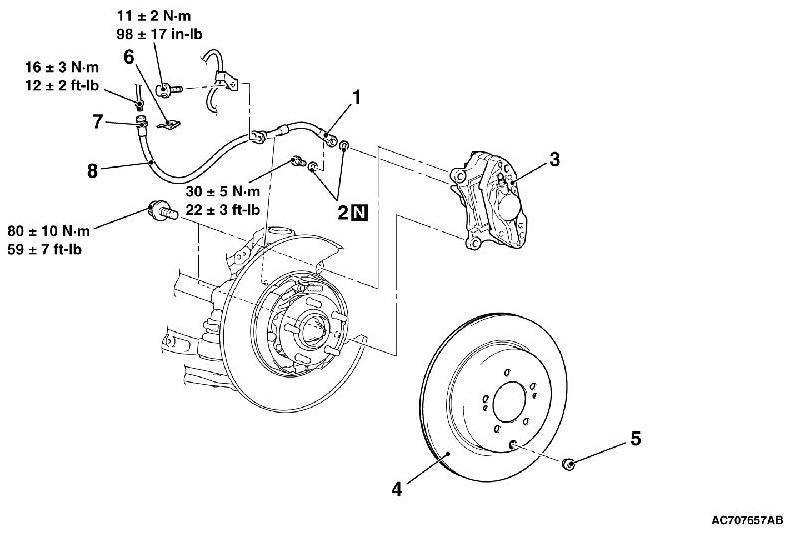

REMOVAL AND INSTALLATION

CAUTION:
Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.













REMOVAL SERVICE POINT

[[A]] FRONT BRAKE DISK REMOVAL

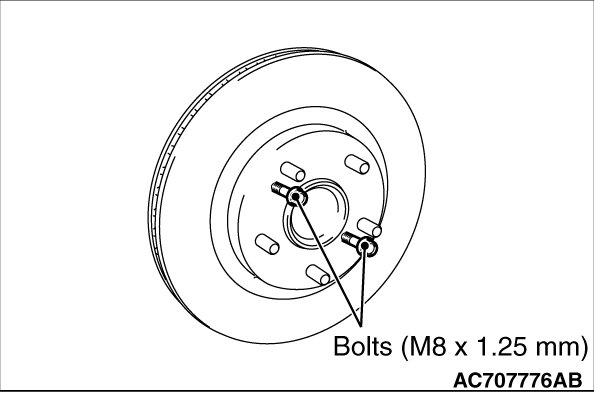

If the rear brake disk removal is difficult, install bolts (M8 x 1.25 mm) shown in the figure, and tighten them evenly and gradually to remove the rear brake disk.
