Front

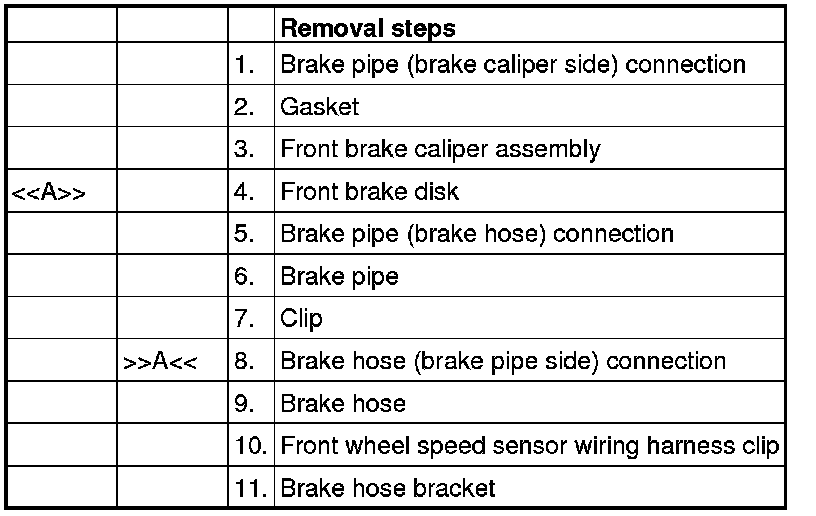

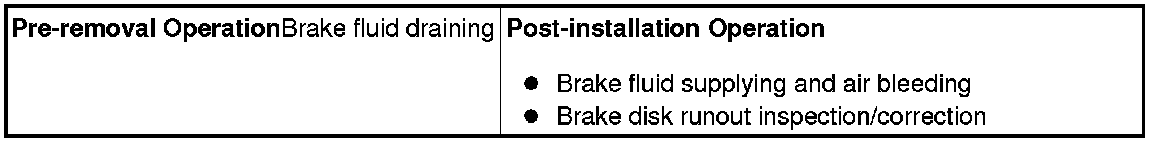

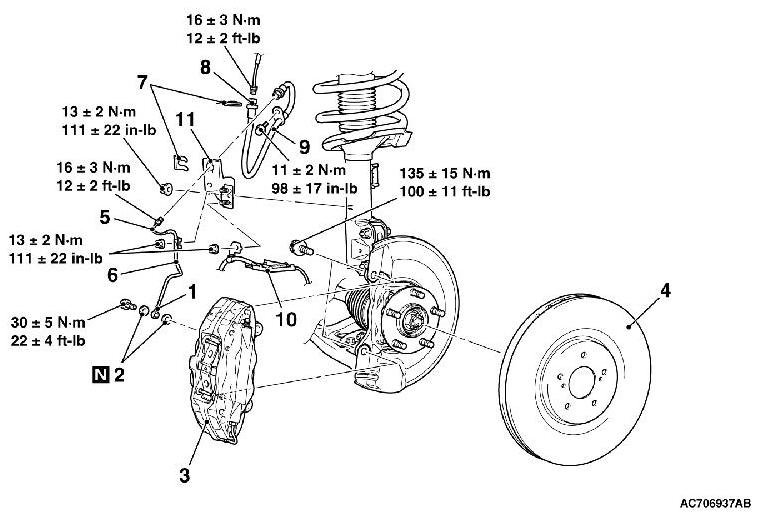

REMOVAL AND INSTALLATION

CAUTION:
Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.













REMOVAL SERVICE POINT

[[A]] FRONT BRAKE DISK REMOVAL





If the front brake disk removal is difficult, install bolts (M8 x 1.25 mm) shown in the figure, and tighten them evenly and gradually to remove the front brake disk.

INSTALLATION SERVICE POINT

]]A[[ BRAKE HOSE INSTALLATION

1. Pass the brake hose through the hole in the body-side bracket.

2. Install the brake hose to the brake caliper.

3. Install the brake hose at the two fixing points.

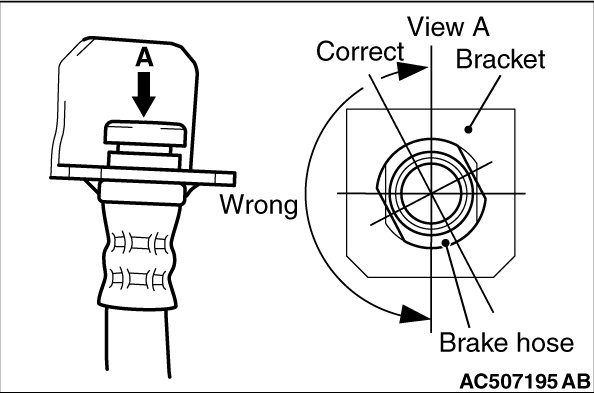

4. Twist the brake hose toward the lesser torsion between the brake hose and body-side bracket as shown in the figure, and fix it to the body-side bracket with a clip.
