Symptom Chart

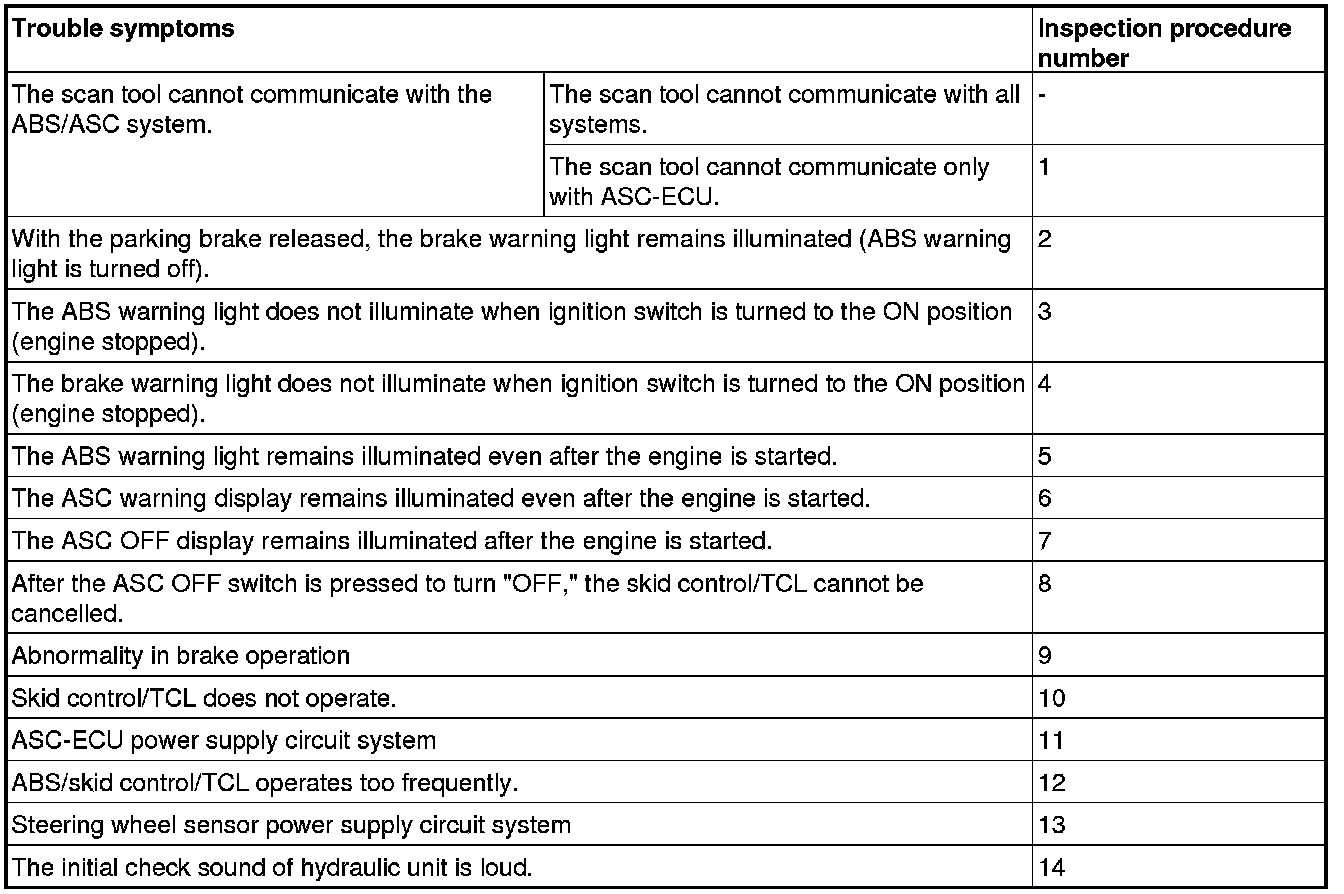

TROUBLE SYMPTOM CHART

CAUTION:

- ABS may operate in the following conditions without hard braking: Low mu road surface, high-speed turn, and bumpy road surface. When asking the customers, confirm if they have encountered ABS operation in corresponding conditions.
- Even when the ASC operation display does not appear, the ASC operation noise (pump, motor, and others) may be generated. This occurs because the pump, motor, and others operate to accumulate the braking force before the application of braking force to wheels, and it is not a malfunction.
- During ABS operation, as the brake pedal is gradually drawn inward, the noise is generated. This occurs because the brake line pressure varies intermittently to prevent the wheel lock, and it is not a malfunction.

CAUTION:
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned ON with connector(s) disconnected. On completion, confirm all systems for diagnostic trouble code(s). If diagnostic trouble code(s) are set, erase them all.
