Actuator Test Reference Table

ACTUATOR TEST REFERENCE TABLE

Using scan tool, the following actuators can be forcibly operated:
NOTE:

- ABS, TCL, and stability control are operated by ASC-ECU.
- When ASC-ECU is disabled due to the fail-safe function, the actuator test cannot be performed.
- The actuator test can be performed only when the vehicle is stationary.
- While the actuator test is performed, the ABS warning light flashes at a rate of 2 Hz.
- After the actuator test has been performed, the brake warning light, ABS warning light, ASC ON indicator light, and ASC OFF indicator light illuminate until the ignition switch is turned to ON again or the communication between scan tool and ASC-ECU is terminated.

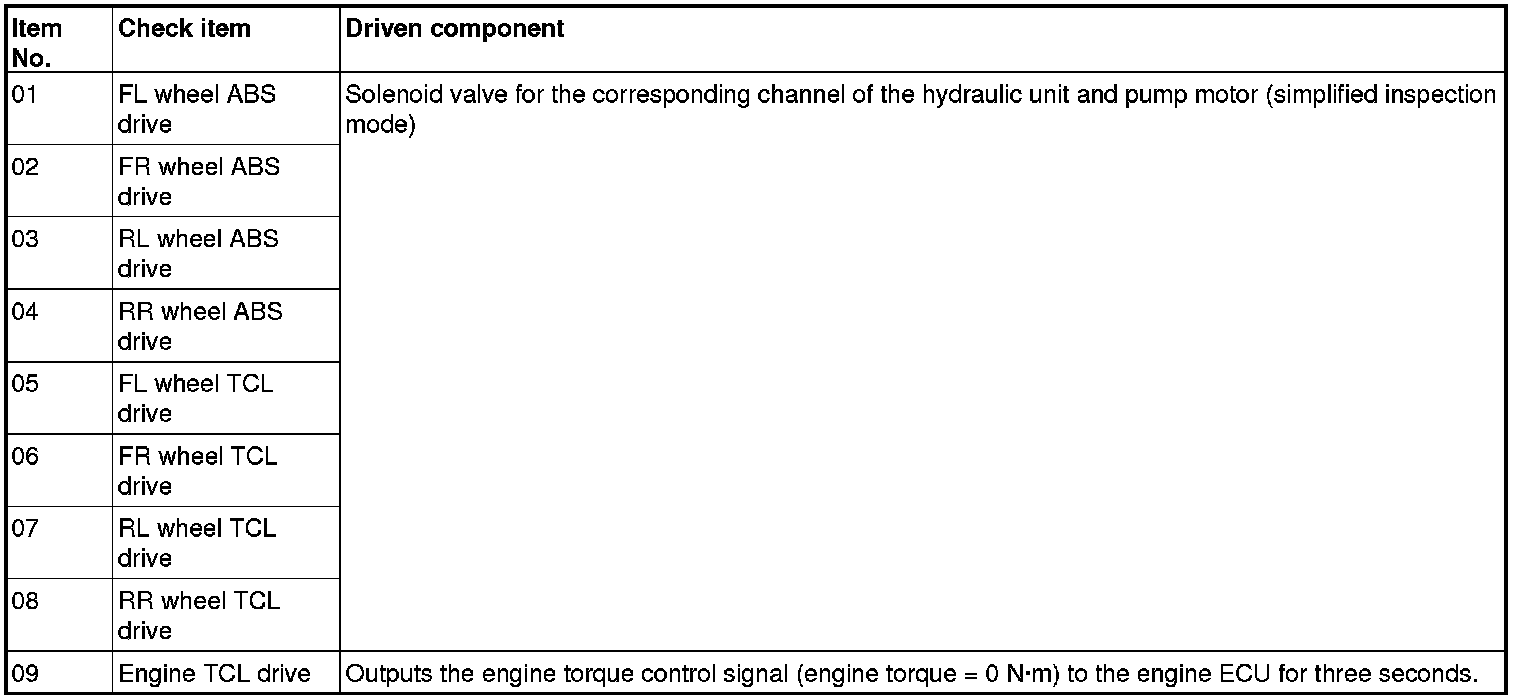

Actuator test specifications

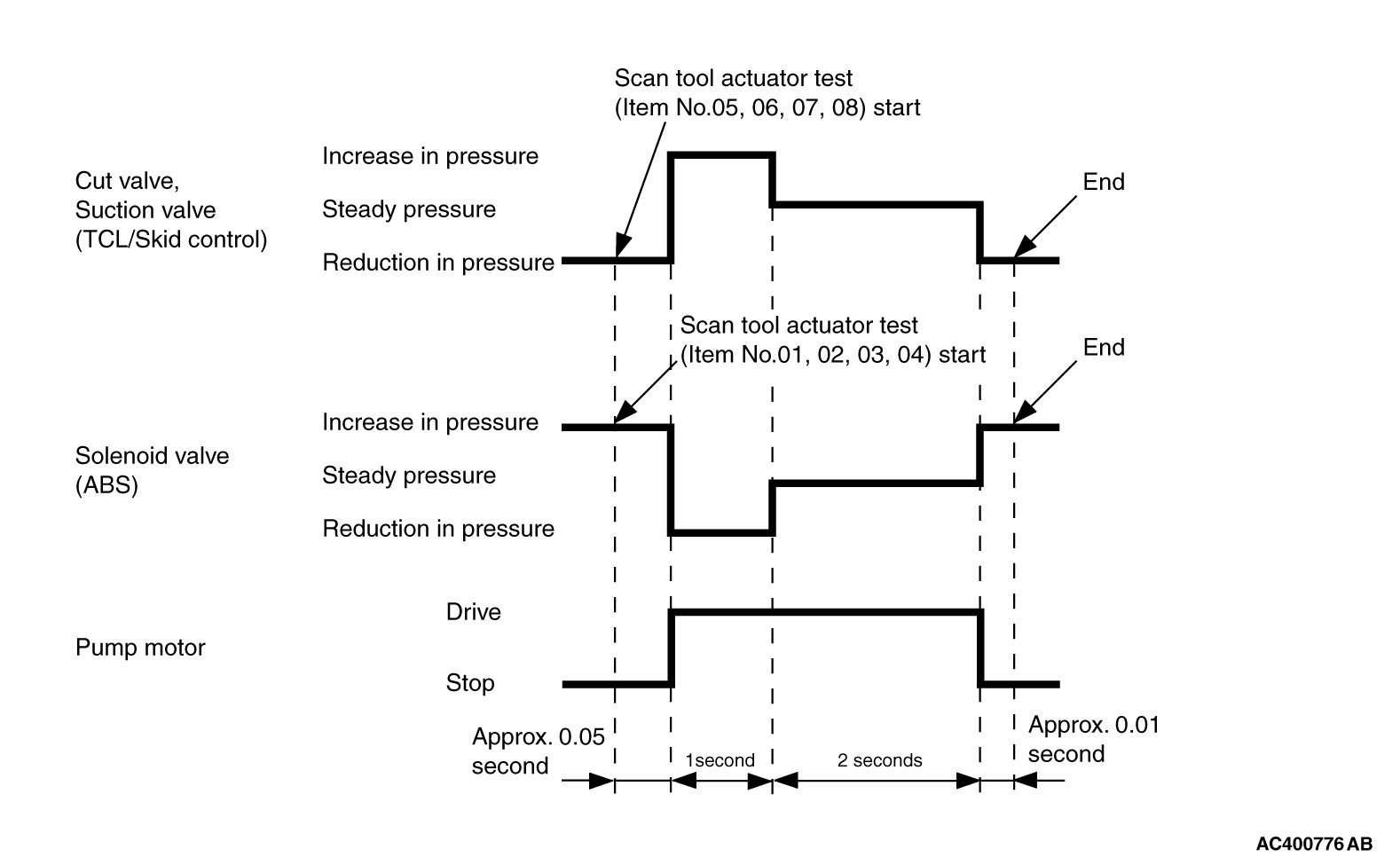

Operation pattern of items 01 to 08
