Notes With Regard to Diagnosis

PRECAUTIONS FOR DIAGNOSIS

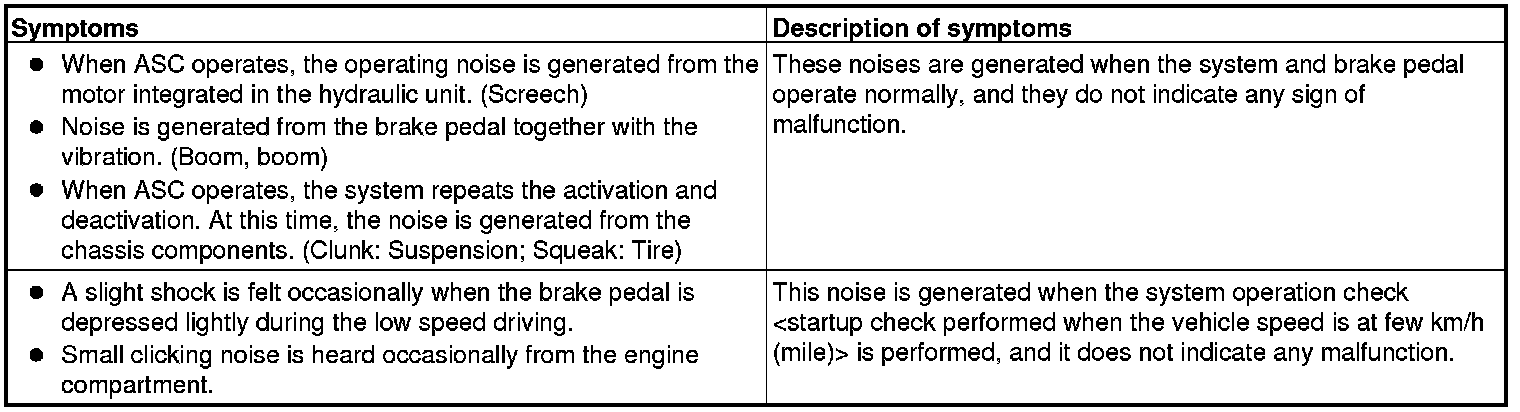

1. ASC controls the brake pressure by the assistance of ECU. The symptoms described in the table below may occur during the normal ASC operation. However, they do not indicate any sign of malfunction.





2. On snowy or gravel roads, a vehicle with ABS sometimes requires a longer braking distance compared to the one without ABS. Considering this characteristics, advise the customer to drive the vehicle safely at lower speed and not to place too much confidence on the ABS system when driving on such roads.

3. The detection conditions of diagnostic trouble code differ with each diagnostic trouble code. When the trouble symptoms are rechecked, conditions described in the description for the diagnostic trouble code procedures must be satisfied.
