Rear Seat Assembly Removal and Installation

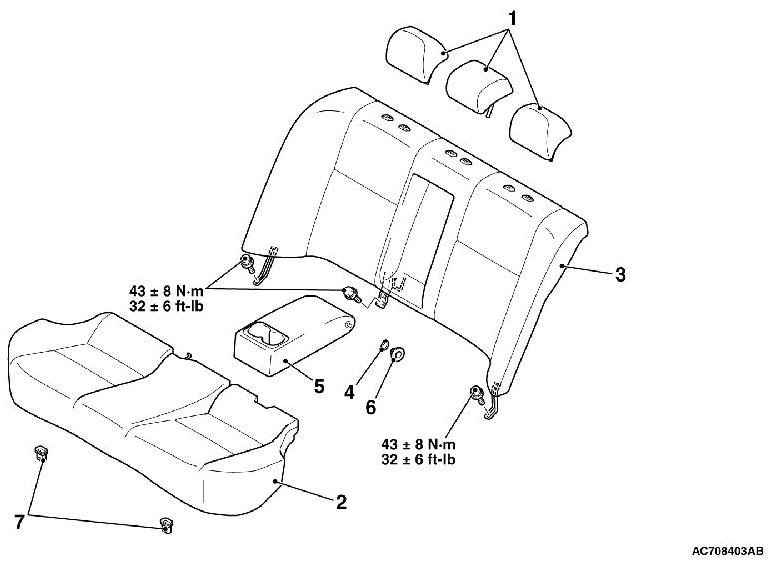

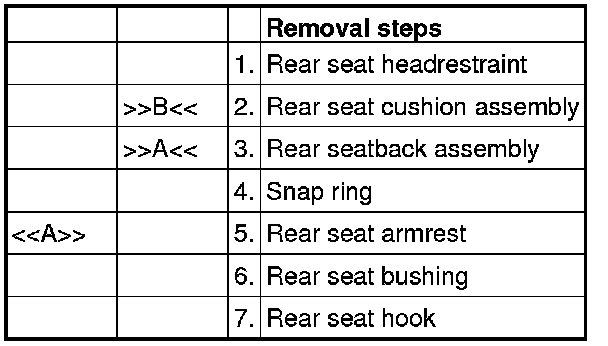

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

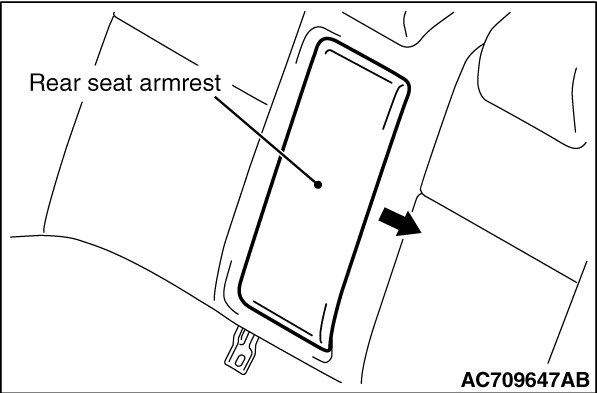

[[A]]REAR SEAT ARMREST REMOVAL





Slide the armrest to the left and remove it from the right side as shown in the figure.

INSTALLATION SERVICE POINTS

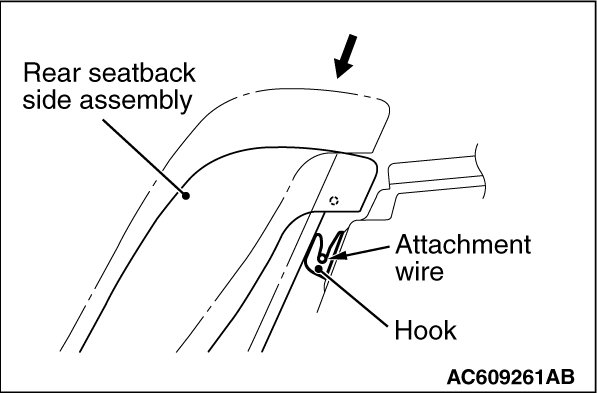

]]A[[ INSTALLATION OF REAR SEATBACK SIDE ASSEMBLY (LH)/REAR SEATBACK SIDE ASSEMBLY (RH)





Press the rear seatback side assembly in the direction shown in the illustration and fit the attachment wire into the hook securely to install the rear seatback side assembly.

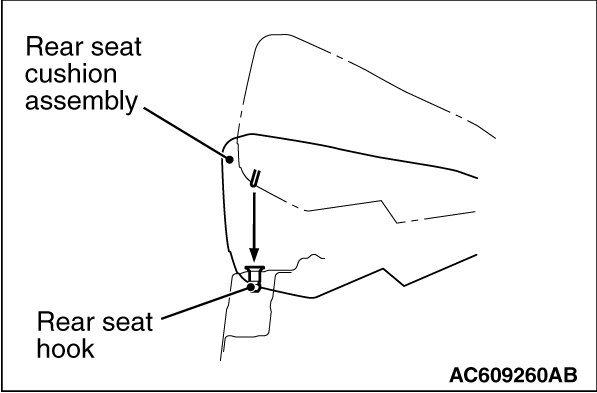

]]B[[ INSTALLATION OF REAR SEAT CUSHION ASSEMBLY





Fit the rear seat cushion into the rear seat hook securely.
