Front Seat Assembly Removal and Installation

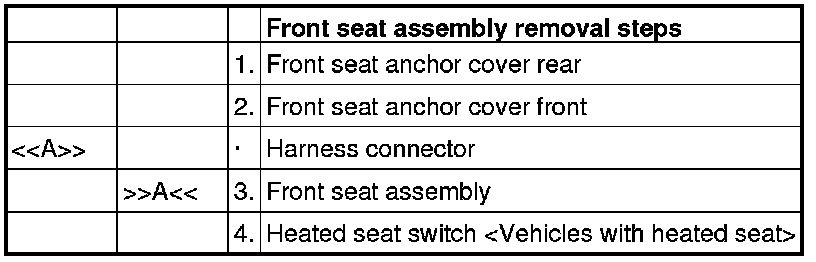

REMOVAL AND INSTALLATION

WARNING:
Before removing the front seat assembly, refer to Service Precautions Service Precautions and Air Bag Module and Clock Spring Removal and Installation.









REMOVAL SERVICE POINT

[[A]] WIRING HARNESS CONNECTOR DISCONNECTION

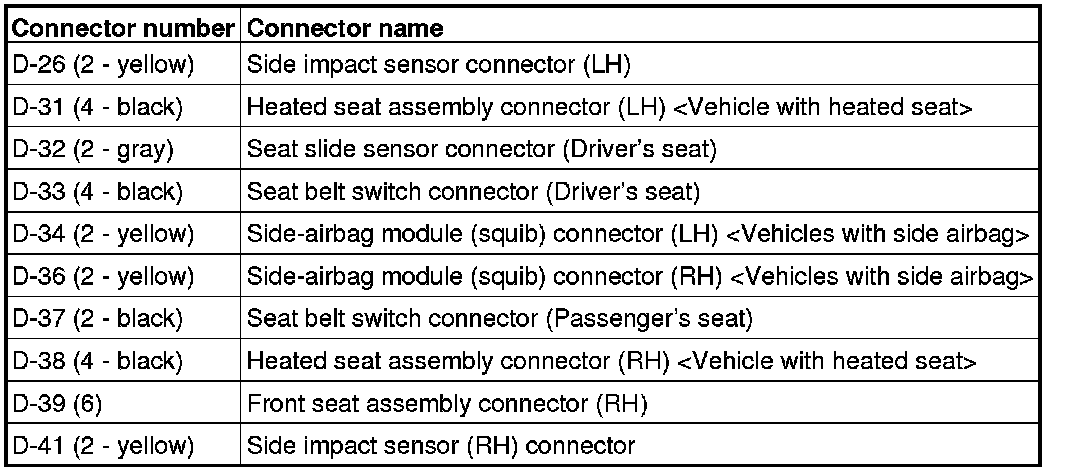

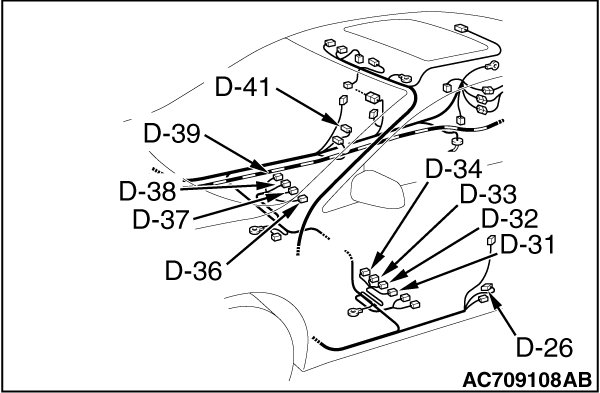

Disconnect the following wiring harness connectors:










NOTE:

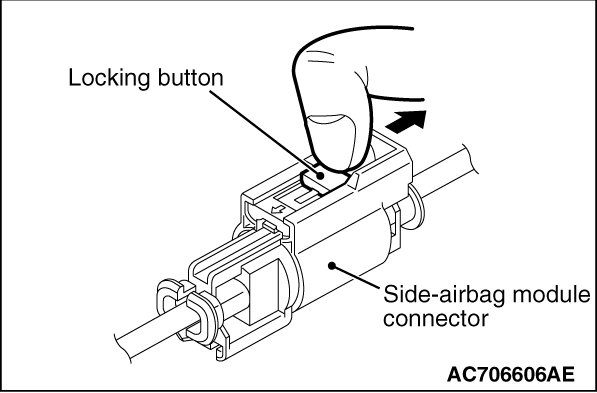

When disconnecting the side air bag module connectors of D-34 and D-36, unlock the connector by sliding the locking button to the direction of the arrow as shown in the figure, and then disconnect the connector.

INSTALLATION SERVICE POINT

]]A[[ FRONT SEAT ASSEMBLY INSTALLATION

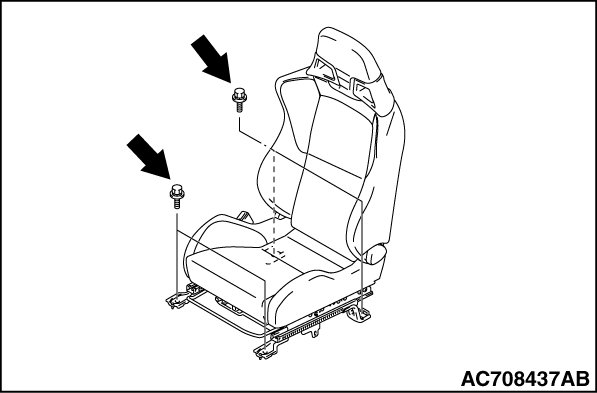

1. Temporarily tighten the bolts in all mounting locations shown in the illustration with no load applied to the front seat cushion and check the operation of the seat slide.

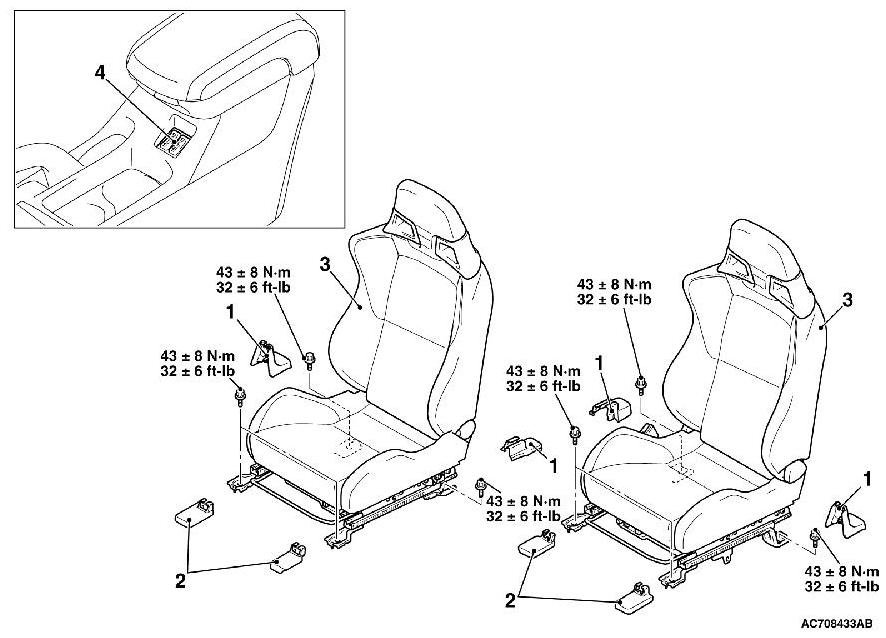

2. Tighten the bolts in all mounting locations to the specified torque.
