Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Overhaul >> Rear Seat Assembly Disassembly and Reassembly

Rear Seat Assembly Disassembly and Reassembly

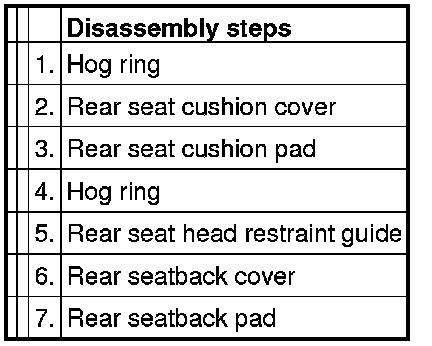

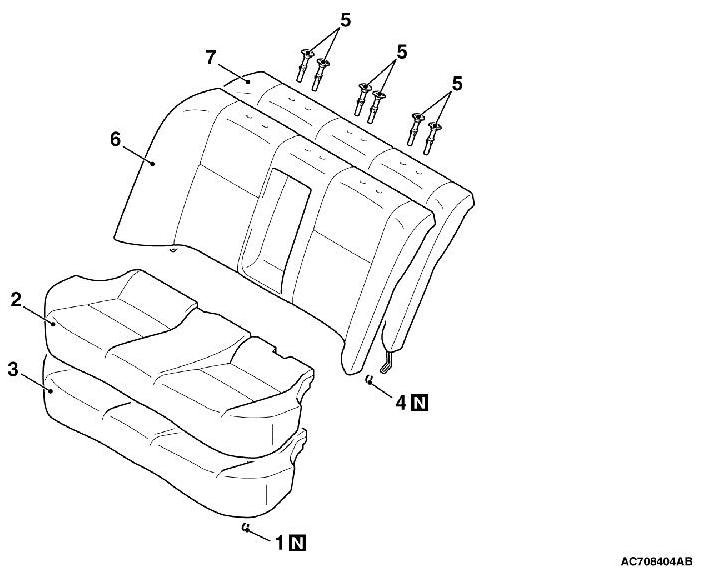

DISASSEMBLY AND ASSEMBLY
