Removal and Replacement

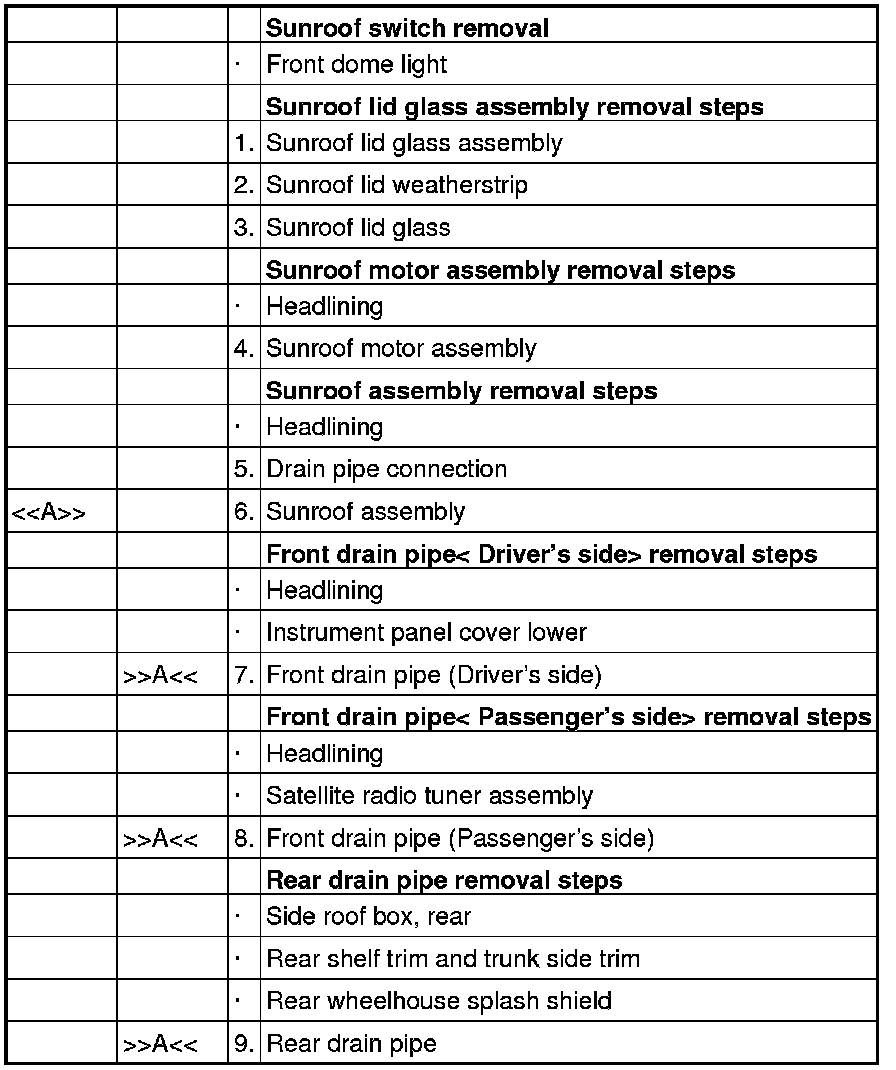

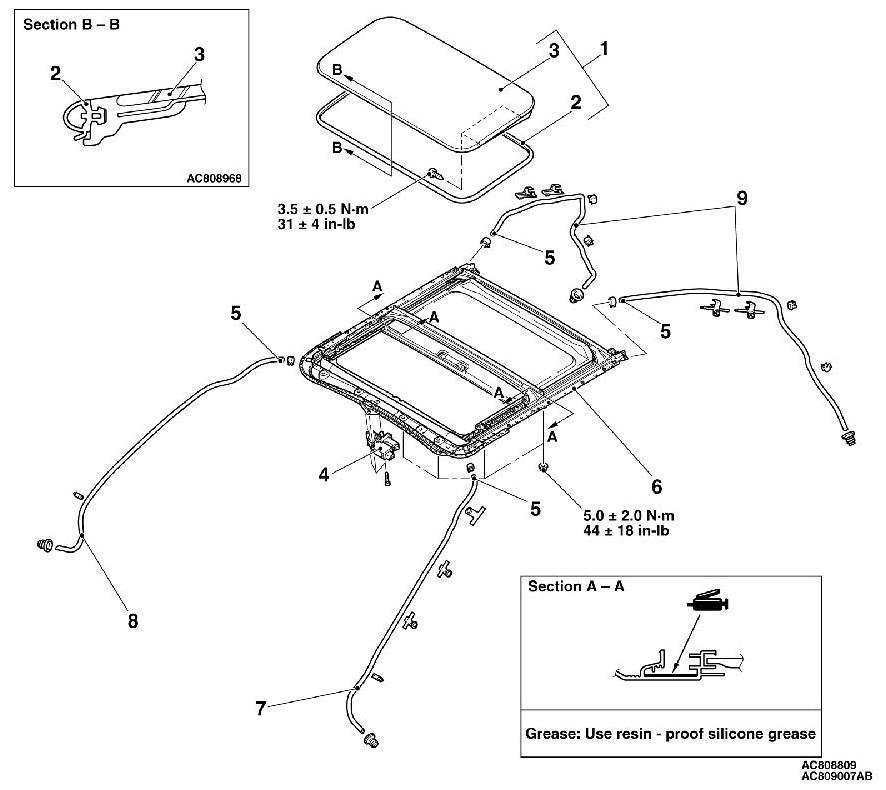

SUNROOF ASSEMBLY REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

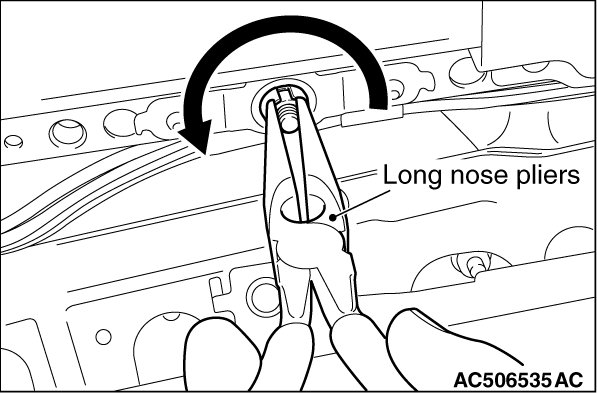

[[A]] SUNROOF ASSEMBLY REMOVAL





Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.

INSTALLATION SERVICE POINT

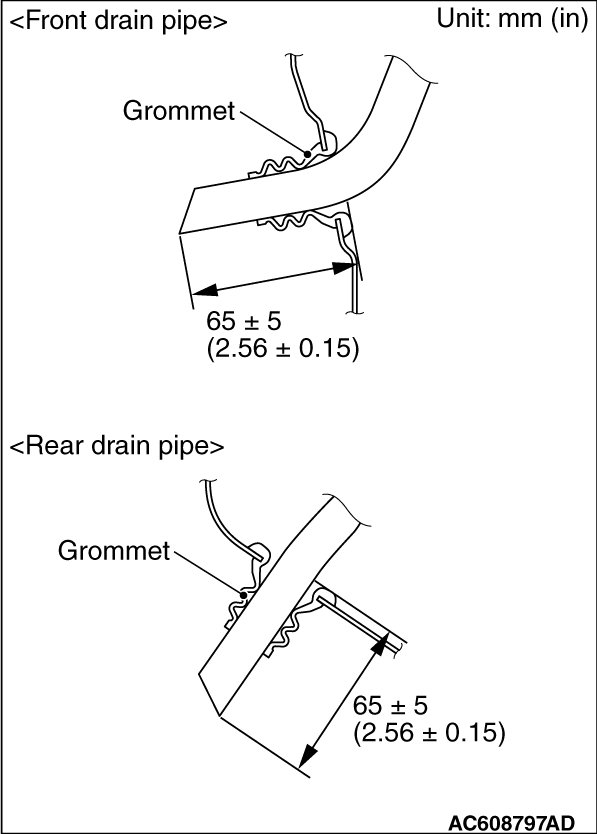

]]A[[ FRONT DRAIN PIPES/REAR DRAIN PIPES INSTALLATION





Install the grommet, and adjust the drain pipe projection as shown.
