Overhaul

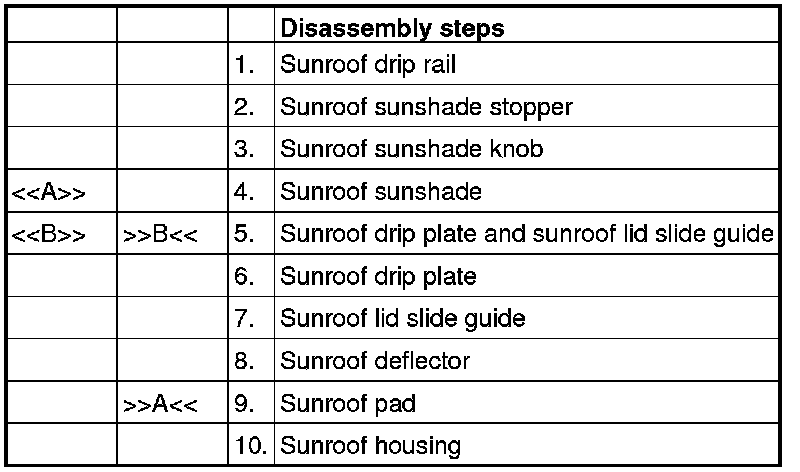

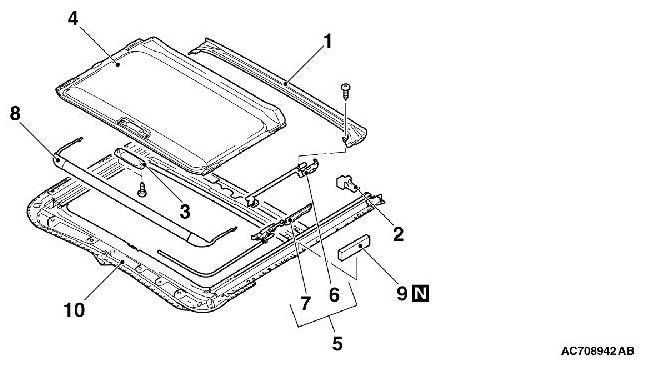

DISASSEMBLY AND ASSEMBLY









REMOVAL SERVICE POINTS

[[A]]
SUNROOF SUNSHADE REMOVAL





CAUTION:

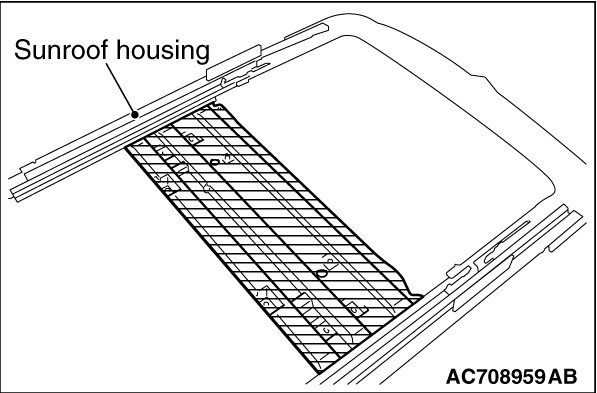

Before removing the sunroof sunshade, clean the shaded area of the sunroof housing shown in the illustration. Otherwise, the sunroof sunshade may get dirty when it is removed.

[[B]]
SUNROOF DRIP PLATE AND SUNROOF LID SLIDE GUIDE REMOVAL

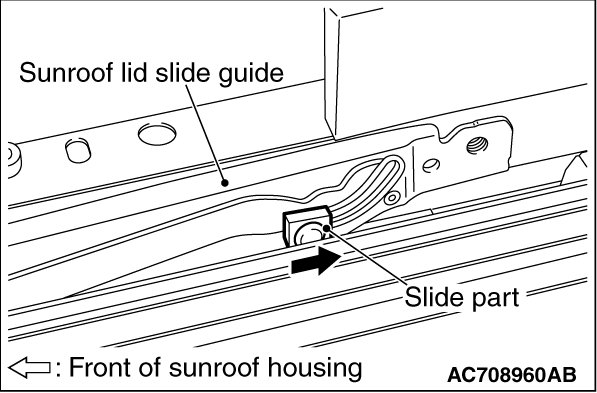

Slide the slide part of the sunroof lid slide guide to the rear of the sunroof housing, and then pull out the sunroof drip plate and sunroof lid slide guide.

INSTALLATION SERVICE POINTS

]]A[[
SUNROOF DRIP PLATE AND SUNROOF LID SLIDE GUIDE INSTALLATION

1. Install the sunroof drip plate and sunroof lid slide guide to the sunroof housing.

2. Push the sunroof drip plate and sunroof lid slide guide toward the front of sunroof housing until they stop.





3.
CAUTION:
If the slide part of the sunroof lid slide guide is positioned incorrectly, the sunroof may not work normally.

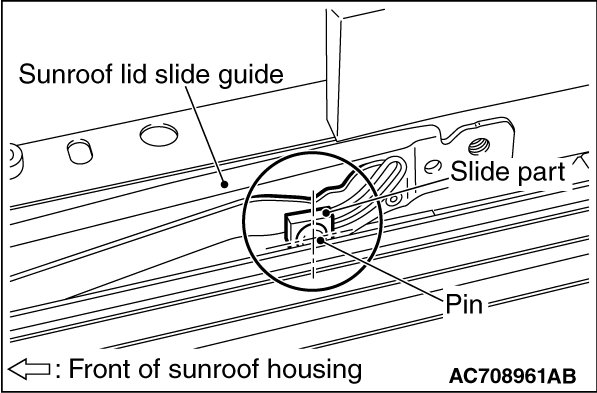

Push the slide part of the sunroof lid slide guide forward. Align the pin center of the slide part with the location shown in the illustration.

]]B[[
SUNROOF PAD INSTALLATION

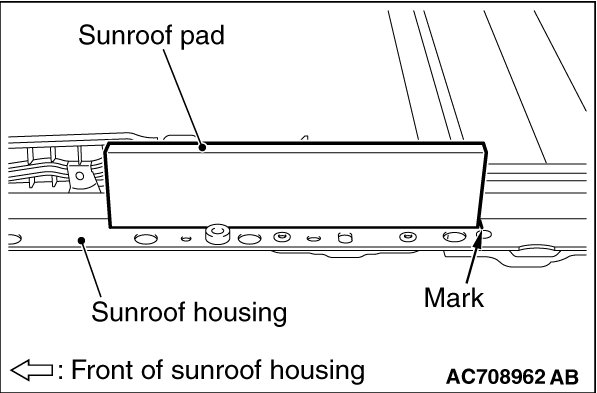

Align the sunroof pad with the mark on the sunroof housing, and then install it.
