Sunroof / Moonroof: Adjustments

SUNROOF FIT ADJUSTMENT

1. Fully close the sunroof lid glass.

2. Fully open the sunshade.

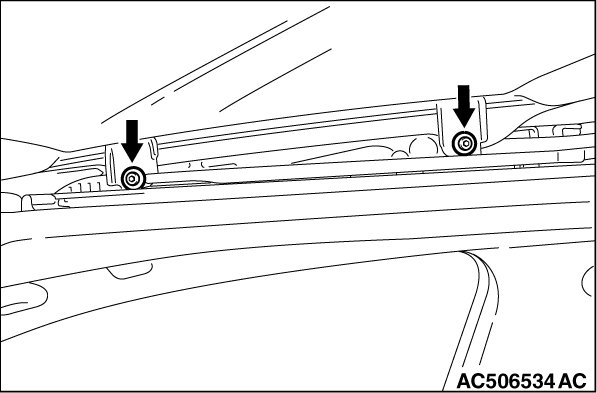

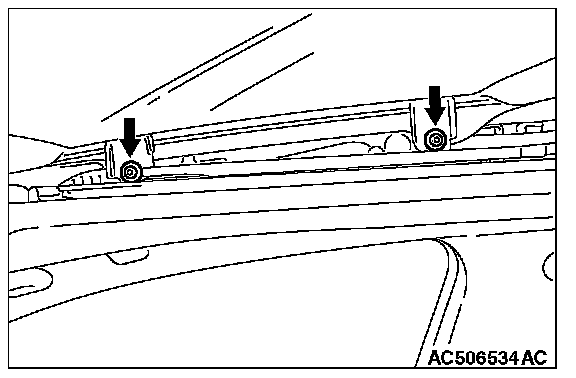

3. Loosen the sunroof lid glass assembly mounting screws. Adjust the sunroof lid glass height by moving the sunroof lid glass assembly along the sunroof lid guide oblong hole so that the clearance between the sunroof lid glass and the vehicle body is even throughout the circumference.
4. After adjustment, check that the sunroof operates smoothly.
