Without Automatic Anti-Dazzling Function




REMOVAL AND INSTALLATION

REMOVAL SERVICE POINT

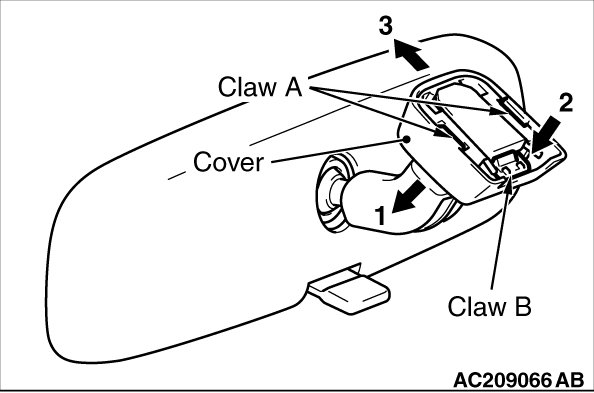

1. Disengage the claw A and lower the cover toward arrow 1 direction.
2. Push the claw B toward arrow 2 direction to unlock, and pull out the mirror toward arrow 3 direction.
