Home >> Mitsubishi >> 2012 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Service and Repair >> Interior Mirror >> With Automatic Anti-Dazzling Function

With Automatic Anti-Dazzling Function

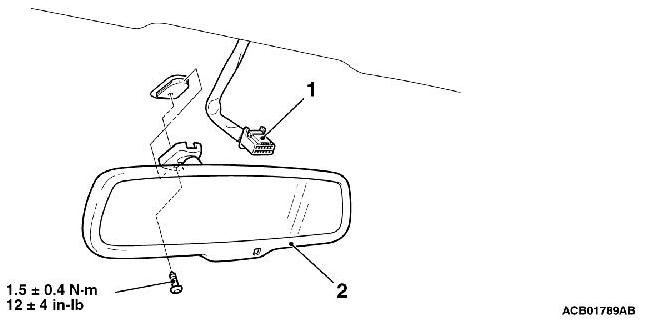

REMOVAL AND INSTALLATION

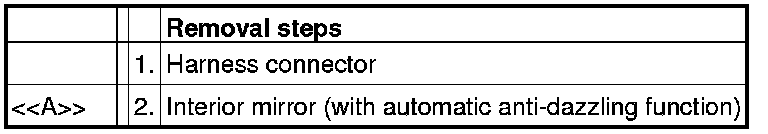

REMOVAL SERVICE POINT

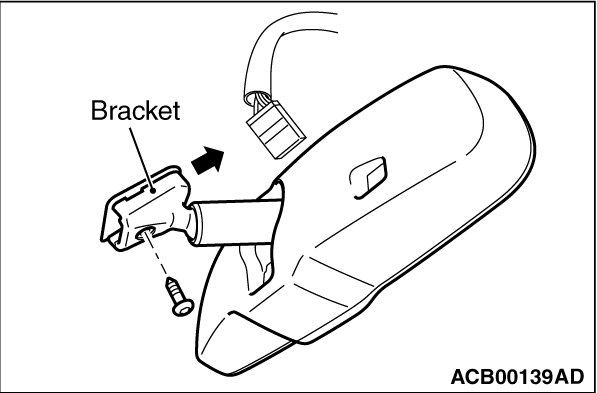

[[A]] INTERIOR MIRROR REMOVAL





1. Remove the bracket screw.
2. Slide the bracket upward to remove.
