Antenna - Keyless Entry: Service and Repair

REMOVAL AND INSTALLATION

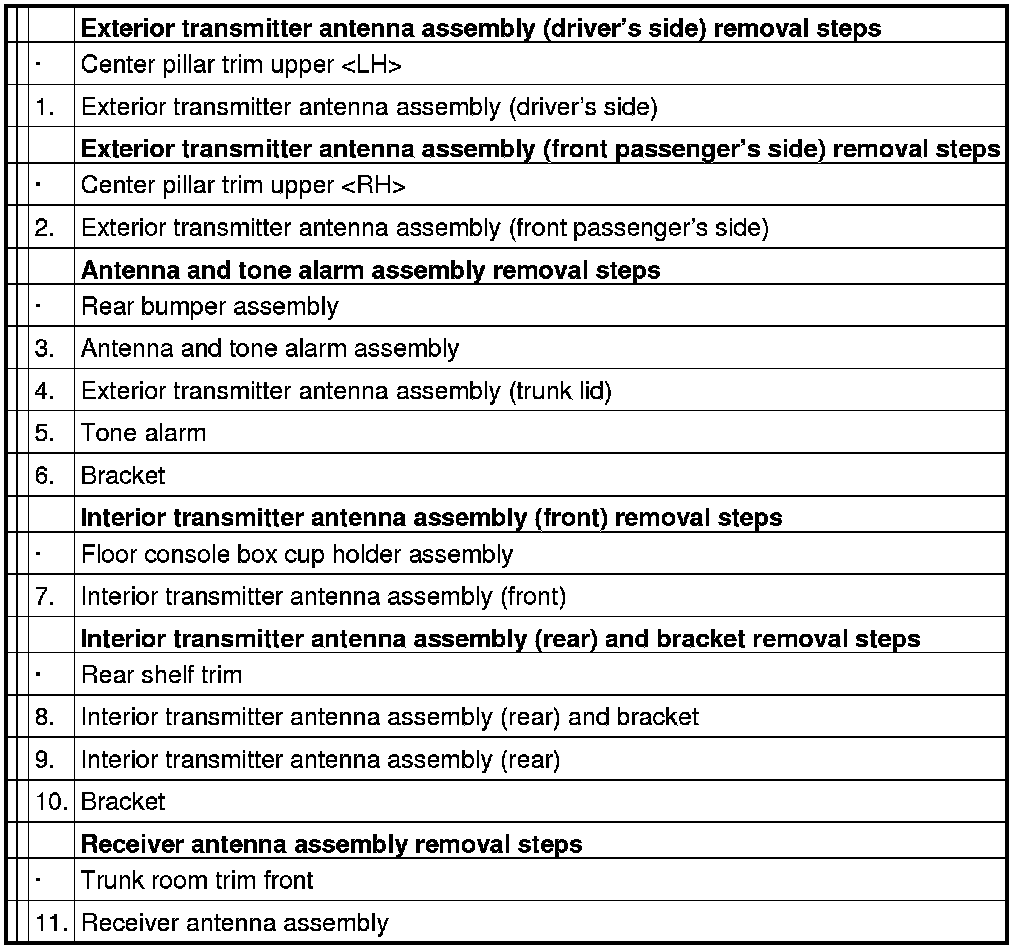

[EXTERIOR TRANSMITTER ANTENNA ASSEMBLY, INTERIOR TRANSMITTER ANTENNA ASSEMBLY AND TONE ALARM ASSEMBLY]

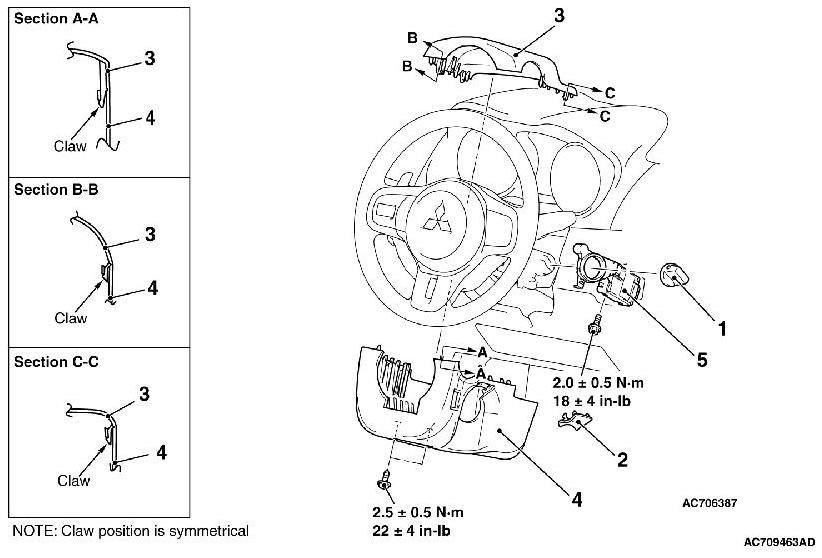

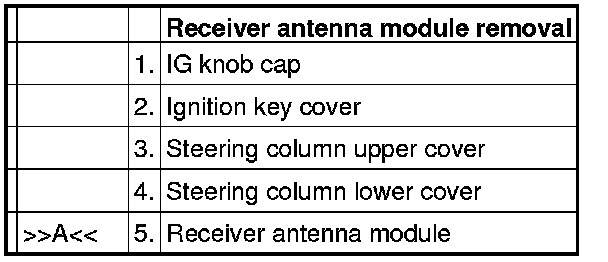

[RECEIVER ANTENNA MODULE]









INSTALLATION SERVICE POINT

]]A[[ RECEIVER ANTENNA MODULE INSTALLATION

Check that the top claw of receiver antenna module is fixed securely to the boss of steering lock and the antenna is not floated on the key cylinder.
