Interior Moulding / Trim: Service and Repair

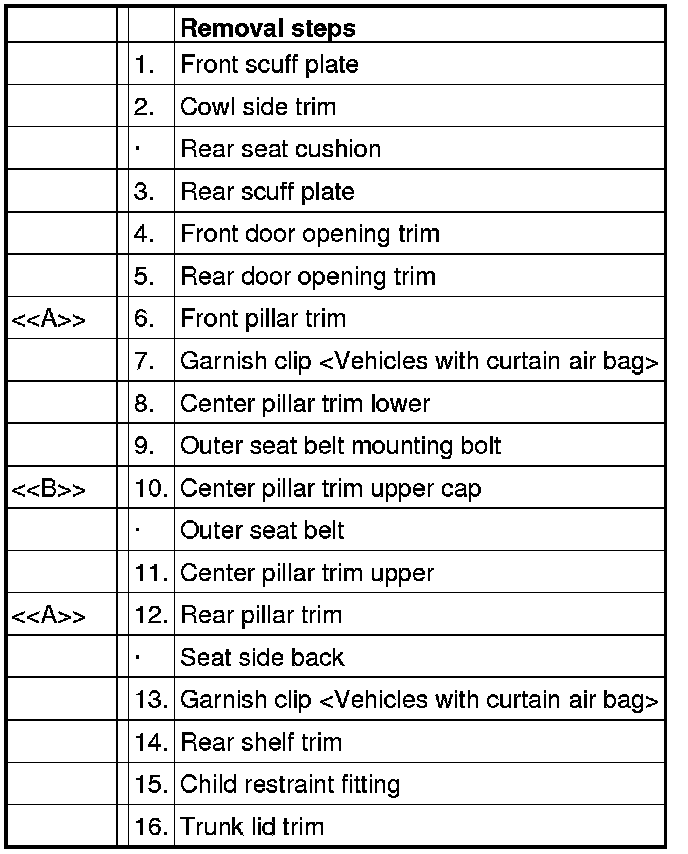

REMOVAL AND INSTALLATION









Required Special Tool:

- MB990784: Ornament Remover

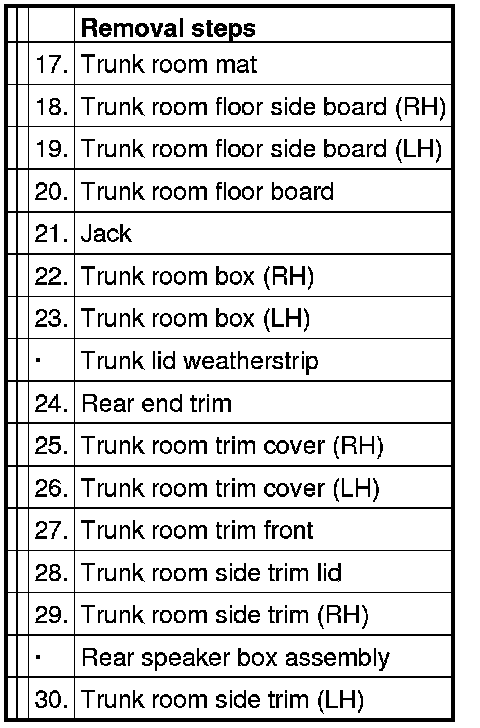

[TRUNK ROOM]

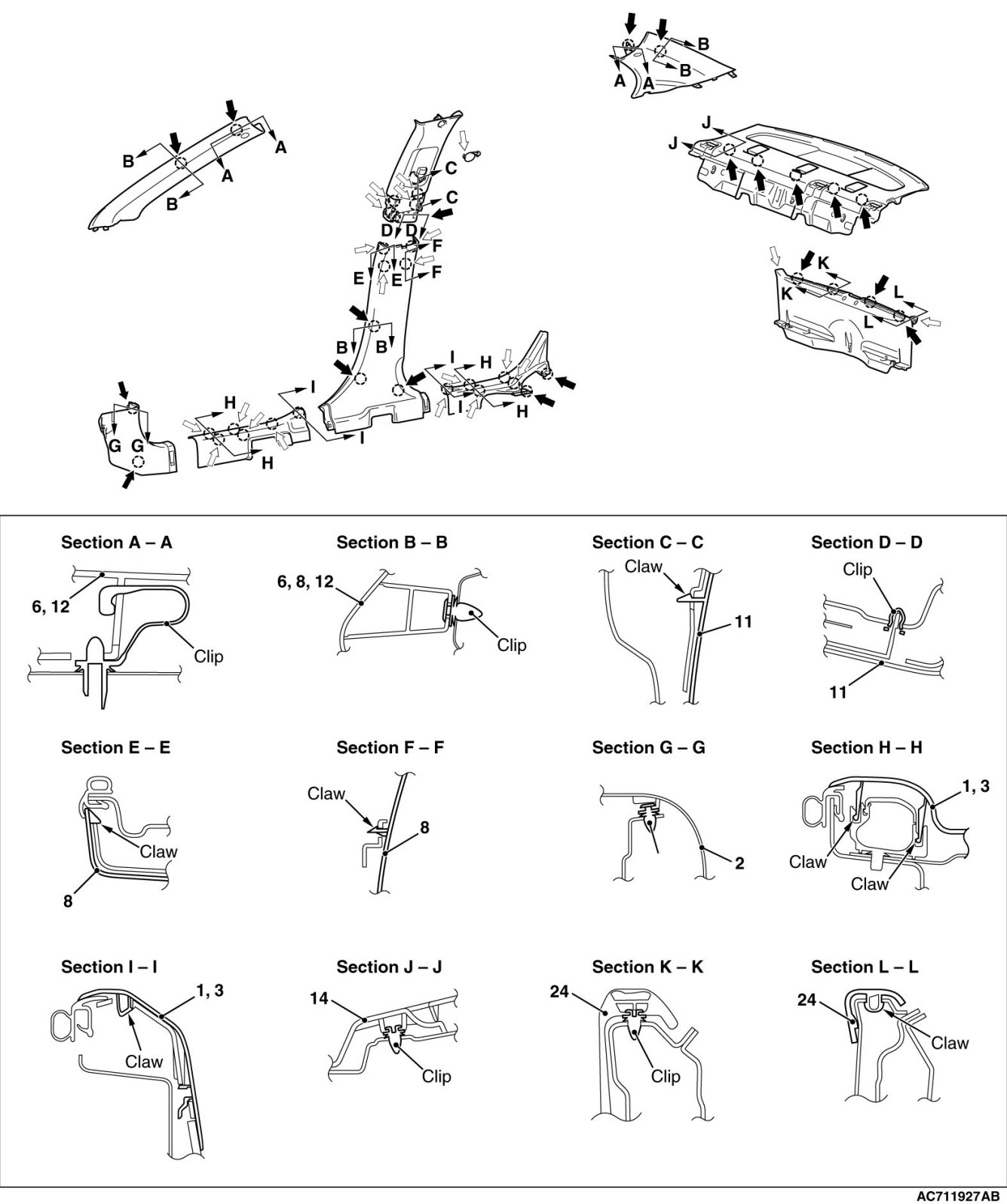

CLIP POSITION





NOTE:

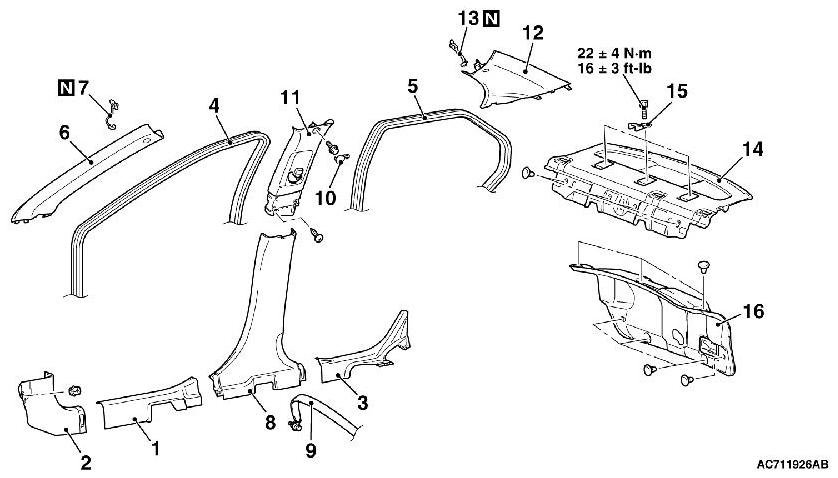

Each number in the illustration indicates a part number.

REMOVAL SERVICE POINTS

[[A]]FRONT/REAR PILLAR TRIM REMOVAL [VEHICLES WITH CURTAIN AIR BAG]

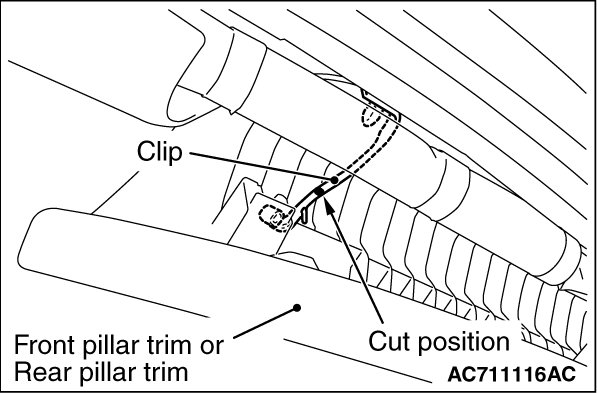

1. Pull down the front or rear pillar trim as shown in the figure.
2. Cut the clip at the cutting position shown in the figure, taking care not to damage the other components.
3. Remove the clip remaining on the front or rear pillar trim, taking care not to scratch the trim.
4. Remove the clip remaining on the vehicle side by breaking it to prevent damage to the flange of the clip mounting hole.

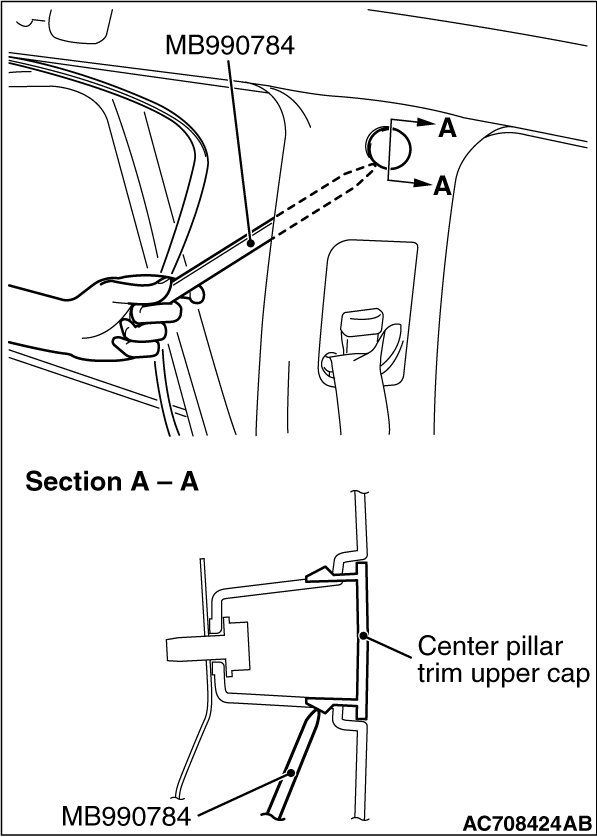

[[B]] CENTER PILLAR TRIM UPPER CAP REMOVAL





Remove the opening trim. Remove the center pillar trim upper cap by inserting the special tool MB990784 between the center pillar trim upper and body as shown in the illustration.
