Headliner: Service and Repair

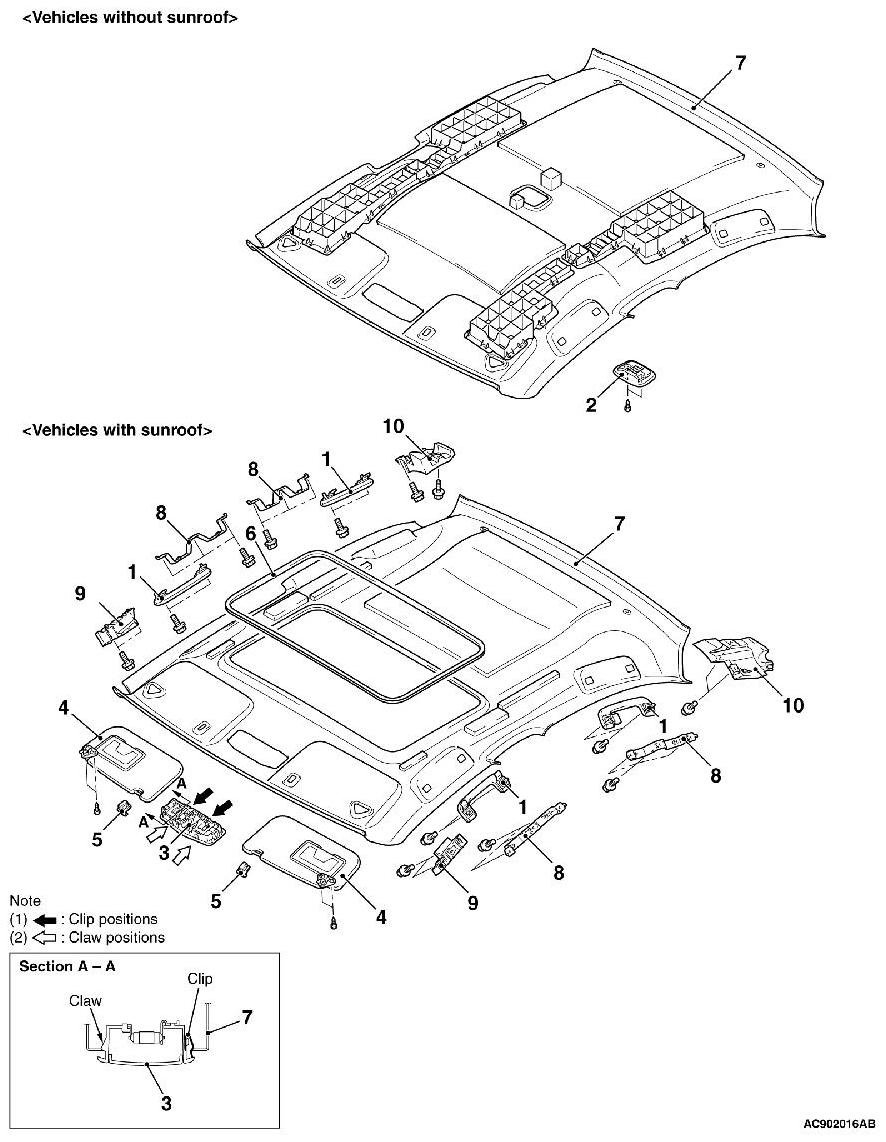

REMOVAL AND INSTALLATION













Required Special Tool:

- MB990784: Ornament Remover

REMOVAL SERVICE POINTS

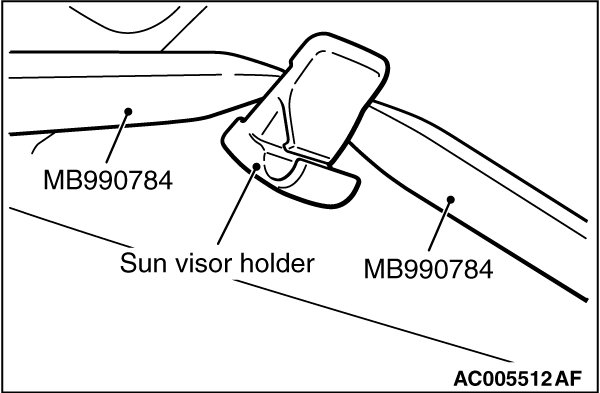

[[A]] SUN VISOR HOLDER REMOVAL





Insert the special tool MB990784 into side claws of the sun visor holder through the both sides of the sun visor holder to remove the hinges.

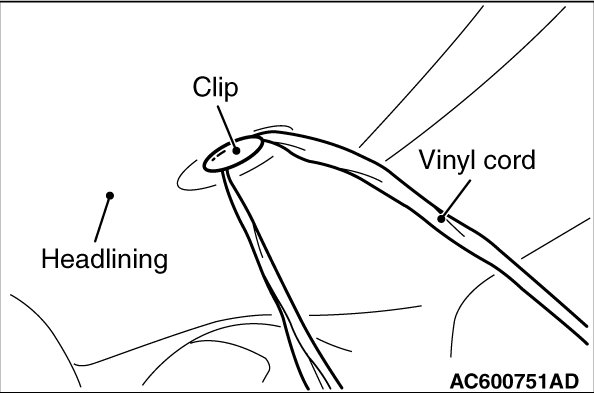

[[B]] HEADLINING ASSEMBLY REMOVAL





To remove the clip, insert a vinyl cord into a clearance between the clip and the headlining, and pass it around the clip. Then, pull out the clip downwards while pulling the vinyl cord.
