Front Roll Stopper and Center Member Removal and Installation

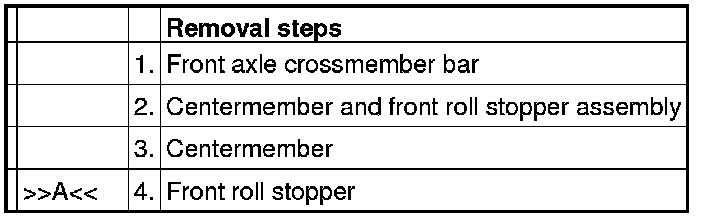

REMOVAL AND INSTALLATION

CAUTION:

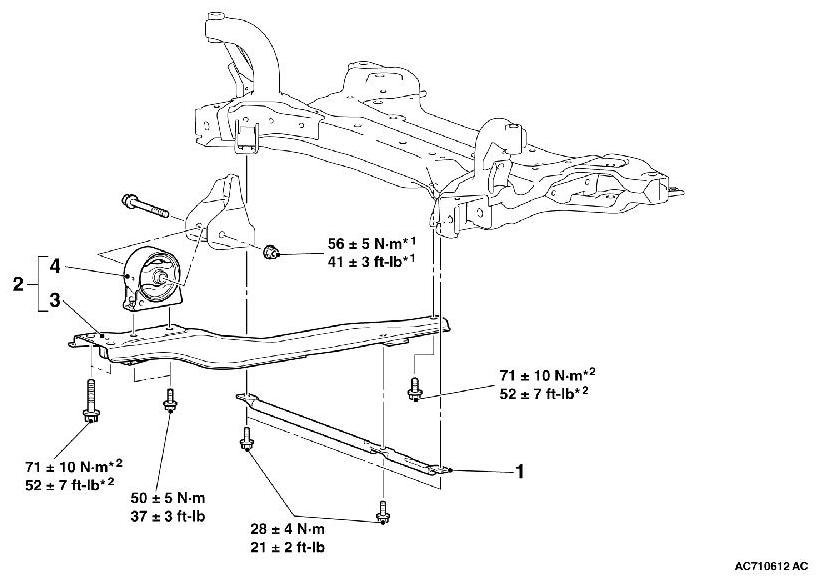

- When the engine mounting insulator, transaxle mounting insulator and rear roll stopper have been removed, tighten the engine mounting insulator, transaxle mounting insulator and rear roll stopper securely. Then, tighten the front roll stopper center nut *1 securely.
- The parts indicated by the *2 are the bolts with friction coefficient stabilizer. In removal, ensure there is no damage, clean dust and soiling from bearing and thread surfaces, and tighten them to the specified torque.













INSTALLATION SERVICE POINT

]]A[[ FRONT ROLL STOPPER INSTALLATION

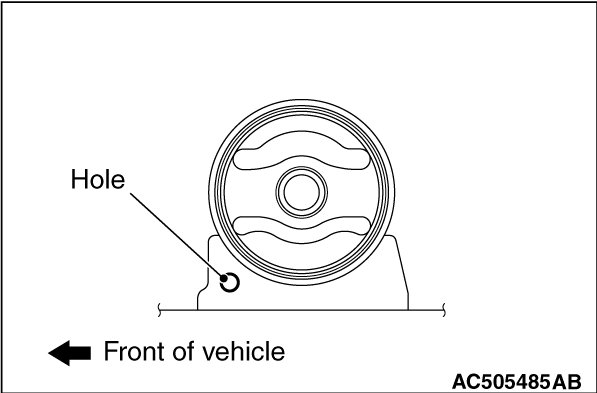

Install the front roll stopper so that the hole faces toward the vehicle front.
