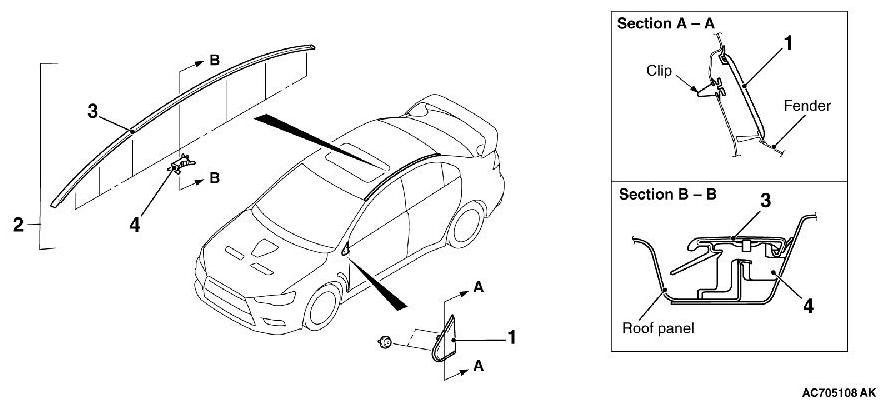

Exterior Moulding / Trim: Service and Repair

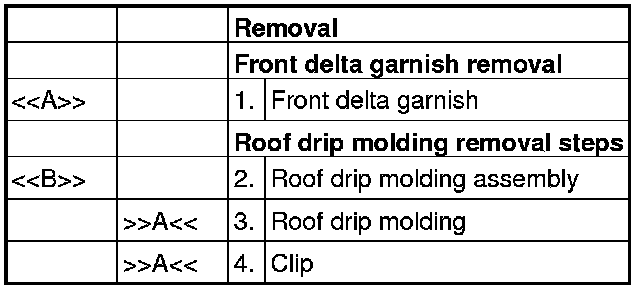

REMOVAL AND INSTALLATION









Required Special Tool:

- MB990784: Ornament remover

REMOVAL SERVICE POINTS

[[A]] FRONT DELTA GARNISH REMOVAL

Use the special tool ornament remover (MB990784) to pry out the front delta garnish.

[[B]] CLIPS/ ROOF DRIP MOLDING REMOVAL

CAUTION:
Remove the roof drip molding from front to rear or opposite direction in order.

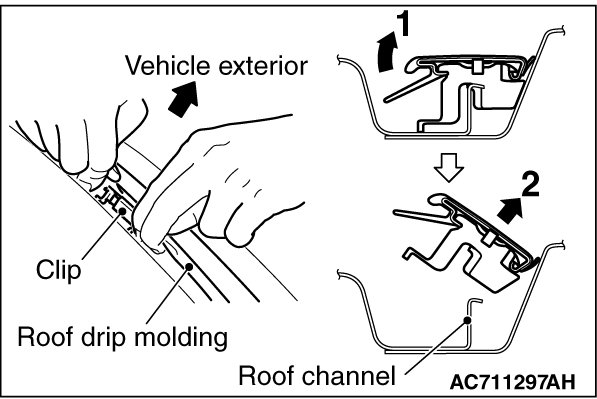

1. Pull up the roof drip molding inner side to remove the clips beneath it attached on the roof channel.
2. Rotate the roof drip molding together with clips toward vehicle exterior and remove them from roof channel.

INSTALLATION SERVICE POINT

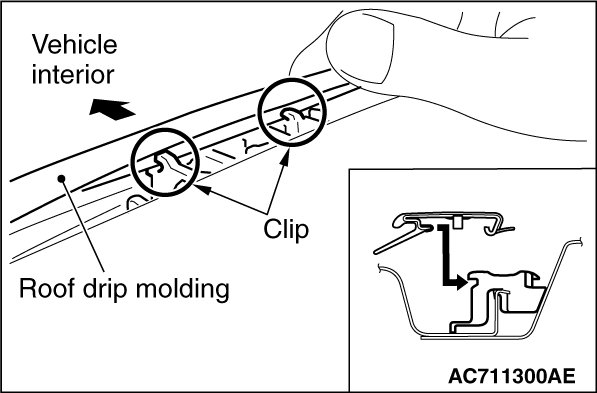

]]A[[ CLIPS/ ROOF DRIP MOLDING INSTALLATION

CAUTION:
Install the roof drip molding from front to rear or opposite direction in order.

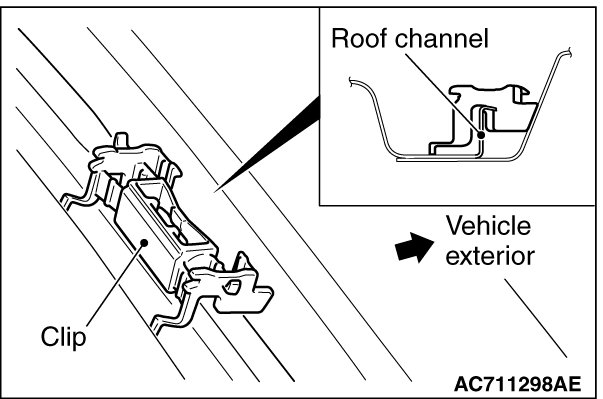

1. Remove the clips from the roof drip molding and attach them to the roof channel.





2. Engage the projected portion of the roof drip molding to the 2 recessed portions of each clip.
3. Push down the roof drip molding securely so that it is installed to the clips on the roof channel.
