ADJUSTMENT OF CLEARANCE AROUND TRUNK LID

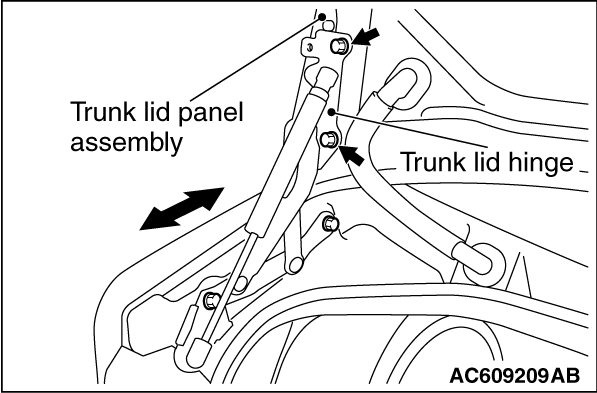

Loosen the trunk lid panel assembly mounting bolts and move the trunk lid panel assembly to make the clearance around the trunk lid uniform.
