Overhaul

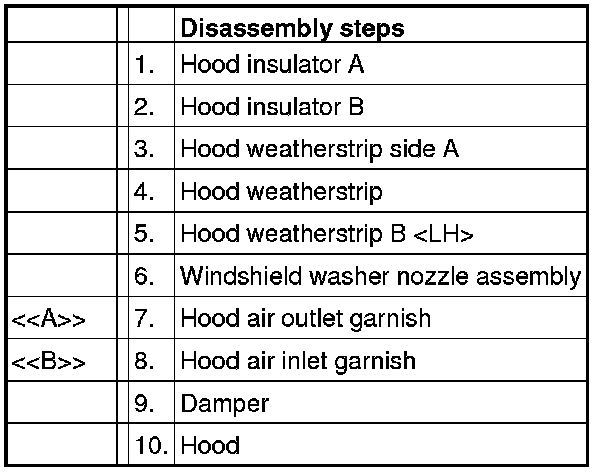

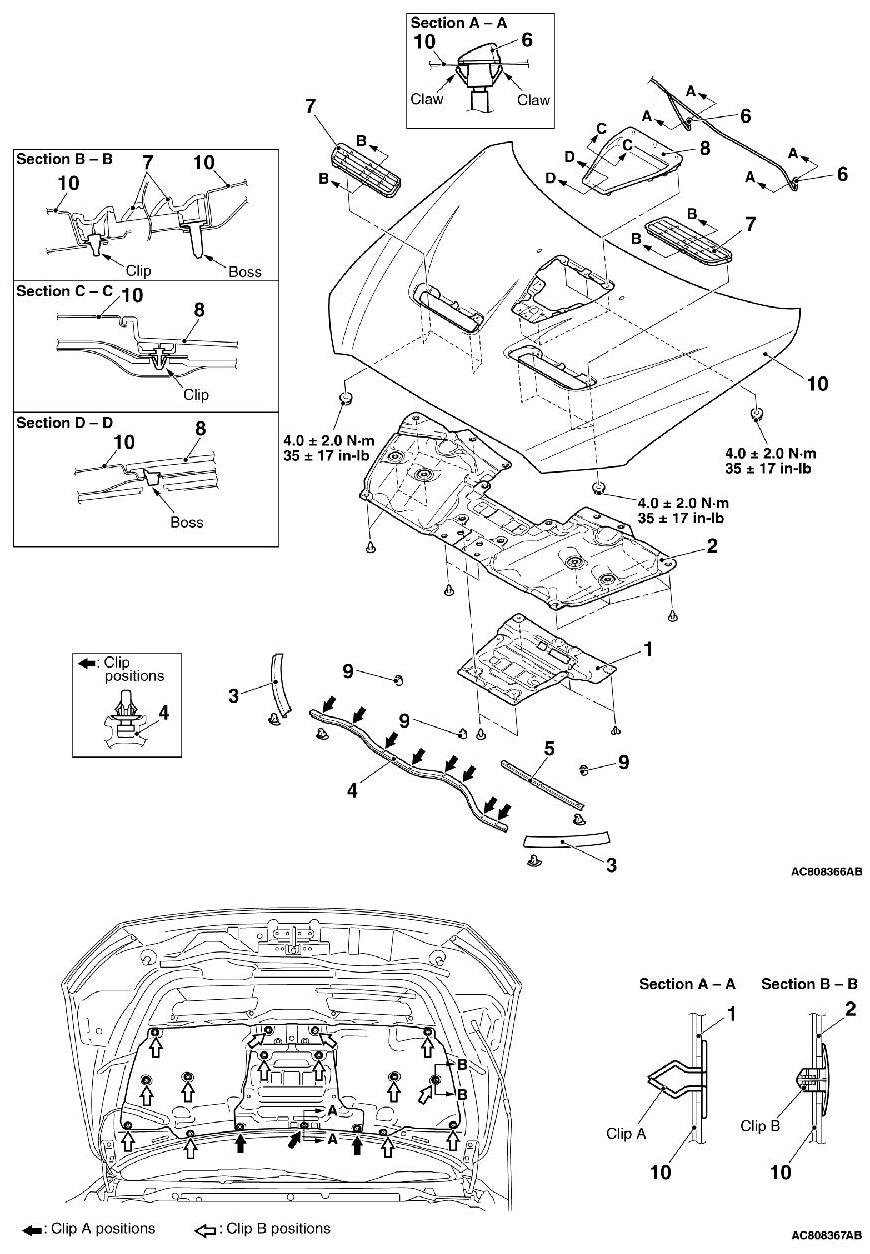

DISASSEMBLY AND ASSEMBLY









REMOVAL SERVICE POINTS

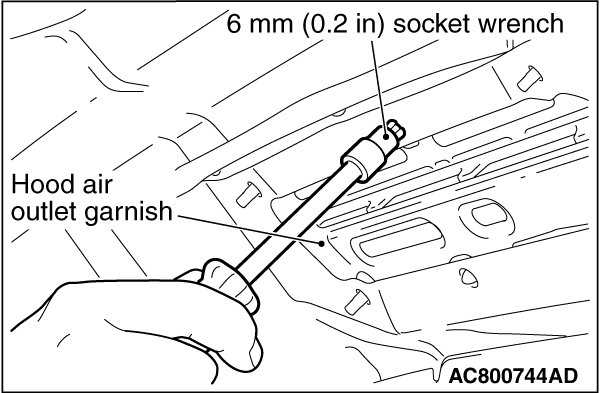

[[A]] HOOD AIR OUTLET GARNISH REMOVAL





Using 6 mm (0.2 in) socket wrench, push out the hood air outlet garnish assembling clips.

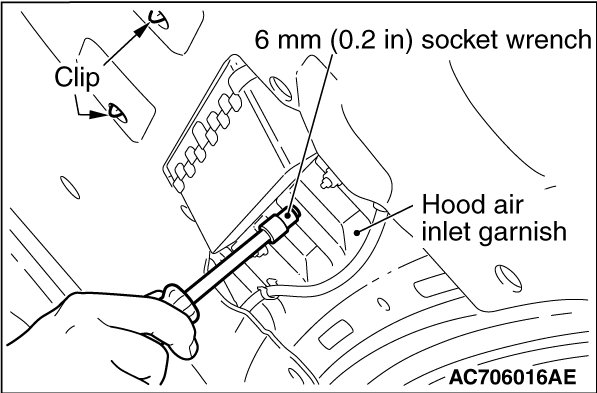

[[B]] HOOD AIR INLET GARNISH REMOVAL





Using 6 mm (0.2 in) socket wrench, push out the hood air inlet garnish assembling clips.
