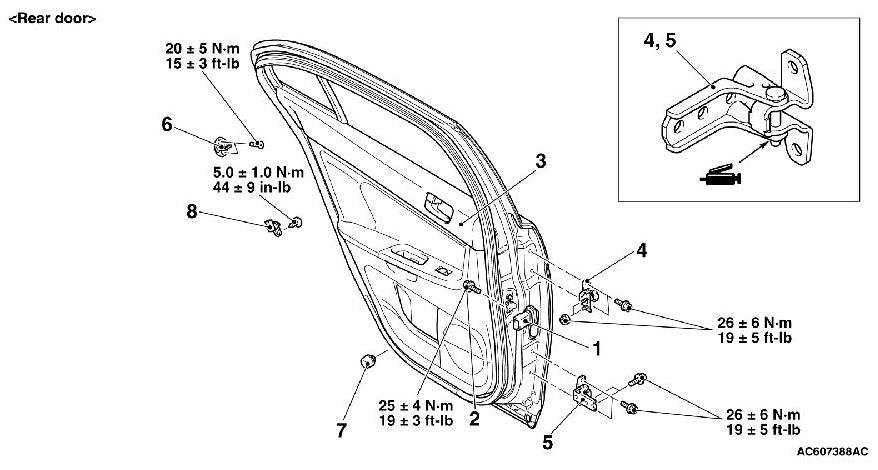

Rear Door: Service and Repair

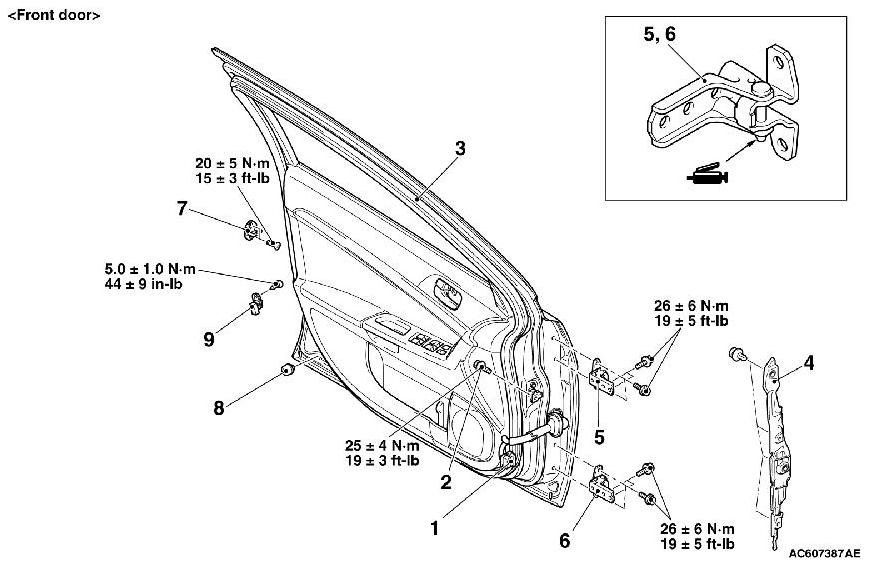

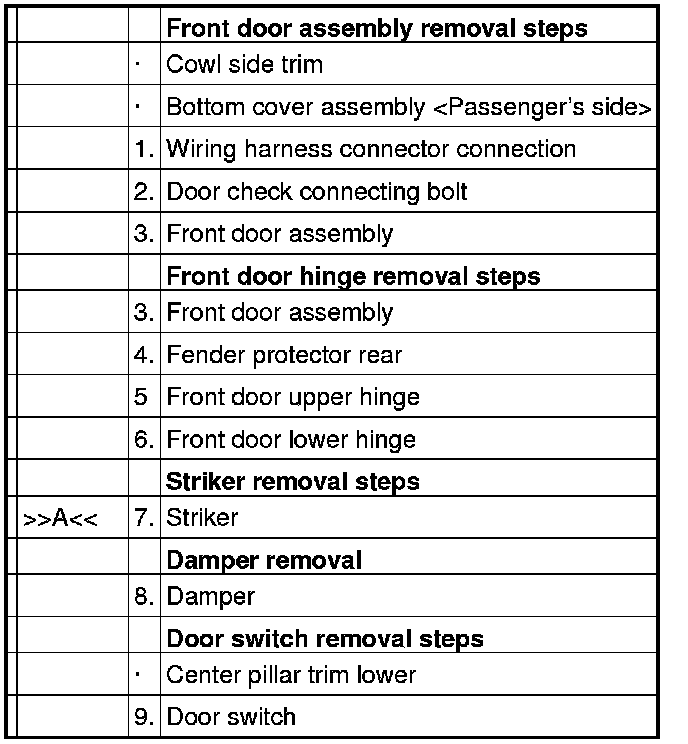

REMOVAL AND INSTALLATION





















INSTALLATION SERVICE POINT

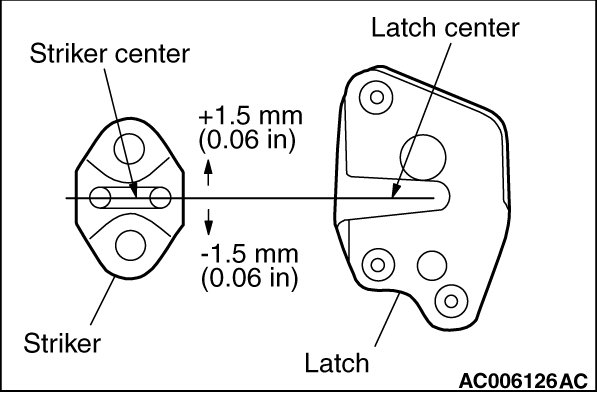

]]A[[ STRIKER INSTALLATION





Align the center of the striker and latch within ±1.5 mm (0.06 inch), and install.
